24V 60ah LiFePO4 Battery for Agv/Ess

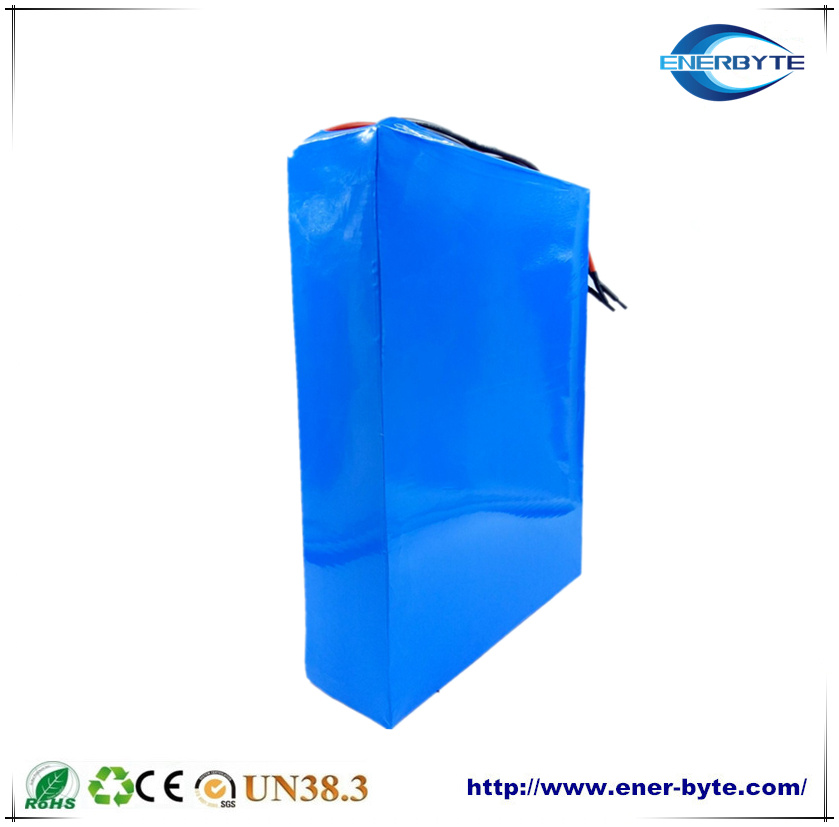

Name: 24V 60ah LiFePO4 Battery for Agv/Ess
Brand: all-electronics-online.com
SKU: 727918522
Availability: InStock
Rating: 4.9 (47 reviews)

Price:	US $ 2030-2100/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	24V 60Ah
Can-Bus:	Yes
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	Solar Energy Storage,UPS, Solar, E-Scooter
Electrolyte:	Li-on

Product Description

Tianjin Enerbyte Electronics Co., Ltd is a customer oriented company for manufacturing Lithium battery cells and also battery packs. With 8 years of manufacturing experience and a team of development and technical engineers, we have been exporting Lithium Batteries to 80 countries.
Our Lithium batteries are consisted of Lithium ion batteries, LiFePO4 batteries, 18650 and 26650 and also Prismatic battery cells with highest up to 200Ah single cell.

/Model		ENBY-24V/60Ah
/Capacity(0.2C5A)		60Ah
/Nominal Voltage		24V
/Max. Charge Voltage		29.2V
/Discharge Cut-off Voltage		20V (recommended)
/Max. Charge Current		60A
/Continuous Discharge current		60A
/Max.Discharge current		180A 3Seconds
/Weight (Approx.)		18.35Kgs
/Battery Dimensions		388x290x110mm(LXWXH)
/Impedance (Max, at 1000Hz)		Single cell 26650 ≤40mΩ
/Cycle Life(80DOD%)		>2000 Times
/Self-discharge Rate		≤3%(month)
/Charge Method(CC/CV)	/Standard	10A×6hrs
	/Quick	60A×1hrs
/Operating Temperature	/ Charge	0ºC~45ºC;32oF~113oF
	/Discharge	-20ºC~60ºC;-4oF~149oF
	/Storage	-20ºC~45ºC;-4oF~113oF

This battery pack is best for replacement of sealed lead acid batteries. Best applications are for energy storage applications. Custom made battery packs are available.
Characteristics and functions
1. It has the automatic communication with solar inverter, battery pack can charge and discharge automatically.
2. It has equalization function and PC CAN-BUS software and LCD display screen function, we can check the situation of battery pack and each battery cell.
3. It has the temperature monitor sensors, the battery pack will shut off if there is 6ºC temperature difference.
4. The battery pack can aromatically SOC calculate and check how much capacity left.
5. There are also double 5V 2A USB ports for charging electrical tools, such as mobile phones, iPad, etc.
6. The BMS supports continuous discharge current 100A and peak 150A in 3 seconds.

7. The BMS includes the electric relay which can support high current charge and discharge.

Picture of three units of 48V 100AH communicating with PC computer and datalog
