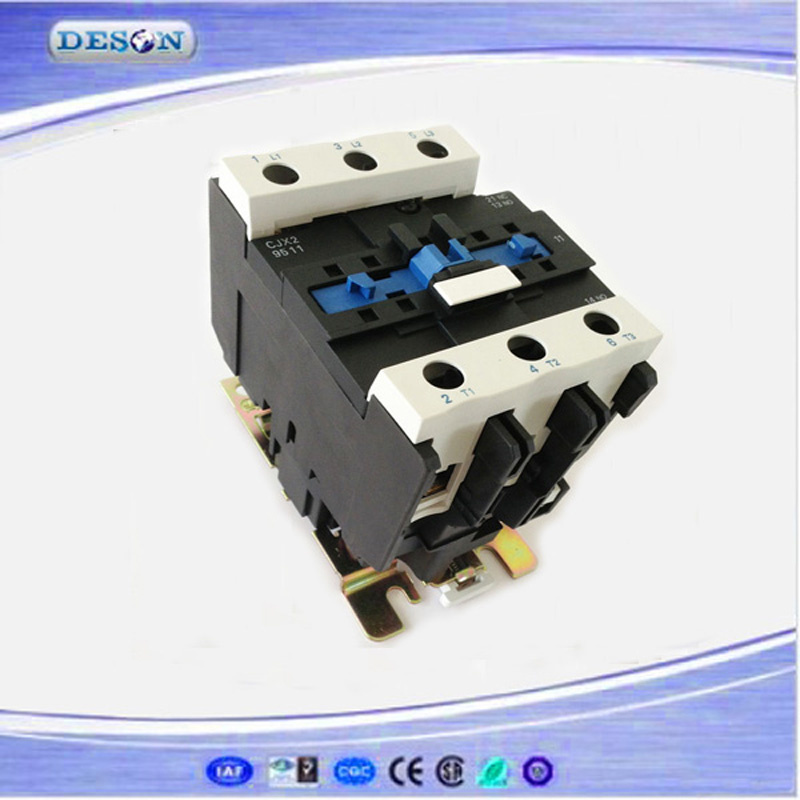

24V-660V 50Hz/60Hz 95A Electrical AC Contactor

Prod Model:	CJX2-95
Coil Voltage:	24V, 32V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 48
Current:	95A
Frequency:	50/60Hz
Numbers Of Pole:	3p, 4p
Rated Wokring Voltage:	380V, 660V

Product Description

24V-660V 50/60Hz 95A Electrical AC Contactor

         The CJX2 Series AC Contactor is mainly used in a circuit of AC 50Hz or 60Hz , rated working voltage up to 660V and rated working current up to 95A under application class of AC-3. It is used to remotely make and break the circuit. Connected with a proper thermal relay, it can form an electromagnet starter to protect a circuit in which overload running may occur, and to be used for frequent start and control of an AC motor.



Type		CJX2-09	CJX2-12	CJX2-18	CJX2-25	CJX2-32	CJX2-40	CJX2-50	CJX2-65	CJX2-80	CJX2-95
Rated workingcurrent (A)	AC3	9	12	18	25	32	40	50	65	80	95
	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standardpower ratingsof 3-phasemotors50/60Hz incategory AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO or NC					3P+NC+NO
