24V 6A Lead Acid Battery Charger Desktop Charger

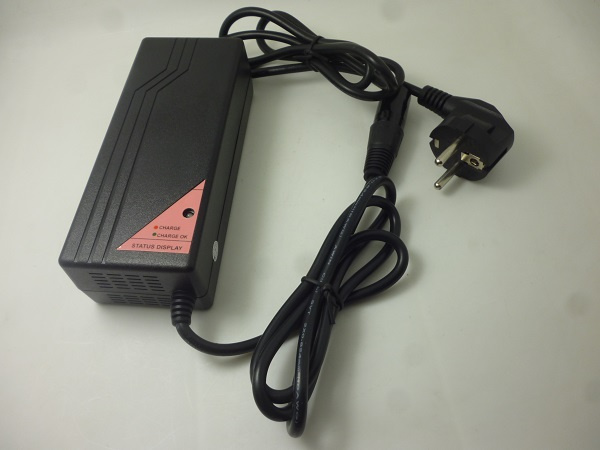

Name: 24V 6A Lead Acid Battery Charger Desktop Charger
Brand: all-electronics-online.com
SKU: 638265925
Availability: InStock
Rating: 4.6 (40 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW240-060-S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Type:	Lead Acid Battery
Desktop Type:	Yes
Warranty:	One Year
Delivery Date:	15days
Type:	Lead-Acid Battery Charger
Charging Type:	Electric Charger
Principle:	Single-Shock Charger

Product Description

24V 6A Lead Acid Battery Charger desktop charger

. HIGH FREQUENCY DESIGN, LESS POWER CONSUMPTION
. OVER VOLTAGE PROTECTION, SHORT CIRCU ITED PROTECTION, OVER POWER PROTECTION
Certificate: CE, LVD

Output:	24V 6A
Input:	180-240V or 90-130V
Leak current:	<10MA
Suitbale battery	24V/48Ah
Efficiency:	>75%

Product description:

Input:100-240VAC

Output: 12V15A 24V6A 36V4A 48V4A

Input plug(power cords):EU US UK AUS KOREA JAPAN(power cable)

Output connector: DC JACK,JST,XLR,Cigar Lighter,Alligator Clips,Viation plug.etc

Charge mode:CC---CV---Float Mode(pulse charge mode)

Safe Protection:Over-load protection,Over-current protection,Short circuit protection,

Polarity Reverse Protection

Safe Certificate: CE

Efficiency:>80%

Power Consumption:≤0.5W at Rated Voltage(adapter at no load)

Ripple And Noise:Output voltage 1%, Ripple&Noise≤120mv

High-Voltage test:Primary to secondary: 3 kV / 5mA 60S

Leakage Current:0.5mA(max) at input 240V AC

Drop Test:0.75m drop test, 6 times

Burn-In Test :100% load, 5hours

MTBF:50,000 hours@ 25ºC

Application: UPS, E-bike, Motor, Solar systems, Torch, Lamps.etc.

Lead time:12-15days after all confirmation
Dimension: 148x90x82mm
