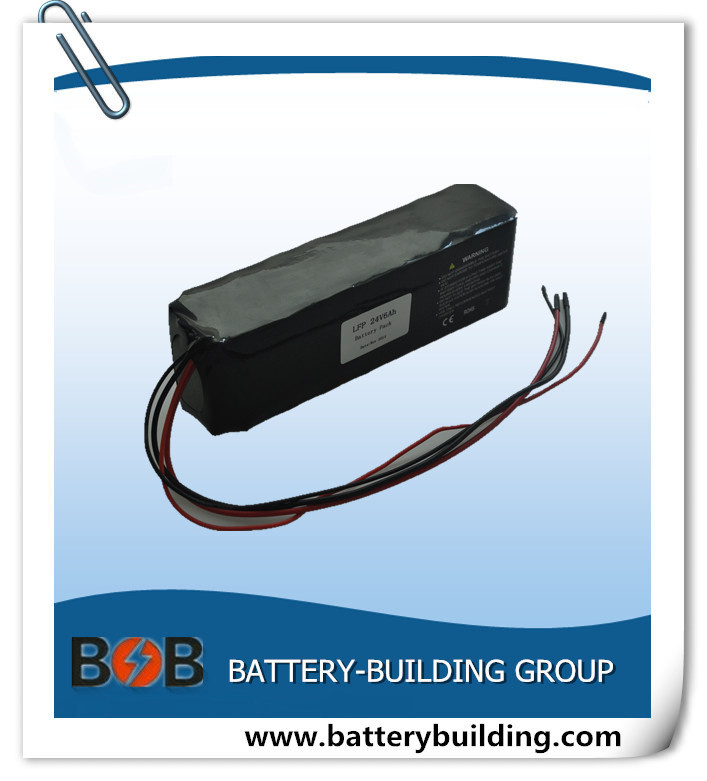

24V 6ah LiFePO4 Battery Pack

Prod Model:	BB-EB2406S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure:	Ifr26650 3000mAh 8s2p
Application:	E-Bike, E-Scooter
Working Current:	10A
Certificate:	CE, RoHS
Connection Mode:	Series and Parallel
Type:	LiFePO4
Standard Voltage:	24V
Usage:	E-Bike
Electrolyte:	LiFePO4

Product Description

24V 6AH lifepo4 battery pack

24V Battery Pack Specification
1. Nominal voltage:24Volts.
2. Rated capacity:6Ah.(Min)
3. Dimension: customized
4. Operating temperature:- 20 °C to 60 °C
5. Charge temperature: 0 °C to 45 °C
6. Storage temperature: -20 °C to 45 °C
7.Operating humidity:5% to 90%
8.Continuous discharge current:10A
9.Instantaneous maximum current:20A
10.Cut-off voltage:20-21V(Discharge protection voltage)
11..Charging voltage:29.2V(Full voltage)
12.Combination:8S2P
13.Cycle life:The cycle life can reach 2000 times with 80% DOD at recommended charge and discharge under 25ºC temperature

Application:
·Electric Vehicles, such as E-bike, E-scooters, E-cars, E-bus;
·Electric boats, such as trolling fishing boat;
·Robots for industries and military;
·Remote data transfer system;
·Satellite communication station;
·Un-manned submarine;
·Un-manned aircrafts;
·Power tools, such as drilling, cutting and polishing tools;
·Power station for low temperature application, such as -40;
·Power supplier for Training systems, such as Torpedo Trainer

Advantages:
·Fast charging
·Large overcharge tolerance and safe performance
·Self balance
·Simplifying battery management system (BMS) and battery charger
·Longer cycle life; It extends its cycle life up to 2000cycles
·High temperature performance

We supply batteries types such as bottle battery, rear rack battery, silver battery, frog battery, Qingtian battery, 24/36/48V normal series, we also accept customized battery packs, domestic cell or imported cells are all available. If you are interested, welcome to send your inquiry.

Key Application
Widely applied in  Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.

Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.

Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.

Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.

Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours.

More models:

Model	Style	Material	Voltage	Capacity	Dimension	Weight	Charger
					Include BMS and housing
			(V)	(Ah)	L*W*K  (mm)	(kg)	(A)
BBG-SF-LFP2408	Silver fish	LiFePO4	24	8	75*110*378	4	2
BBG-SF-LFP24081	Silver fish	LiFePO4	24	8	89*89*401	4	2
BBG-SF-LN2410	Silver fish	LNCM	24	10	89*89*401	3.5	2
BBG-RR-LFP2408	Rear rack	LiFePO4	24	8	70*150*245	4	2
BBG-RR-LN2410	Rear rack	LNCM	24	10	70*150*246	3.5	2
BBG-SF-LFP2410	Silver fish	LiFePO4	24	10	75*110*378	4.2	2
BBG-LF-LFP2410	Frog	LiFePO4	24	10	80*150*180	4.2	2
BBG-RR-LFP2410	Rear rack	LiFePO4	24	10	70*150*245	4.2	2
BBG-WB-LFP2410	water bottle	LiFePO4	24	10	91*91*410	4.5	2
BBG-SF-LFP2420	Silver fish	LiFePO4	24	20	135.5*88.8*395	6	5
BBG-SF-LFP3608	Silver fish	LiFePO4	36	8	75*110*385	4.2	2
BBG-RR-LFP3608	Rear rack	LiFePO4	36	8	70*150*365	4.2	2
BBG-LF-LFP3606	Frog	LiFePO4	36	6	80*150*180	4	2
BBG-SF-LFP3610	Silver fish	LiFePO4	36	10	75*110*385	4.5	2
BBG-RR-LFP3610	Rear rack	LiFePO4	36	10	70*150*365	4.5	2
BBG-WB-LN3610	water bottle	LNCM	36	10	91*91*435	4	2
BBG-FB-LN3610	Frog	LNCM	36	10	80*150*180	4	2
BBG-RR-LFP3612	Rear rack	LiFePO4	36	12	69*150*480	4.5	2
BBG-SF-LFP3612	Silver fish	LNCM	36	12	89*85*385	4.5	2
BBG-RR-LN3614	Rear rack	LiFePO4	36	14	68*148*385	5.5	3
BBG--RR-LFP4810	Rear rack	LiFePO4	48	10	68*150*480	7	2
BBG-LFP4820	Epoxy board & PVC packaged	LiFePO4	48	20	320*140*150	14.5	4
