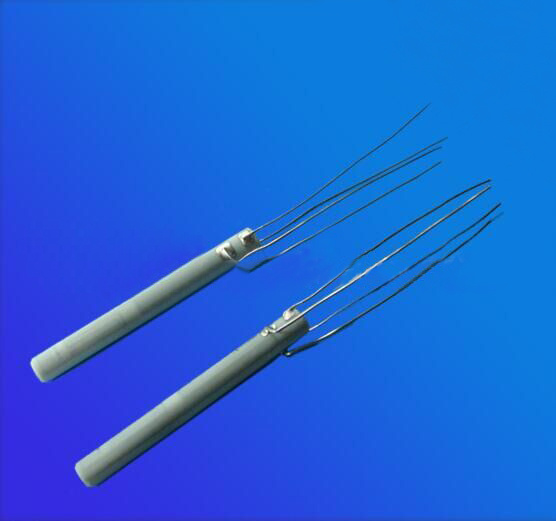

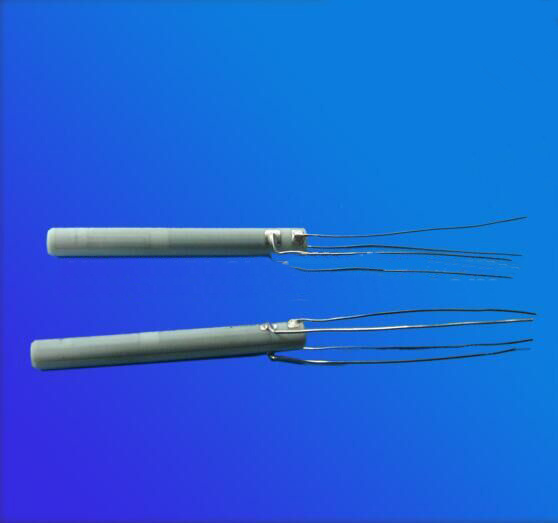

24V 90W Mch Heating Element for Soldering Station

24V 90W Mch Heating Element for Soldering Station
Price: US $ 1.5-3/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: YF454
Type.: Resistance Heater
Leads: 4 Leads
Place Of Origin: Fujian,China
Reference Power.: 90W
Voltage: 24V
Length*Od: 60mm*6.0mm
Use: Soldering Station
MOQ: 100

Product Description



Specifications


1.for soldering station
2. 24V/90W
3.Factory price
4.3-25 days lead time
5.Meet Rohs


Product Description

1

Part No.

YF454

2

Usage

MCH Heating Element  for soldering station

3

Working Voltage

24 VAC

4

Heating Resistance

1.75Ω(23°C±2°C)

5

Dimension of product

length:60mm, diameter 6.0mm

6

Electrode

Welding four nickel wires on  electrode

7

Advantages

(1)Long lifetime: airproof structure ; the condition of deformation  can't exit

(2)Temperature rise quickly

(3)Excellent insulation

(4)Energy efficient and thermalconductivitysuper-heating simultaneously both from inside and outside

(5)Small and compact

(6)Equalized heat distribution and high power density.

(7)Meet RoHS requirement

(8)High cost performance.

Packaging & Shipping
