24V Bottle Battery Pack for E-Bike

Prod Model:	BB-EB24/10B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure:	26f 7s4p
Continuous Discharge Current:	10-15A
Motor Available:	250W
Certificate:	CE, RoHS
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Standard Voltage:	24V
Usage:	E-Bike
Electrolyte:	Li-ion

Product Description

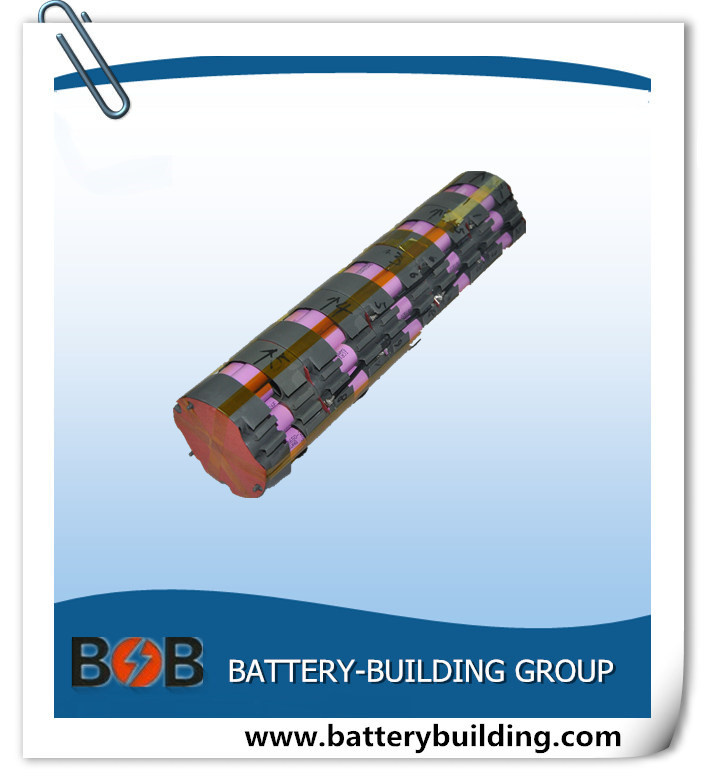

24v bottle battery pack for e-bike

Features

1. 24V10 bottle battery
2. for Samsung 26F 7S4P
3. electric bicycle battery
4. High density

5.stable working voltage
6.long cycle life
7.Light weight

Specification

Item		Parameters	Remark
Typical Capacity		10.0Ah	25ºC,1 C5A discharge
Nominal Voltage		24.0V	25ºC,Average Voltage at 0.2 C5A discharge
Charge input voltage		110-240V AC	Wide voltage
Charge current		2A	Working temperature:0~35ºC
Charge cut-off voltage		29.4V	CC/CV
Charge time		2-5h
Working current		15A
Peak Working Current(2S)		30A	Working temperature:0~35ºC
Over charge protection		4.2±0.05V	Single cell
Over discharge protection		2.75±0.05V	Single cell
Dimension		customized
Weight		about 2.58kg
Storage temperature		≤3month	Best 20±5ºC for long-time storage
Storage humidity	≤3month	0~30ºC	Best storage temperature:20±5ºC Charge battery  every 3 month
	≤6month	20±5ºC
	65±20%RH	20±5ºC

We supply batteries types such as bottle battery, rear rack battery, silver battery, frog battery, Qingtian battery, 24/36/48V normal series, we also accept customized battery packs, domestic cell or imported cells are all available. If you are interested, welcome to send your inquiry.



Key Application
Widely applied in  Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.

Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.

Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.

Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.

Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours.
