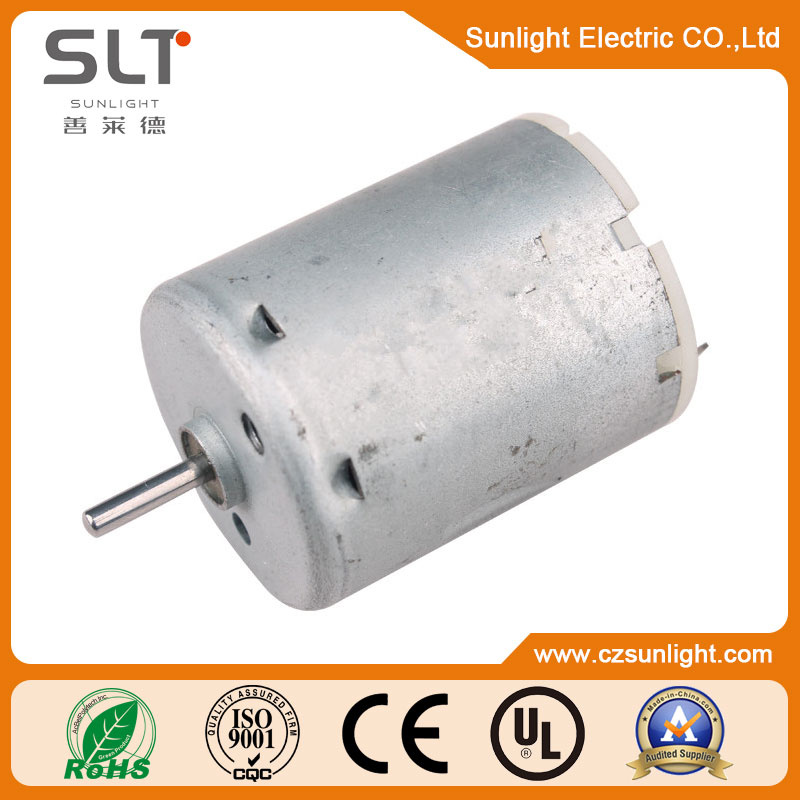

24V Brush DC Electrical Motor for Medical Equipment
| Price: |
US $ 3-5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SLT-370CH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
24V |
| No Load Speed: |
3166rpm |
| No Load Current: |
0.008A |
| Load Speed: |
2538rpm |
| Load Current: |
0.032A |
| Load Torque: |
17.4G.Cm |
| Output: |
0.44W |
| Stall Torque: |
87.6g.Cm |
| Stall Current: |
0.131A |
| Application: |
Medical Equipments |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Certification: |
CE |
| Brand: |
Slt |
Product Description
Voltage:24V
No Load Speed:3166rpm
No Load Current:0.008A
Load Speed:2538rpm
Load Current:0.032A
Load Torque:17.4G.Cm
Output:0.44W
Stall Torque:87.6G.Cm
Stall Current:0.131A
| Model | SLT-370CH-071250 | SLT-370CH-15330 | SLT-370CH-14430 | SLT-370CH-11670 |
| Voltage | Operating Range (V) | 18.0-27.0 | 9.0-15.0 | 4.0-7.0 | 9.0-15.0 |
| Nominal (V) | 24.00 | 12.00 | 5.00 | 12.00 |
| NO Load | Speed | r/min | 3166 | 5940 | 1991 | 3132 |
| Current | A | 0.008 | 0.027 | 0.012 | 0.011 |
| At Max Efficiency | Speed | r/min | 2538 | 5146 | 1659 | 2645 |
| Current | A | 0.032 | 0.175 | 0.06 | 0.06 |
Torque | mN.m | 1.7 | 2.18 | 1.34 | 1.77 |
| g.cm | 17.4 | 22.2 | 13.7 | 18.1 |
| Output | W | 0.44 | 1.5 | 0.19 | 0.48 |
| Stall | Torque | mN.m | 8.58 | 16.31 | 8.05 | 11.39 |
| g.cm | 87.6 | 166.4 | 82.1 | 116.2 |
| Current | A | 0.131 | 1.133 | 0.299 | 0.325 |
| Model | Voltage | No Load | At Max Efficiency | Stall |
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current |
| V | V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A |
| SLT290 | 18.0-27.0 | 24.00 | 8100 | 0.07 | 6900 | 0.4 | 8.82 | 90 | 6.37 | 59.535 | 608 | 2.3 |
| SLT370CH-071250 | 18.0-27.0 | 24.00 | 3166 | 0.008 | 2538 | 0.032 | 1.7 | 17.4 | 0.44 | 8.58 | 87.6 | 0.131 |
| SLT370CH-15330 | 9.0-15.0 | 12.00 | 5940 | 0.027 | 5146 | 0.175 | 2.18 | 22.2 | 1.5 | 16.31 | 166.4 | 1.133 |
| SLT370CH-14430 | 4.0-7.0 | 5.00 | 1991 | 0.012 | 1659 | 0.06 | 1.34 | 13.7 | 0.19 | 8.05 | 82.1 | 0.299 |
| SLT370CH-11670 | 9.0-15.0 | 12.00 | 3132 | 0.011 | 2645 | 0.06 | 1.77 | 18.1 | 0.48 | 11.39 | 116.2 | 0.325 |
| SLT370CA-15285 | 9.0-18.0 | 13.50 | 7579 | 0.057 | 6350 | 0.294 | 3.2 | 32.7 | 2.58 | 19.74 | 201.4 | 1.52 |
| SLT370SA-09700 | 18.0-27.0 | 24.00 | 4858 | 0.014 | 4119 | 0.078 | 2.55 | 26 | 1.26 | 16.78 | 171.2 | 0.435 |
| SLT360SA-16280 | 6.0-12.0 | 9.00 | 4972 | 0.067 | 4059 | 0.298 | 3.99 | 40.8 | 1.61 | 21.75 | 222 | 1.325 |
| SLT360SA-15120 | 18.0-30.0 | 24.00 | 12600 | 0.078 | 10545 | 0.4 | 6.29 | 64.2 | 6.23 | 38.59 | 393.8 | 2.055 |
| SLT365SA-15120 | 9.0-15.0 | 12.00 | 8536 | 0.121 | 6645 | 0.425 | 5.2 | 53 | 2.61 | 23.45 | 239.3 | 1.493 |
| SLT365SA-10190 | 18.0-30.0 | 24.00 | 10482 | 0.078 | 8256 | 0.267 | 4.29 | 43.7 | 3.42 | 20.18 | 205.9 | 0.99 |
| SLT380PA-20150 | 9.0-15.0 | 12.00 | 8114 | 0.103 | 6768 | 0.518 | 6.06 | 61.8 | 3.99 | 36.53 | 372.7 | 2.606 |
| SLT385PA-15120 | 9.0-15.0 | 12.00 | 5491 | 0.065 | 4445 | 0.276 | 4.54 | 46.3 | 1.94 | 23.85 | 243.4 | 1.175 |
| SLT385PA-10280 | 18.0-30.0 | 24.00 | 5276 | 0.033 | 4168 | 0.124 | 3.95 | 40.3 | 1.61 | 18.82 | 192 | 0.467 |
| SLT385PA-13220 | 18.0-30.0 | 24.00 | 6750 | 0.051 | 5525 | 0.23 | 6.3 | 64.2 | 3.34 | 34.69 | 354 | 1.038 |
| SLT395PA-1798 | 9.0-15.0 | 12.00 | 5013 | 0.089 | 4079 | 0.389 | 7.51 | 76.6 | 2.77 | 40.3 | 411.2 | 1.697 |
| SLT395PA-16105 | 9.0-15.0 | 12.00 | 4638 | 0.08 | 3740 | 0.333 | 6.84 | 69.8 | 2.31 | 35.32 | 360.4 | 1.388 |
| SLT510SA | 9.0-18.0 | 12.00 | 7461 | 0.156 | 5983 | 0.631 | 9.17 | 93.6 | 4.29 | 46.28 | 472.2 | 2.555 |
| SLT510SA | 9.0-18.0 | 12.00 | 9515 | 0.154 | 8025 | 0.829 | 8.55 | 87.2 | 6.6 | 54.59 | 557.1 | 4.466 |
| SLT510SA | 18.0-30.0 | 24.00 | 7550 | 0.075 | 6250 | 0.361 | 9.65 | 98.5 | 5.43 | 56.05 | 572 | 1.734 |
| SLT510SA | 18.0-30.0 | 24.00 | 4884 | 0.05 | 4031 | 0.236 | 7.48 | 76.3 | 3.52 | 42.81 | 436.9 | 1.116 |
| SLT511SA-26150 | 9.0-18.0 | 12.00 | 5165 | 0.114 | 4368 | 0.625 | 11.23 | 114.6 | 5.02 | 72.83 | 743.2 | 3.429 |
| SLT511SA-29100 | 9.0-18.0 | 12.00 | 7273 | 0.165 | 6265 | 1.026 | 12.88 | 131.4 | 8.67 | 92.93 | 948.2 | 6.376 |
| SLT511SA-18300 | 12.0-28.0 | 24.00 | 5075 | 0.052 | 4344 | 0.309 | 13.26 | 135.3 | 5.13 | 92.1 | 939.8 | 1.838 |
| SLT511SA-16380 | 12.0-30.0 | 24.00 | 4087 | 0.048 | 3428 | 0.25 | 11.5 | 117.4 | 3.91 | 71.4 | 728.5 | 1.301 |
| SLT540PA-31106 | 9.0-15.0 | 12.00 | 7011 | 0.284 | 5881 | 1.479 | 18.7 | 190.8 | 11.58 | 116.06 | 1184.3 | 7.698 |
| SLT540PA-27147 | 9.0-15.0 | 12.00 | 5088 | 0.183 | 4226 | 0.897 | 15.86 | 161.8 | 6.82 | 93.55 | 954.6 | 4.393 |
| SLT545PA-2389 | 18.0-30.0 | 24.00 | 8182 | 0.186 | 6980 | 1.08 | 24.75 | 252.5 | 17.76 | 168.45 | 1718.9 | 6.271 |
| SLT545PA-3065 | 9.0-15.0 | 12.00 | 6070 | 0.226 | 5082 | 1.162 | 18.1 | 184.7 | 9.05 | 111.19 | 1134.6 | 5.978 |
| SLT457SD-13150 | 15.0-30.0 | 24.00 | 3200 | 0.1 | 2900 | 0.35 | 12 | 120 | 8.4 | 58 | 595 | 1.11 |
| SLT457SD-1580 | 9.0-18.0 | 13.50 | 4150 | 0.09 | 3350 | 0.36 | 8.2 | 83.5 | 4.9 | 40.8 | 416.4 | 0.43 |
| SLT550PA-3578 | 9.0-15.0 | 12.00 | 7505 | 0.345 | 6309 | 1.819 | 23.59 | 240.7 | 14.34 | 147.99 | 1510.1 | 9.549 |
| SLT555PA-20115 | 18.0-30.0 | 24.00 | 5014 | 0.096 | 4240 | 0.526 | 20.72 | 211.4 | 8.44 | 134.26 | 1370 | 2.884 |
| SLT555PA-3057 | 9.0-15.0 | 12.00 | 5035 | 0.208 | 4262 | 1.147 | 21.61 | 220.5 | 9.23 | 140.78 | 1436.5 | 6.328 |
| SLT477SD-2170 | 6.0-15.0 | 12.00 | 3600 | 0.07 | 3050 | 0.38 | 9.8 | 100 | 3.14 | 63.4 | 647 | 2.080 |
| SLT477SD-15132 | 15.0-28.0 | 24.00 | 3800 | 0.045 | 3180 | 0.22 | 10.78 | 110 | 3.66 | 66.05 | 647 | 1.120 |
| SLT477SD-15132 | 15.0-28.0 | 24.00 | 3800 | 0.045 | 3180 | 0.22 | 10.78 | 110 | 3.66 | 66.05 | 647 | 1.120 |
| SLT487WD-3036 | 6.0-15.0 | 12.00 | 3950 | 0.11 | 3508 | 0.87 | 21.56 | 220 | 7.97 | 193.55 | 1975 | 6.920 |
| SLT487WD-4016 | 6.0-12.0 | 9.00 | 6700 | 0.3 | 5950 | 2.37 | 25.38 | 259 | 15.84 | 226.38 | 2310 | 18.780 |
| SLT487WD-2172 | 15.0-28.0 | 9.00 | 6700 | 0.06 | 3488 | 0.45 | 22.64 | 231 | 8.28 | 193.55 | 1975 | 3.420 |
| SLT487SD-2548 | 6.0-15.0 | 13.50 | 4616 | 0.11 | 3907 | 0.62 | 14 | 142 | 8.37 | 90.59 | 924 | 3.400 |
| SLT497SD-2165 | 15.0-28.0 | 24.00 | 4250 | 0.07 | 3644 | 0.42 | 18.76 | 191.4 | 7.16 | 131.52 | 1342 | 2.530 |
| SLT497SD-4218 | 6.0-15.0 | 12.00 | 8630 | 0.21 | 7835 | 2.07 | 22.93 | 234 | 18.82 | 248.72 | 2538 | 20.390 |
| SLT497WD-2840 | 15.0-28.0 | 24.00 | 8100 | 0.3 | 7090 | 2.11 | 52.08 | 531.4 | 37.71 | 417.77 | 4263 | 14.790 |
Advantages of 24V Brush DC Electrical Motor for Medical Equipmenta: Save cost, price is low
b: Better reliability.
c: Low energy consumption.
d: Speed is steady.
e: Easy to run and adjust the speed.
f: Small size, easy to carry.
g: Application range is super wide.

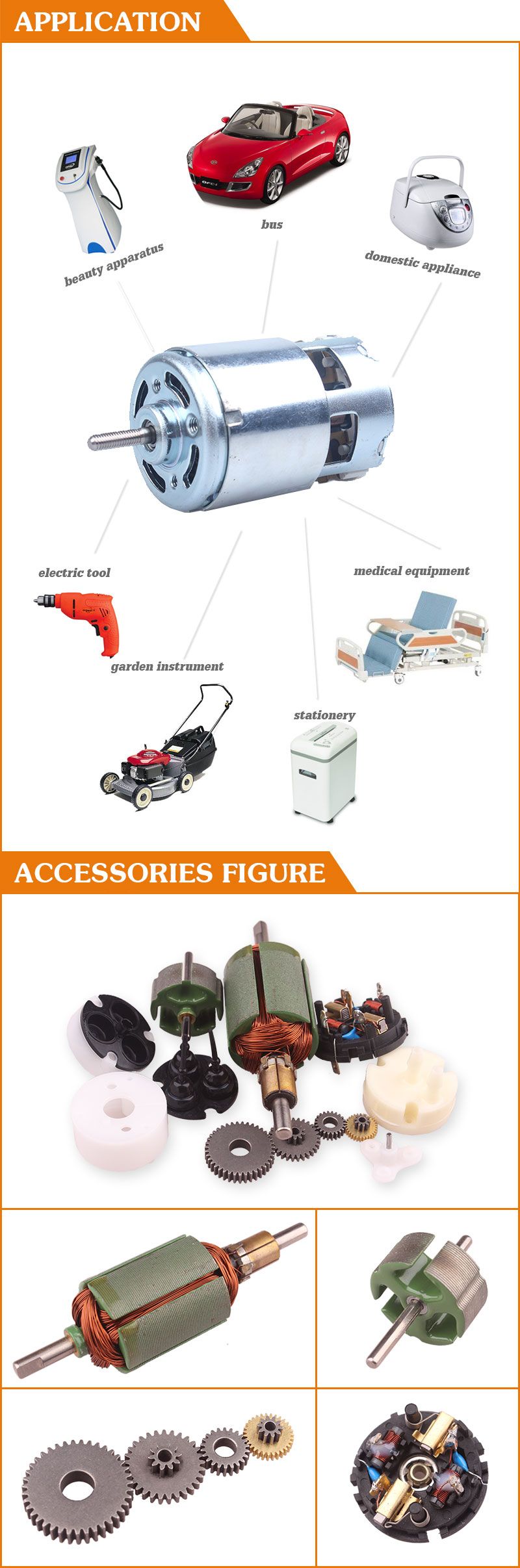

Applications of 24V Brush DC Electrical Motor for Medical EquipmentA:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Applicance ( Electric cooker, Electric mop and other products.)
C.Medical equipments and beauty products.
D.Office products (such as printer, scanner......)
E.Other Fields.
Why choose us ?
A. Quality in sure.
B. Price is competitive.
C. Service is excellent.
D. Delivery on time.
E. Promise is A Promise.
Equipments Company & certificationsa. Modern office building, we warmly welcome your visiting.
b.We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm
c.ISO, CE, GS, Rohs certificates. We have been making good progress.
Shipment and Packagea.Strong packaging to ensure safty during transportation.
b.This supplier supports Trade Assurance.
c.Our products are transported to many countries
Follow the Trade Assurance process and get:
1.On-time shipment and pre-shipment product quality safeguards
2.Refund up to the covered amount agreed with your supplier
3.Supplier's Trade Assurance Limit:
Personal Informationif you need more information. please contact with us,
our contact information: Changzhou sunlight Co., Ltd
Contact Person: Janet Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-15961201381
Website: www.czsunlight.com or www.sunlightmotor.com
Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.
There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.
The main products are DC motor, brushless DC motor, linear actuator and DC fan.
At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.
Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.
We welcome all the global companies to visit our factory and negotiate with us!
Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"
We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.
Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on
The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;
The main linear actuator's series are: ST01, PT01, YT01 and so on;
The main fan's series are: 16inch, 12inch, and so on
So that, If you give us a chance, Sunlight Motor will not let you disappoint.
