24V Coil Reversing Type Contactor 220V Motor Magnetic Change-Over Contactor

Prod Model:	CC1-800N

Product Description

CC1-256N Reversing/Change-over type Contactor

1. Description

Remote making & breaking circuits; Protect circuit
From over-load when assembling with thermal over-load relay;
Frequent start-up and control of AC contactor;
Electric ratings: AC50/60Hz, 690V, up to 95A;
Utilization category: AC-3, AC-4;
Altitude: ≤ 2000m;
Ambient temperature: -5º C~+40º C;
Mounting category: III;
Mounting conditions: Inclination between the mounting plane and the vertical plane should not exceed ± 5°;
Standard: IEC/EN 60947-4-1. IEC/EN 60947-5-1.

2. Structure of the contactor

The contactors are composed of two horizontally mounted contactors through mechanical interlock.
The lateral-side interlock is mounted between the two contactors.


Standard		IEC/EN60947-4-1
TYpe			CC1-115N	CC1-150N	CC1-185N	CC1-255N	CC1-265N
Rated Operation current (A) Ue=380/415V		AC-3 le(A)	115	150	185	225	265
		AC-4 le(A)	52	60	79	86	105
AC3 capacity of three-phase   squirrel-cage motor AC3(kW)		380/415V KW	55	75	90	110	132
		660/690V KW	80	100	110	129	160
Rated Conventional Heating Current Ith(A)			200	200	275	275	315
Rated Voltage Ui(V)			690	690	690	690	690
Number of the contact			3P or 4P

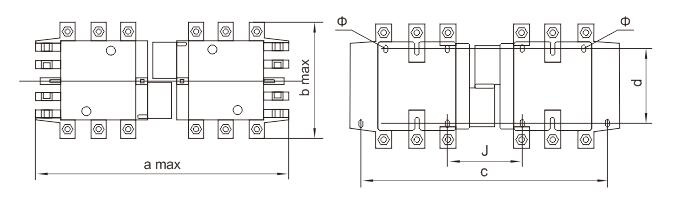

3. Dimension(mm)

Contactor	Pole	A max	b max	c	d	J
CC1-265N	3	450	203	428	110~120	109
CC1-2654N	4	546	249	485		157

4. Certificate
