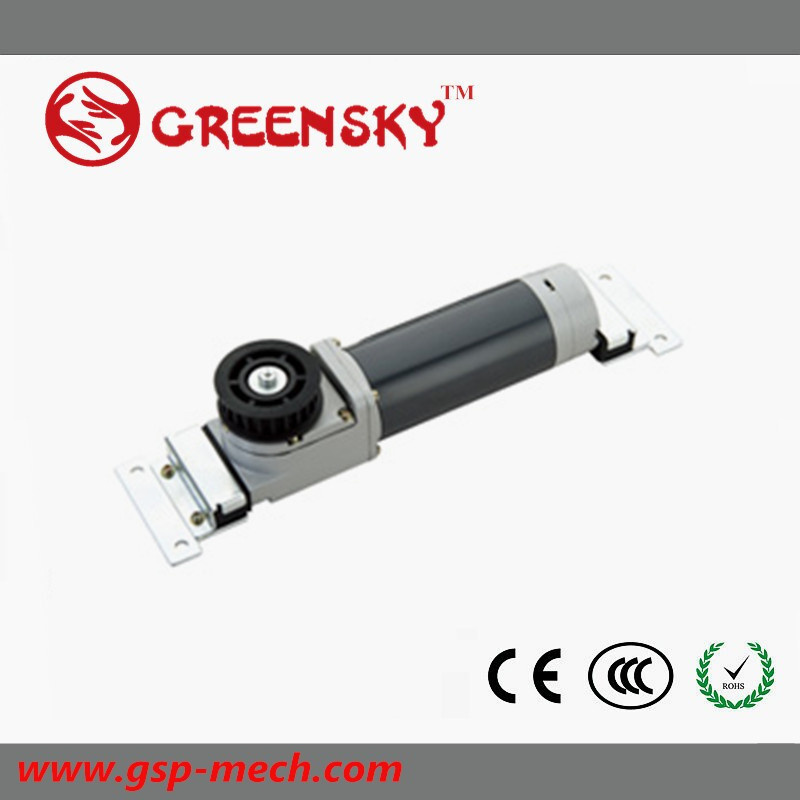

24V DC Automatic Rolling Door Gear Electric Motor

Name: 24V DC Automatic Rolling Door Gear Electric Motor
Brand: all-electronics-online.com
SKU: 745373385
Availability: InStock
Rating: 4.3 (101 reviews)

Price:	US $ 29-35/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSMJ-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	24V
Power:	60W
Application:	Rolling Door
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	CE, UL
Brand:	GS

Product Description

Main data:
1. Basic specification: DC24V, 60W, 2500RPM S1, B CLASS, IP20, IP40
2. Rated torque of bare motor: 318mN. M, 229mNm
3. No-load noise of whole motor: <50dB, L=50cm
4. VE: AC66V, 1S, 5mA
5. Insulation resistance: >20MΩ 500V, >20MΩ 500V
6. Life: 2500H, 4000H
7. Ambient request: RoHS
8. Gear Ratio: 8.5, 12.5, 13

Product characters:
This product adopted PMDC brush motor as the main part of rotor. It can be matched with computer system of control. It can realise self-supervise through matching with computer, and you can set the best working model.
Such asspeed, impetus, resistant power and so on. It has characters of low noise, small volume, light, long lift and wide use. Meanwhile, it can meet the customers'request of update.
