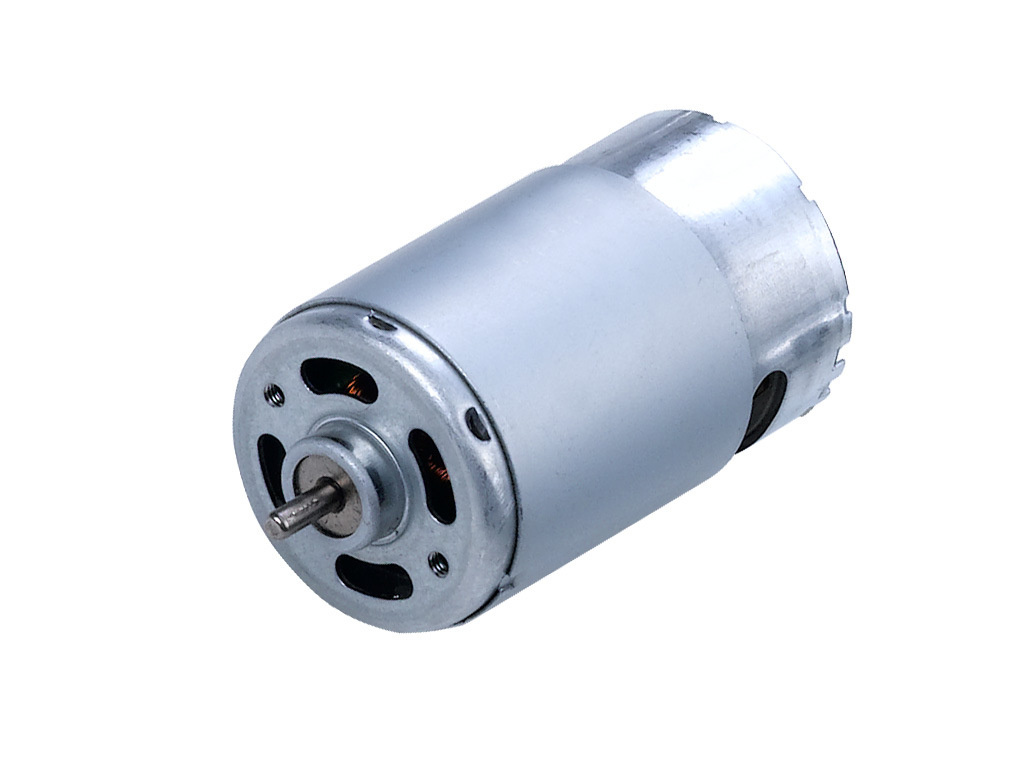

24V DC Electirc Motor RS-550sh for Water Pump

Name: 24V DC Electirc Motor RS-550sh for Water Pump
Brand: all-electronics-online.com
SKU: 840120935
Availability: InStock
Rating: 4.3 (47 reviews)

Price:	Negotiable/Piece
Min Order:	5000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RS-550SH
Input Power:	200 Watts
Outpower:	120 Watts
Speed:	2000~20000 Rpm

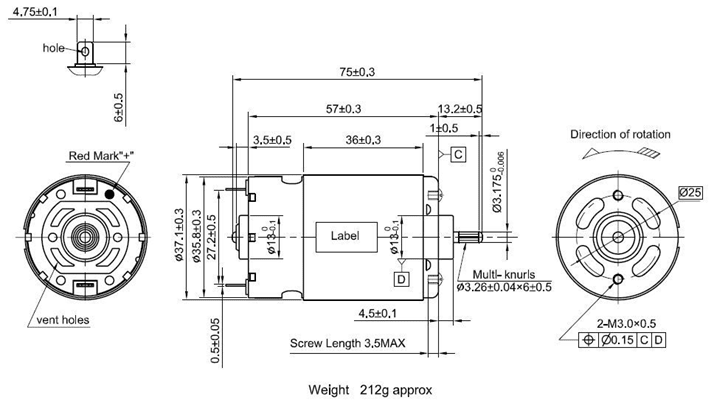

Diameter:	36mm
Application:	Household Appliances
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Type:	PMDC
Brand:	CF

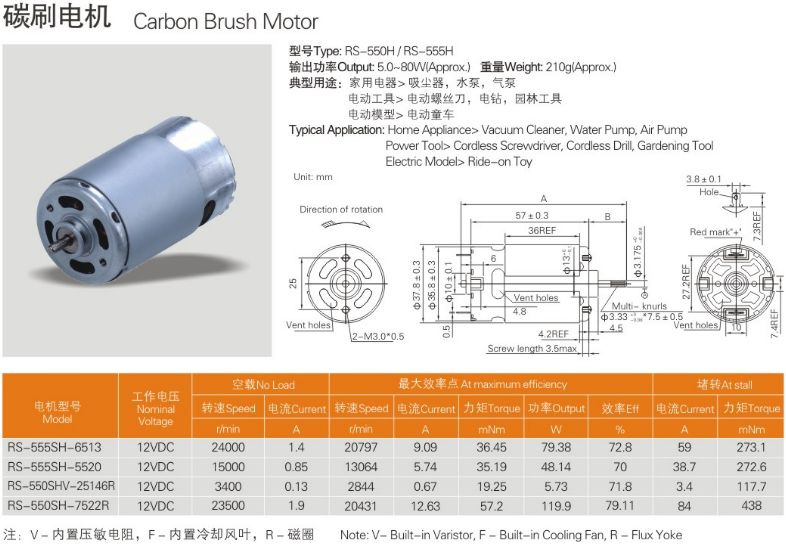

Product Description

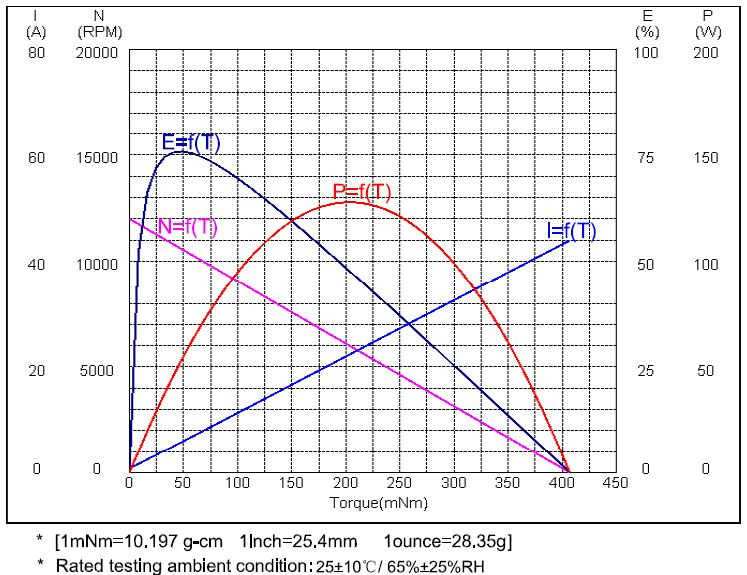

Model No.	Main Performance
	Rated Voltage	No Load		At Maximum Efficiency					At Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Output	Eff.	Current	Torque
	V	r/min	A	r/min	A	g.cm	W	%	A	g.cm
RS-555SH-6513	12VDC	24,000	1.4	20,797	9.09	36.45	79.38	72.8	59	273.1
RS-555SH-5520	12VDC	15,000	0.85	13,064	5.74	35.19	48.14	70	38.7	272.6
RS-550SHV-25146R	12VDC	3,400	0.13	2,844	0.67	19.25	5.73	71.8	3.4	117.7
RS-550SH-7522R	12VDC	23,500	1.9	20,431	12.63	57.2	119.9	79.11	84	438

Shenzhen Chengfang Electric Machine Co., Ltd. is an ISO/TS 16949 certified manufacturer of brush DC / High Voltage DC motors. Established in 2003, Chengfang makes DC motors ranging from Series 1 (dia. 20.4mm) to Series 9 (dia. 52mm).

Chengfang supplies our DC motors to automotive, home appliance, power tool, office equipment, fitness apparatus, and electric model industries.

Chengfang holds several patents in motor design. We are able to supply DC motors with low cogging design, built-in EMC components, built-in PTCs, built-in AC/DC rectifiers, hall encoders and neodymium magnet design.

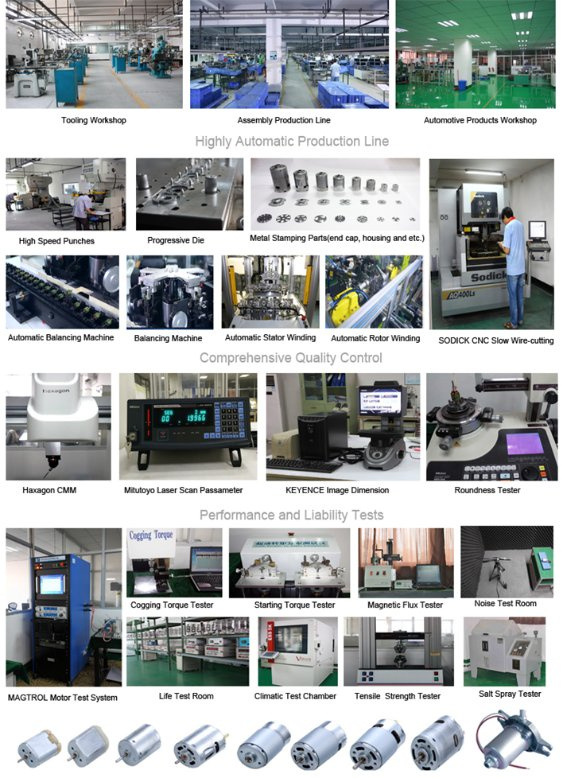

Chengfang has a full range of testing equipment to evaluate motor performance in various aspects, including dynamic motor performance testing M/CS, static torque testers, roundness testers, roughness testers, vibration testing M/CS, and environment testing M/CS and spectrometers. Chengfang's motors are in compliance with UL, CE, RoHS and CCC regulations.

Chengfang holds all manufacturing processes in house, thus keeping quality under strict control and competitive cost. Chengfang provides comprehensive motor design to save every cent of our customers.

With fast response, short lead time, comprehensive design, good quality, and competitive price, Chengfang is gaining a higher and higher reputation in the industry.
