24V DC Motor for Massager and Vibrator

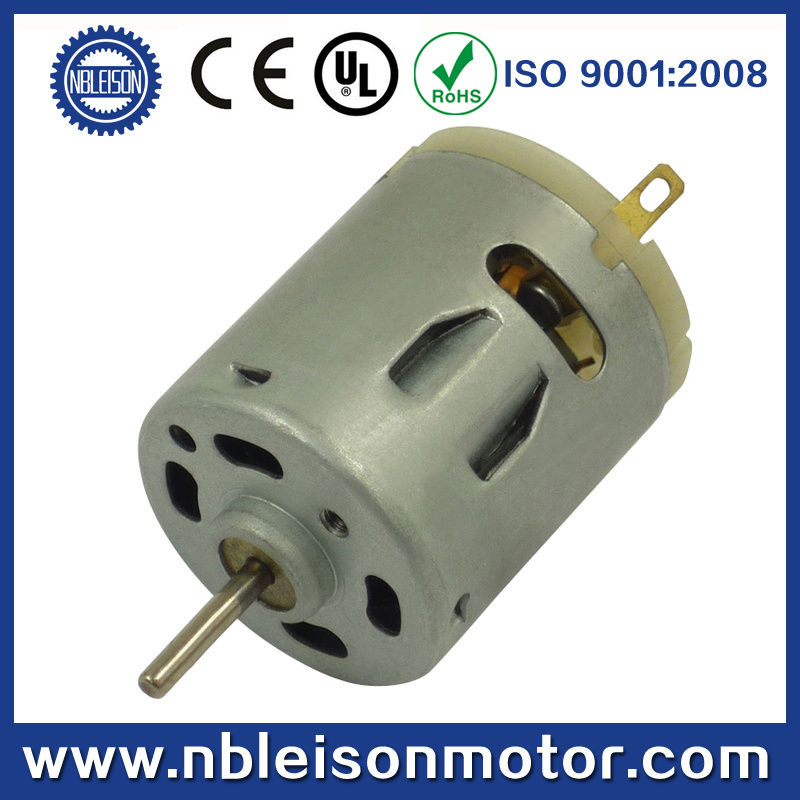

Name: 24V DC Motor for Massager and Vibrator
Brand: all-electronics-online.com
SKU: 678492812
Availability: InStock
Rating: 5 (41 reviews)

Price:	US $ 0.54-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RS365
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Construction:	Permanent Magnet
Commutation:	Brush
Stator:	2 Poles
Armature Slots:	3 Solts
Shaft:	Dia2.3mm Steel Shaft, Accept Customized
Opition:	EMC/EMI Suppression, Cooling Fan
End Cap:	Metal or Plastic for Choose
Insulation Of Armature:	Class F Magnet
Structure And Working Principle:	Brush
Operating Speed:	Constant Speed
Application:	Power Tools, Household Appliances, Water Pump, Fan

Product Description

DC Motor:

Volatge: 3-36V

Speed: 1500-35000RPM

Output Power: 1-40W

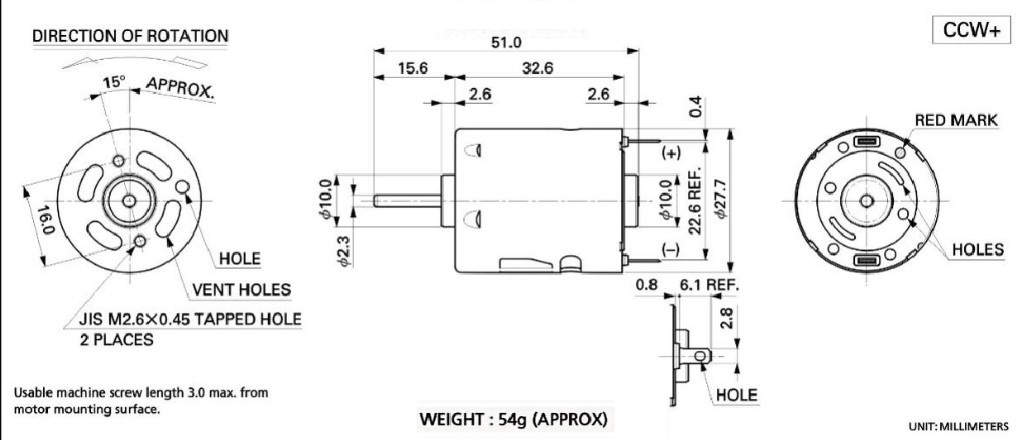

Dimension: 27.7dia x37.8mm length

Packing: 29.5X27X13.5CM, 200PCS/CTN 12KG/CTN

Note: The technical data sheet and price range are only for reference, we can customerize them according to different requirements after evaluation, Please contact with me if you have want sampels or more

specifications:

MODEL	VOLTAGE		NO-LOAD		AT MAXIMUM EFFICIENCY					STALL
	VOLTAGE		SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
	OPERATING RANGE	NOMINAL	r/min	A	r/min	A	mN@ m	g@ cm	W	mN@ m	g@ cm	A
RS-365SH-2650	DC 6-24V	DC 18V	19000	0.21	16000	1.13	7.7	78.67	13.42	48.7	497	6.0
RS-365SH-10250	DC 18-30V	DC 24V	8000	0.07	6150	0.22	4.01	41.0	2.6	17.6	180	0.7
RS-365SH-14134	DC 15-30V	DC 24V	13700	0.14	11200	0.06	7.4	75	8.99	408	40	2.6
RS-365SH-12190	DC 6.8-36V	DC 24V	10500	0.08	8400	0.33	5.00	51	4.39	25.5	260	1.3
RS-365RH-2650	3-12V	DC 12V	25500	0.4	20930	1.83	5.36	54.6	11.7	39.9	305	8.4
RS-365SA-12153	DC 12-24V	DC 24V	14500	0.13	11300	0.45	4.50	46	5.3	19.6	200	1.6

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
