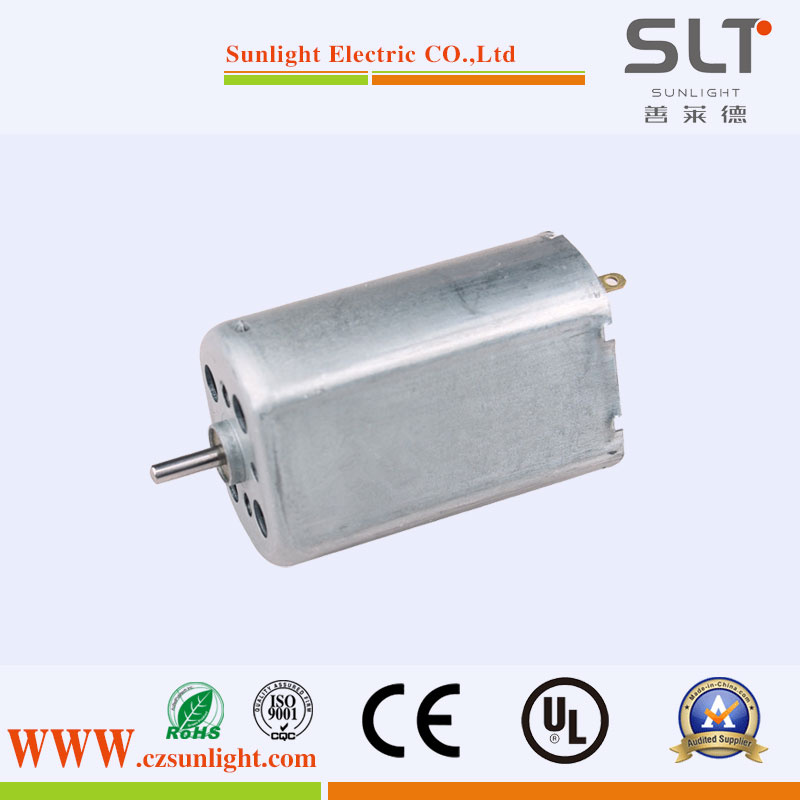

24V Electric DC Brushed Motor for Car and Bus

Name: 24V Electric DC Brushed Motor for Car and Bus
Brand: all-electronics-online.com
SKU: 761859365
Availability: InStock
Rating: 5 (148 reviews)

Price:	US $ 1-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLT-290D1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	24V
No Load Speed:	8000rpm
No Load Current:	0.07A
Load Speed:	6900rpm
Load Current:	0.4A
Load Torque:	90 G.Cm
Output:	6.4W
Stall Torque:	608 G.Cm
Stall Current:	2.3A
Application:	Medical Equipments
Operating Speed:	Constant Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Certification:	CE
Brand:	Slt

Product Description

a,Operating Voltage:18-27V
b,Nomal Voltage:24V
c,No load speed:6900
d,No load current:0.4A
e,Stall current:2.300A

Voltage	Operating Range (V)		18.0-27.0
Voltage	Nominal (V)		24.00
No Load	Speed	r/min	8100
No Load	Current	A	0.07
At Max Efficiency	Speed	r/min	6900
	Current	A	0.4
	Torque	mN.m	8.82
	Torque	g.cm	90
	Output	W	6.37
Stall	Torque	mN.m	59.535
	Torque	g.cm	608
	Current	A	2.300

Advantages of 24V electric DC Brush Motor for Car and Bus

a: Save cost, price is low
b: Better reliability.
c: Low energy consumption.
d: Speed is steady.
e: Easy to run and adjust the speed.
f: Small size, easy to carry.
g: Application range is super wide.

Applications of 24V electric DC Brush Motor for Car and Bus

A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Applicance ( Electric cooker, Electric mop and other products.)
C.Medical equipments and beauty products.
D.Office products (such as printer, scanner......)
E.Other Fields.
