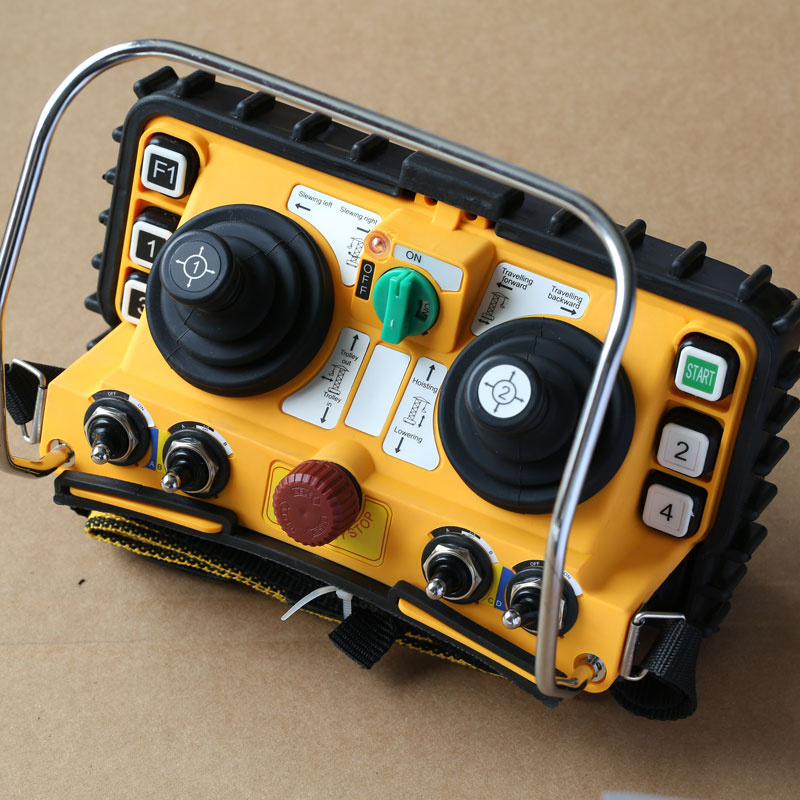

24V F24-60 Dual Joystick Wireless Remote Controller for Tower Crane
| Price: |
US $ 1/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
F24-60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Distance: |
up to 100m |
| Control Motions: |
40 |
| Unique Code: |
Over 4.3 Billon Unique ID Codes |
| Working Temperature: |
-35 Deg C~ +80 Deg C |
| Enclosure Protection Class: |
IP 65 |
| Transmitter Power: |
DC 6V (4 AA Batteries) |
| Receiver Power: |
AC 380V/ 36V/220V or DC12V |
| Output Capacity: |
Full Sealed Relay Output with 5 Ampers |
| Frequency: |
310.00~330MHz |
| Signal Transmission: |
RF Remote Control |
| Type: |
Joystick |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
AC 380V/110V/ 48V/36V/220V or 12V/24V |
Product Description
24V F24-60 Dual joystick Wireless Remote Controller for tower crane Features of eot crane wireless remote controller:1. 2 pieces 4 directions 5-step joystick, 6 spare push button, 4 toggle switches
2. The control distance can reach 100m, 40 control motions, widely used on concrete pump, tower crane and other complex machine.
3. Glass fiber and engineering-plastics make the cover strong, IP65 make it more safety. 4AA batteries, make it use longer.
4. Reasonable interior layout, make good heat dissipation, long life and can work for a long time.
5. Rich accessories: battery holder, antenna, spare green rotary switch, and also include one leather waist belt.
Specification of wireless remote control: | Control distance | Up to 100m |
| Control point | 40 |
| Certificates | CE, FCC, ISO9001 |
| Unique code | Over 4.3billon unique ID codes . |
| Working temperature | -35°C___+80°C |
| Enclosure protection class | IP65 |
| Transmitter power | DC 6V |
| Receiver power | AC 18-65v or 65-440v or AC/DC 12V |
| Output capacity | Full sealed relay output with 5 amperes |
| Frequency | VHF 312-331MHz. 425-446Mhz. |
| Radio output | 0-10v |
Brief introduction:
Transmitter Size:200*110*90mm weight:860g
Receiver Size:290*230*70mm weight:2200g

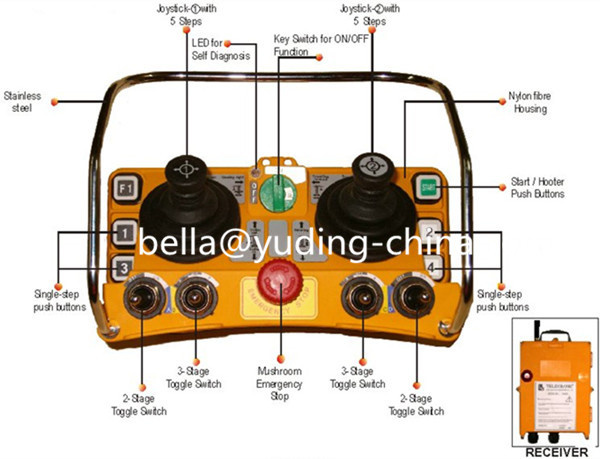

Function description:
2 pcs 5-steps joystick
4 toggle switches
6 push buttons
Key switch for ON/OFF function

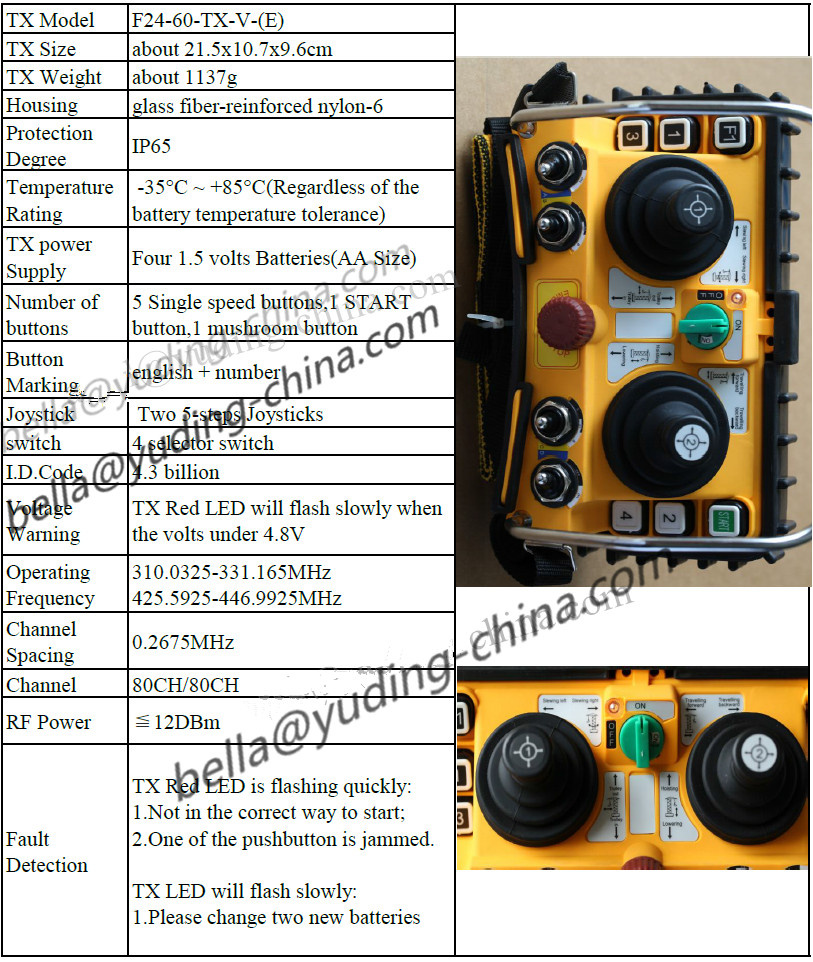

Mushroom emergency stopSpecifications of Transmitter:

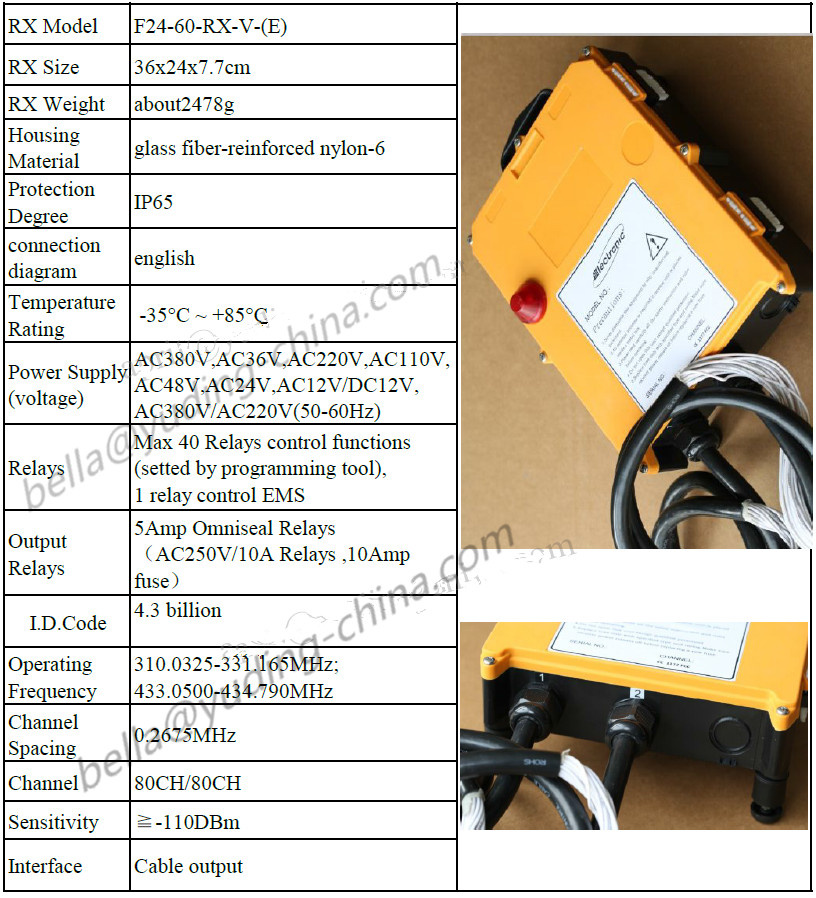

Specifications of Receiver:
Products Features:
*Durable nylon-fiber housing for extra shock resistance
*Fully programmable relay configuration with maximum 16 relays output per command.
*Operating range up to 100 meters
*Pre-wiring standard cable making installation quick and easy.
*Economic efficiency, ease of operation.
*3 stages LED battery power indicator.

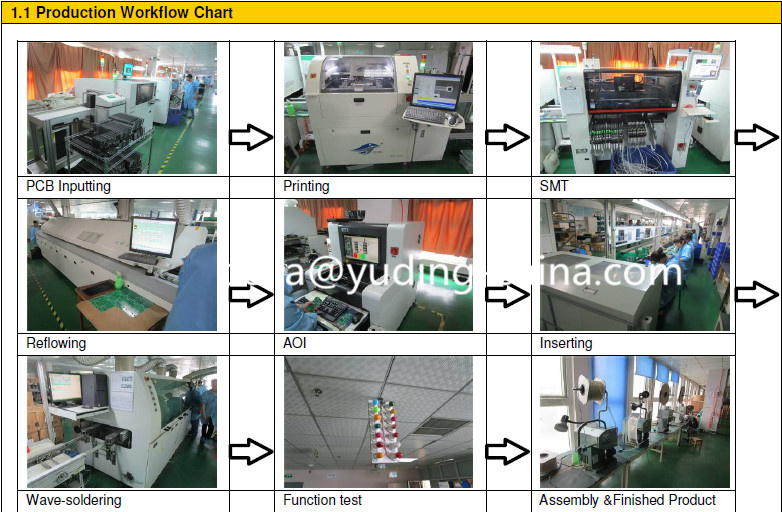

*Feature acceleration delay time control (smooth moving for multiple speeds cranes)Production process:
Standard configuration:
One transmitter;
One receiver;
One 3m cable connect with receiver;
One operation and maintain manual.
Packing Information:
1 Set per carton,
Carton size: 55*30*26cm
Weight: 6.25kgCustomer visit Factory:
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
