| Prod Model: |
SLT-555PA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Range (V): |
18.0-30.0 |
| Nominal (V): |
24.00 |
| No Load Speed: |
5014r/Min |
| No Load Current: |
0.096A |
| At Max Efficiency Speed: |
4240r/Min |
| At Max Efficiency Current: |
0.526A |
| At Max Efficiency Torque: |
20.72mn.M |
| At Max Efficiency Output: |
8.44W |
| Stall Torque: |
134.26mn.M |
| Stall Current: |
2.884A |
| Application: |
Medical Equpiments |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Certification: |
CE |
| Brand: |
Slt |
Product Description
Product description
Voltage:24V
No Load Speed:5014rpm
No Load Current:0.096A
Load Speed:4240rpm
Load Current:0.526A
Load Torque:20.72mn.M
Output:8.44W
Stall Torque:134.26mn.M
Stall Current:2.884A

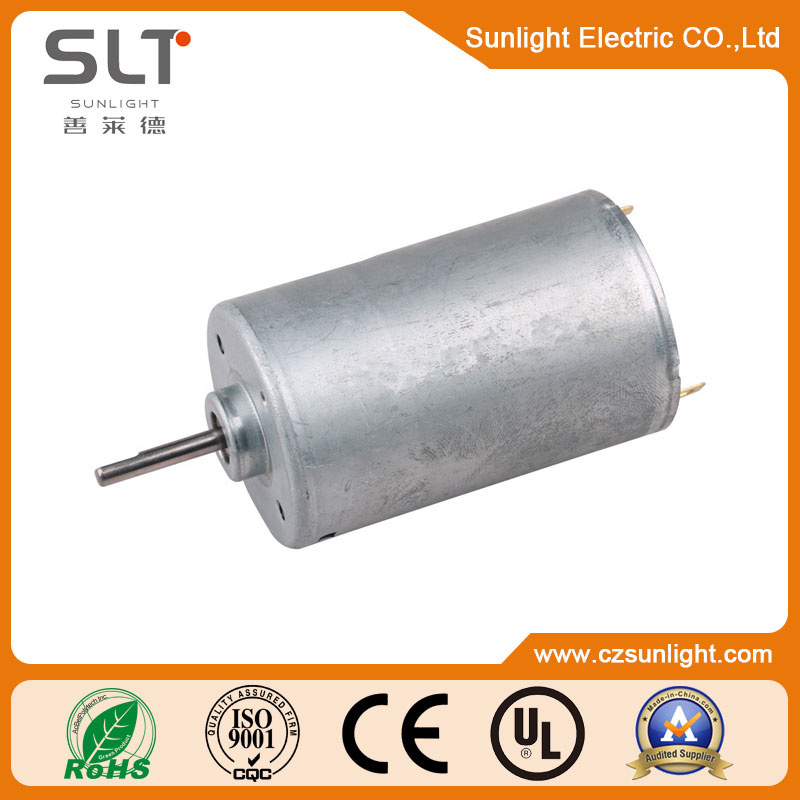

Advantages of 24V Humanized Design Brush DC Mini Motor for Stationery A: Save cost, price is low
B: Better reliability.
C: Low energy consumption.
D: Speed is steady.
E: Easy to run and adjust the speed.
F:Small size, easy to carry.
G: Application range is super wideAdvantages of 24V Humanized Design Brush DC Mini Motor for Stationery Specification| Model | SLT-555PA-20115 | SLT-555PA-3057 |
| Voltage | Operating Range (V) | 18.0-30.0 | 9.0-15.0 |
| Nominal (V) | 24.00 | 12.00 |
| NO Load | Speed | r/min | 5014 | 5035 |
| Current | A | 0.096 | 0.208 |
| At Max Efficiency | Speed | r/min | 4240 | 4262 |
| Current | A | 0.526 | 1.147 |
Torque | mN.m | 20.72 | 21.61 |
| g.cm | 211.4 | 220.5 |
| Output | W | 8.44 | 9.23 |
| Stall | Torque | mN.m | 134.26 | 140.78 |
| g.cm | 1370 | 1436.5 |
| Current | A | 2.884 | 6.328 |
Application of 24V Humanized Design Brush DC Mini Motor for Stationery with Adjusted Speed:
A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Appliance ( Electric cooker, Electric mop and other products.)
C.Medical equipment and beauty products.
D.Office products (such as printer, scanner......)
E. Electrical tools and Garden tools.
Product Structure
1,Casing bearing;
2,totor;
3,magnet shoe
4,brush group
5,diverter
6,terminal
7,end cap bearing
8,end cover
9,cabinet
10,shaft extension
About sunlight:
1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)
FAQ
Q1,Can I have a sample for testing?
A: Yes,of courses we can supply the sample for you !
Q2,I need 12v fan ,is that possible for you ?
A: we can make the voltage according to your requirement , like, 6v ,8v ,9v,12v Just tell me the voltage you want to .
Q3:Can I add my logo on the electric gear brush dc motor for car seat?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q5 :Do you have inspection procedures for electric gear brush dc motor for car seat?
A:100% self-inspection before packing
Q6:Can we mix the 20ft container?
A: Yes,if the items are meet our min order qty.
Q7:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory
Why choose Sunlight
1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on time
Packaging & Shipping
1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required
