24V Inverter with 3 Steps Charging and Portable Design

Name: 24V Inverter with 3 Steps Charging and Portable Design
Brand: all-electronics-online.com
SKU: 779359755
Availability: InStock
Rating: 4.6 (139 reviews)

Price:	US $ 50-200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	IS series inverter
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Voltage:	100V/110V/220V/230V/240V
Rated Input Voltage:	12V/24V/48V
Frequency:	50Hz/60Hz

Product Description

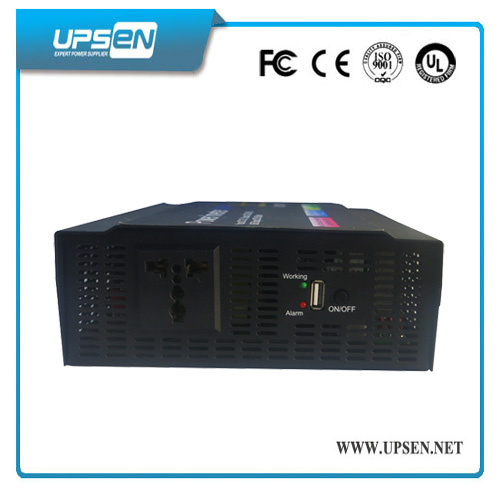

24V Inverter with 3 Steps Charging and Portable Design

1. Ideal Star is pure sine wave inverter
2. Ideal Star with soft start
3. Ideal Star with high cost perfprmance

Key Features:
Pure Sine Wave Output
Patent and Smart design
Full power
Soft start
Excellent performance and high conversion efficiency
Perfect protection: low voltage protection, high voltage protection, overload protection, over temperature protection and short-circuit protection
LED display, audible and visual alarm

Application
Home, office, Solar

IS Series
Model		IS300	IS500		IS600	IS800	IS1000
Rated power		300W	500W		600W	800W	1000W
Peak power		600W	1000W		1200W	1600W	2000W
Start method		Soft start
DC input	Rated input voltage	12V/24V/48V(optional)
AC Output	Voltage	100V/110V/220V/230V/240V(optional)
	Frequency	50HZ/60HZ(optional)
	Waveform	Pure Sine Wave
	Maximum DC	110%
	loads output power
	Total Harmonic Distortion	THD≤2%
	Rated output efficiency	>85%
Protection	High input voltage shutdown	15.0V, automatically shutdown, alarm twice
	Low input voltage shutdown	10.0V, automatically shutdown, alarm twice
	Low input voltage alarm	10.5V, no power off, alarm once
	Over temperature protection	When the temperature of internal heat sink is above 80ºC, it will shutdown automatically and alarm three times
	Short circuit protection	Shutdown, alarm five times, restart automatically
	Overload	Shutdown, alarm four times, restart automatically
	protection
	Reverse Input	Quick-break fuse
Environment	Temperature	-10 - 40ºC
	Humidity	0%-95%
Noise of the fan		<55dB
Insulation resistance		EN50081-1/EN55022
Insulating strength		EN50081-1/EN55022
Weight (Kg)		1.16		1.92		3
Size		23511565		29513272		32018572
WDH(mm)
*Specifications are subject to change without prior notice.
