| Prod Model: |
BB-EB2410S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
E-Bike |
| Motor Available: |
250W |
| Continuous Working Current: |
15A |
| Charger: |
2A Aluminum Case Charger |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
E-Bike,E- Scooter |
| Electrolyte: |
Li-ion |
Product Description

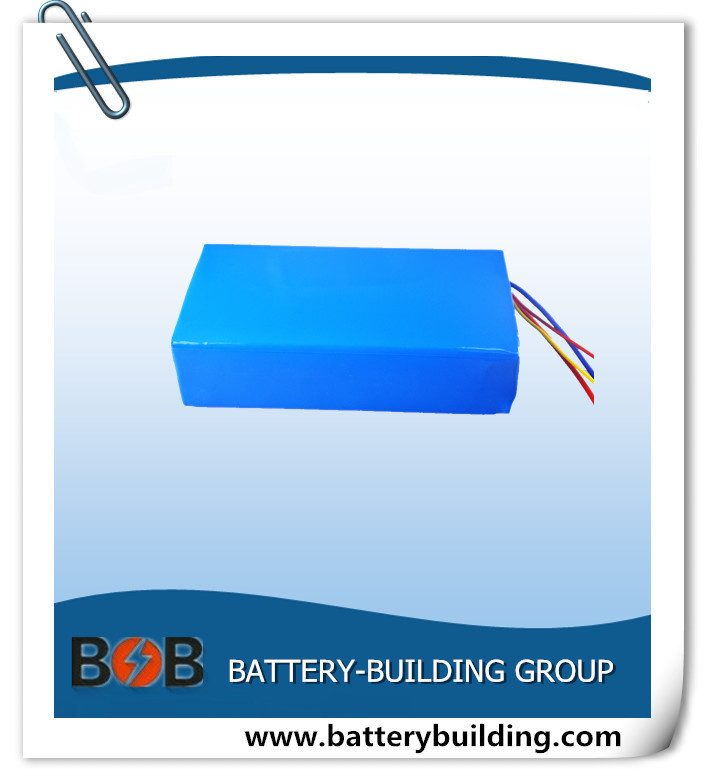

24v shrink battery pack for E-bike
Features
1. 24V10AH bottle battery
2. ICR18650 2200mAh 7S5P
3. electric bicycle battery
4. High density
5.stable working voltage
6.long cycle life
7.Light weight
Specification
Item | Parameters | Remark |
| Typical Capacity | 10Ah | 25ºC,1 C5A discharge |
| Nominal Voltage | 24.0V | 25ºC,Average Voltage at 0.2 C5A discharge |
| Charge input voltage | 110-240V AC | Wide voltage |
| Charge current | 2A | Working temperature:0~35ºC |
| Charge cut-off voltage | 29.4V | CC/CV |
| Charge time | 2-5h | |
| Working current | 15A | |
| Peak Working Current(2S) | 30A | Working temperature:0~35ºC |
| Over charge protection | 4.2±0.05V | Single cell |
| Over discharge protection | 2.75±0.05V | Single cell |
| Dimension | customized | |
| Weight | about 1.75kg | |
| Storage temperature | ≤3month | Best 20±5ºC for long-time storage |
Storage humidity | ≤3month | 0~30ºC | Best storage temperature:20±5ºC
Charge battery every 3 month |
| ≤6month | 20±5ºC |
| 65±20%RH | 20±5ºC |
We supply batteries types such as bottle battery, rear rack battery, silver battery, frog battery, Qingtian battery, 24/36/48V normal series, we also accept customized battery packs, domestic cell or imported cells are all available. If you are interested, welcome to send your inquiry.
Key Application
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.
Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.
Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours
More models:
Model | Style | Material | Voltage | Capacity | Dimension | Weight | Charger |
| Include BMS and housing |
| (V) | (Ah) | L*W*K (mm) | (kg) | (A) |
| BBG-SF-LFP2408 | Silver fish | LiFePO4 | 24 | 8 | 75*110*378 | 4 | 2 |
| BBG-SF-LFP24081 | Silver fish | LiFePO4 | 24 | 8 | 89*89*401 | 4 | 2 |
| BBG-SF-LN2410 | Silver fish | LNCM | 24 | 10 | 89*89*401 | 3.5 | 2 |
| BBG-RR-LFP2408 | Rear rack | LiFePO4 | 24 | 8 | 70*150*245 | 4 | 2 |
| BBG-RR-LN2410 | Rear rack | LNCM | 24 | 10 | 70*150*246 | 3.5 | 2 |
| BBG-SF-LFP2410 | Silver fish | LiFePO4 | 24 | 10 | 75*110*378 | 4.2 | 2 |
| BBG-LF-LFP2410 | Frog | LiFePO4 | 24 | 10 | 80*150*180 | 4.2 | 2 |
| BBG-RR-LFP2410 | Rear rack | LiFePO4 | 24 | 10 | 70*150*245 | 4.2 | 2 |
| BBG-WB-LFP2410 | water bottle | LiFePO4 | 24 | 10 | 91*91*410 | 4.5 | 2 |
| BBG-SF-LFP2420 | Silver fish | LiFePO4 | 24 | 20 | 135.5*88.8*395 | 6 | 5 |
| BBG-SF-LFP3608 | Silver fish | LiFePO4 | 36 | 8 | 75*110*385 | 4.2 | 2 |
| BBG-RR-LFP3608 | Rear rack | LiFePO4 | 36 | 8 | 70*150*365 | 4.2 | 2 |
| BBG-LF-LFP3606 | Frog | LiFePO4 | 36 | 6 | 80*150*180 | 4 | 2 |
| BBG-SF-LFP3610 | Silver fish | LiFePO4 | 36 | 10 | 75*110*385 | 4.5 | 2 |
| BBG-RR-LFP3610 | Rear rack | LiFePO4 | 36 | 10 | 70*150*365 | 4.5 | 2 |
| BBG-WB-LN3610 | water bottle | LNCM | 36 | 10 | 91*91*435 | 4 | 2 |
| BBG-FB-LN3610 | Frog | LNCM | 36 | 10 | 80*150*180 | 4 | 2 |
| BBG-RR-LFP3612 | Rear rack | LiFePO4 | 36 | 12 | 69*150*480 | 4.5 | 2 |
| BBG-SF-LFP3612 | Silver fish | LNCM | 36 | 12 | 89*85*385 | 4.5 | 2 |
| BBG-RR-LN3614 | Rear rack | LiFePO4 | 36 | 14 | 68*148*385 | 5.5 | 3 |
| BBG--RR-LFP4810 | Rear rack | LiFePO4 | 48 | 10 | 68*150*480 | 7 | 2 |
| BBG-LFP4820 | Epoxy board & PVC packaged | LiFePO4 | 48 | 20 | 320*140*150 | 14.5 | 4 |
