| Prod Model: |
ZWBPD022022 |
| Rated Voltage: |
24V DC |
| Gearbox Diameter: |
22mm |
| Output Power: |
0.5-4.5W |
| No Load Speed: |
6-472rpm |
| Rated Load Speed: |
5-419rpm |
| No Load Current: |
120mA(Max) |
| Rated Load Current: |
300mA(Max) |
| Torque: |
512-10,000 GF.Cm |
| Ratio: |
16-1296:1 |
| Motor Type: |
Planetary Gearbox Motor |
| Application: |
Smart Home |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brush |
| Excitation Mode: |
Permanent Magnet |
| Casing Protection: |
Drip-Proof |
| Type: |
Planetary Gearbox |
| Certification: |
Ts16949,RoHS |
| Brand: |
Zhaowei |
Product Description

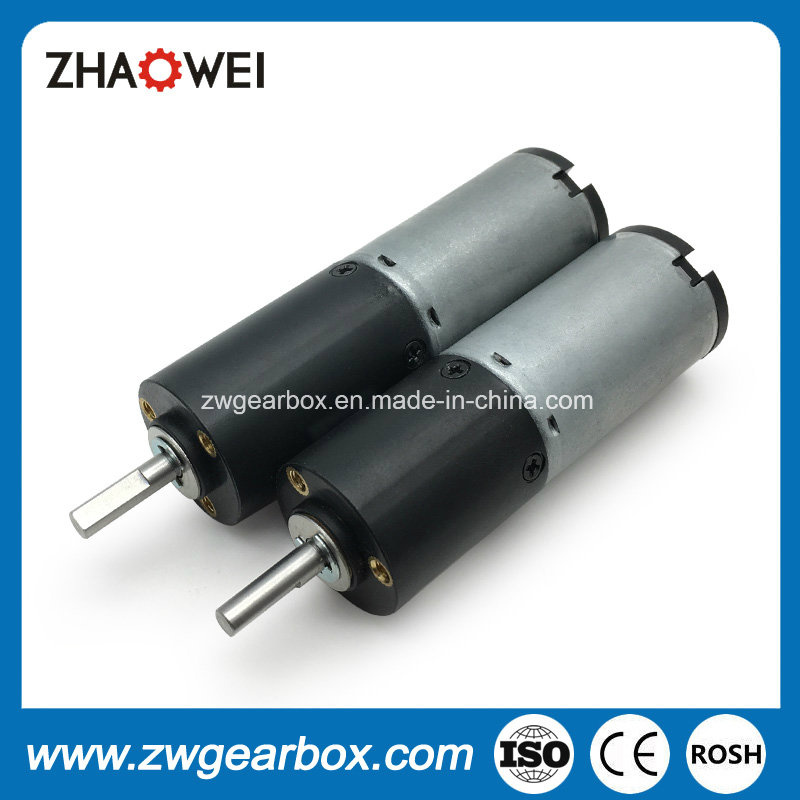

24V Small DC Planetary Gearbox Motor With 16-1296:1 Gear Ratio
Product Description
24V DC gear motor
The curtain motor
metallurgy gearbox
Reducer motor
Model | Typical Application Parameters | Max Rated Torque of Gear Box | Max Instant Torque of Gear Box | Gear Ratio | Gear Box Length
L1 |
| Rated | At No Load | At Rated Load | Overall Length
L |
| Voltage | Speed | Current | Speed | Current | Torque |
| VDC | rpm | mA(MAX) | rpm | mA(MAX) | gf.cm | mN.m | mm | gf.cm | gf.cm | mm |
| ZWBPD022022-16 | 24.0 | 472 | 110 | 419 | 295 | 512 | 50.2 | 64.8 | 10000 | 30000 | 16 | 26.4 |
| ZWBPD022022-24 | 24.0 | 314 | 110 | 279 | 295 | 768 | 75.3 | 10000 | 30000 | 24 |
| ZWBPD022022-36 | 24.0 | 210 | 110 | 186 | 295 | 1152 | 113.0 | 10000 | 30000 | 36 |
| ZWBPD022022-64 | 24.0 | 118 | 120 | 105 | 295 | 1350 | 132.4 | 72.1 | 10000 | 30000 | 64 | 33.7 |
| ZWBPD022022-96 | 24.0 | 79 | 120 | 70 | 295 | 2025 | 198.6 | 10000 | 30000 | 96 |
| ZWBPD022022-144 | 24.0 | 52 | 120 | 47 | 295 | 3038 | 297.9 | 10000 | 30000 | 144 |
| ZWBPD022022-216 | 24.0 | 35 | 120 | 31 | 295 | 4556 | 446.8 | 10000 | 30000 | 216 |
| ZWBPD022022-256 | 24.0 | 28 | 120 | 26 | 300 | 4050 | 397.2 | 79.4 | 10000 | 30000 | 256 | 41 |
| ZWBPD022022-384 | 24.0 | 19 | 120 | 17 | 300 | 6075 | 595.8 | 10000 | 30000 | 384 |
| ZWBPD022022-576 | 24.0 | 13 | 120 | 12 | 300 | 9113 | 893.7 | 10000 | 30000 | 576 |
| ZWBPD022022-864 | 24.0 | 8 | 120 | 8 | 300 | 10000 | 980.7 | 10000 | 30000 | 864 |
| ZWBPD022022-1296 | 24.0 | 6 | 120 | 5 | 300 | 4500 | 441.3 | 10000 | 30000 | 1296 |
above specifications just for reference and customizable according to requirements.
