| Prod Model: |
high density cartridge heater |
| Voltage: |
Customized |
| Power(W): |
100W-1000W |
| Warranty: |
12 Months |
| After-Sales Service Provided: |
Overseas Third-Party Support |
| Lead Connection Option: |
Crimped or Swaged Leads |
| Insulation Material: |
High-Purity MGO |
| Tube Material: |
SS304,SS316,Ss321,Nicoloy600/800/840 |
| Lead Wire Material: |
Teflon,Silicone,Fiberglass |
Product Description

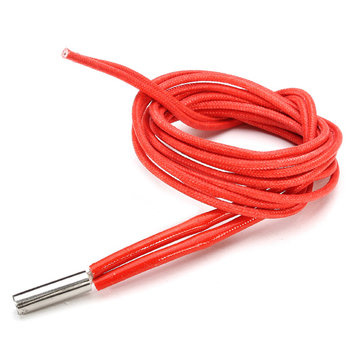

24V Swaged high density Cartridge Heater for 3D Printer
Cartridge heater with elbow is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)
Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries
Various cartridge heater technologies are available. The choice of technology will depend on technical specifications required and the application. Unless you know exactly which product you are looking for, we will recommend you the best solution for your needs.

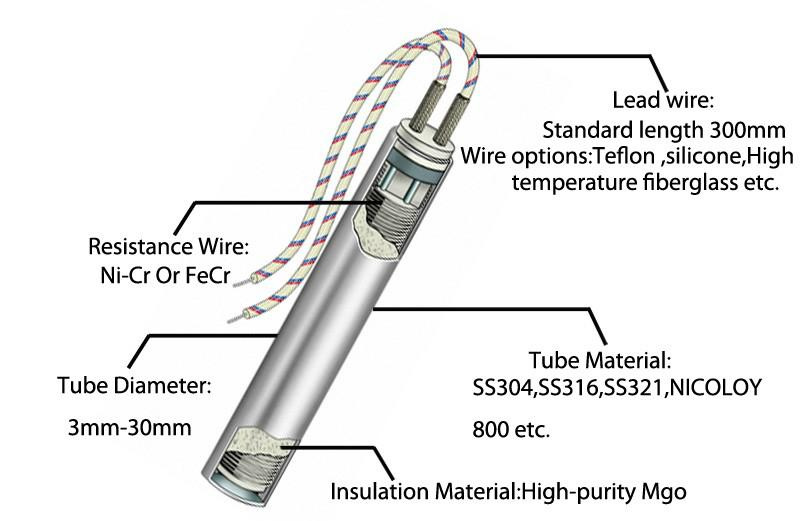

Cartridge heater:
- Tube diameter: Φ3mm-Φ30mm
- Tube Material:SS304;SS316,SS321,NICOLOY800 etc
- Insulation Material:High-purity Mgo
- Reisistance wire element:Ni-Cr or FeCr
- Lead Connection Option: Crimped or Swaged leads
- Lead and type of connection leads, 10" Fiberglass Standard(Wire options:Teflon,silicone high temperature frberglass)
Heat intensity | Not exceeding 30Wcm2 (advisable) |
| Power | Depends on the dimension |
| Escape of current (when cold) | <=0.1mA a 242 v. |
| Insulation (when cold) | 5 Min Ohmios 500 Watts minimum |
| Dielectric strength | 1500v. 1/seg |
| Working temperature | 750ºG max. |
| Tolerance of length | +/-1.5% |
| Tolerance of diameter | -0.01 a -0.06 m/m |
| Tolerance of cut of connexion | +/-15 mlm |
| Power tolerance (w) | 5 % - 10 % |
| Cold areas | Depends on length and diameter 5-25mm |
Commom cartridge can be devideded :
1) High power density (heat area sufuce power 10~25w/cm2)
Working temperature≤450 degrees.
2) middle,low power density (heat area sufuce power 5~11/cm2)
working temperature≤ 300 degrees
Votage:12~250V (or as requirment)

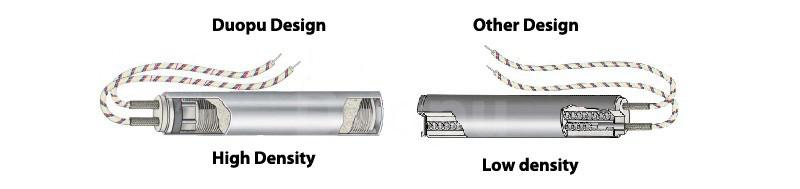

High Density Construction
High-quality stainless steel construction provides long-lasting protection even in the most rugged industrial environments
Protected with a stainless steel sheath, their watt density can reach 50 W/cm2 and their operating temperature can go up to 800°C.
| Cartridge Heater - Technical Data |
| Outer Sheath Material | Chrome Nickel Steel, welded end disc washer of same material.
Maximum operating temperature 750°C
Sheath can be ground for precision tolerance (Only for heaters with crimped on leads) |
| Heating Conductor | NiCr 80:20 |
| Power | ± 10% |
| Voltage | 12 to 440 volts |
| Leakage Current | < 0.5 mA |
| High Voltage | 800 V |
| Surface Loading | Upto 150 Watts/ in 2 |
| Lead Orientation | A) Crimped on Leads : PTFE/Fiberglass Flexible lead crimped on solid pin emerging from the Heater.
B) Swaged in Leads : Flexible Fiber Glass or PTFE leads emerging from within the heater. |

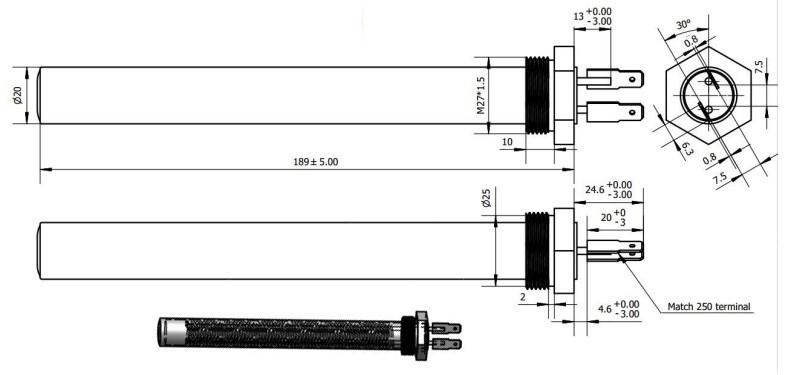

Design drawings
Why choose us:
High-quality materials
Insulation: UCM(UK) Magnesium Oxide Powder ;KANTHAL ,BJH resistance wires ,SS321Seamless Stainless steel tube;OTC(USA) Tateho (Japan) mgo rod...

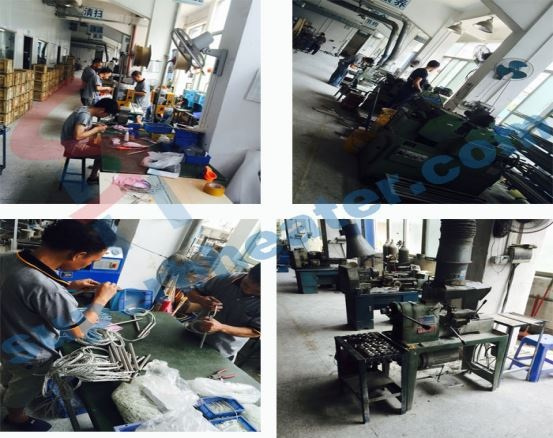

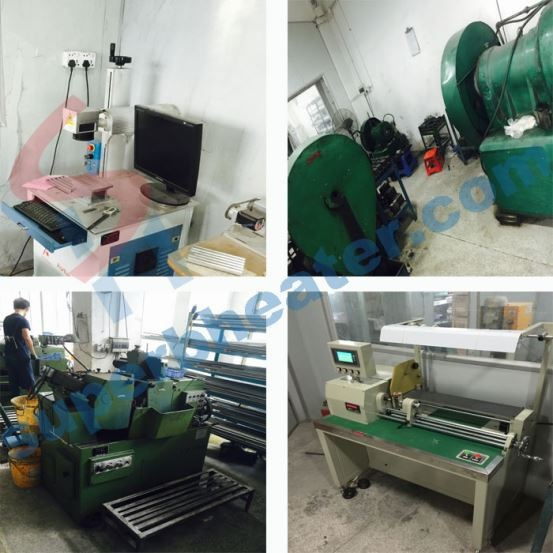

Advanced production and testing equipment
OUR ADVANTAGES:
1.Minimum order: 3pcs
2.Delivery time : in stock 1-2days ,out stock 3-7days
3.More than 100 different sizes stock
4.Products are divided into two grades
A grades:use the The world's top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.
B grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers
5.Provide OEM service.
6.Quality Assurance:Under normal conditions consistent with the design range ,
A grades 365days
B grades 180days
Superb Heater Technology has been focused on the production of 2mm to 40mm China manufacturer high density electric heating element cartridge heater 12v since 1985, which is well-known as one of the leading manufacturers and suppliers of 6.35mm to 23mm standard cartridge heaters lilin cartridge heaters. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
