| Prod Model: |
WPSCH24-100.0A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
colour,or customer's requiremen |
| Case: |
PC+ABS Plastic |
| Max Output Voltage: |
29V ~ 29.5V |
| Float Stage: |
27V ~ 27.1V |
| Charging/Fully Charged: |
LED/REN; LED/Green |
| Voltage Coefficient Is Displayed: |
Yes |
| Apply 1: |
24V Lead acid battery>1000AH,>10Hrs Fully charged |
| Warranty: |
One Year |
| Type: |
Lead-Acid Battery Charger |
| Charging Type: |
Lead acid battery Charger |
| Principle: |
Automatic |
Product Description
--------------------------
Picture browsing,Please visit us at our "Battery Charger " by clicking the link below.
"http://weipasi.en.made-in-china.com/product/BvCQaiYMCKWT/China-24V3A-Automatic-Trickle-Lead-acid-battery-Charger-Storage-Battery-Charger.html"
--------------------------
A good battery charger can protect your battery and extend your battery's service life
1. Charging:LED/Red; Fully charged:LED/Green.
2. High temperature ambient operating:+40°C, Low temperature ambient operating:-20°C
3. It use the advanced soft switch technology, with small size, convenientinst allation, high conversion efficiency, running fully loaded for a long time, stable output current, large capacity, high reliability, long life features etc.
4. The long delay digital counter can ensure the battery form the constant voltage to the float charge reliably every time, avoid the lost control of battery heat caused by the high temperature.
5. Make the damage of battery drop to the loest caused by the dehydration and the polar plate vulcanize which are the two general problems of charger.
Protection:
1. Over-heat protection:
When the temperature of charger shell over 85 degree, the charing current auto reduced to half of the orifinal current, when the temp. over 105 degree, the charger protective turn off, this moment no current input, auto recover charge when the temp. fall to about 80 degree.
2. Short-circuit protection:
When the charger input happen to short-circuit, the charger input auto turn off the charge will charge again after restart.
3. Low-pressure protect:
When the battery simple lattice lower than 1.4V, the charger protective turn off or unable to start to avoid the damage equipment when the battery doesn't match the charger nominal voltage.
Stage charging:
1. Pre-charge:
In order to protect the battery and extend its life, the battery's internal resistance is too large or voltage is too low because the discharged time is too long or it is not used for a long time, the charger will supply low output vurrent for the battery automatically. When voltage of the battery rises to the given voltage value, the charge mode will turn to constant current charge mode automatically.
2. Constant current:
The charger supply constant charge current for the battery.
3. Constant voltage:
Using the pulse width modulation (PWM) tech to control the charging current and output voltage of the charger which ensure the battery is charged fully and avoid over charged.
4. Floating charge mode:
When the voltage of the battery is closing the value of the constant voltage mode, and the current cut down to the given current gradually, that is meant the battery power is full, then the pilot lam will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment, the battery can be stopped charge or kept on flating charge.
| Model | Spec | Max
Output
Current | Rated
Input
Voltage | Max
Output
Voltage | Input
Frequency | Float
stage | Dimension
(mm) | Weight
(kg) |
| WPSCH6-1.0A | 6V1.0A | 1.0A | 100~265V | 7.4V | 47-63Hz | 6.9V | 115*55*33 | 130g |
| WPSCH6-2.0A | 6V2.0A | 2.0A | 100~265V | 7.4V | 47-63Hz | 6.9V | 115*65*45 | 220g |
| WPSCH12-1.0A | 12V1.0A | 1.0A | 100~265V | 14.8V | 47-63Hz | 13.8V | 115*50*33 | 135g |
| WPSCH12-1.3A | 12V1.3A | 1.3A | 100~265V | 14.8V | 47-63Hz | 13.8V | 110*65*45 | 180g |
| WPSCH12-2.0A | 12V2.0A | 2.0A | 100~265V | 14.8V | 47-63Hz | 13.8V | 122*65*45 | 250g |
| WPSCH12-4.0A | 12V4.0A | 4.0A | 100~265V | 14.8V | 47-63Hz | 13.8V | 150*90*60 | 320g |
| WPSCH12-6.0A | 12V6.0A | 6.0A | 100~265V | 14.8V | 47-63Hz | 13.8V | 165*95*60 | 450g |
| WPSCH12-8.0A | 12V8.0A | 8.0A | 100~265V | 14.8V | 47-63Hz | 13.8V | 180*95*60 | 450g |
| WPSCH12-10.0A | 12V10.0A | 10.0A | 100~265V | 14.8V | 47-63Hz | 13.8V | 180*95*60 | 450g |
| WPSCH12-20.0A | 12V20.0A | 20.0A | 100~265V | 14.8V | 47-63Hz | 13.8V | 185*110*80 | 650g |
| WPSCH24-3.0A | 24V3.0A | 3.0A | 100~265V | 29.6V | 47-63Hz | 27.6V | 162*92*60 | 380g |
| WPSCH12/24-12/6A | 12V6.0A
24V3.0A | 6.0A
3.0A | 100~265V | 14.8V
~29.6V | 47-63Hz | 13.8V
~27.6V | 190*110*70 | 750g |

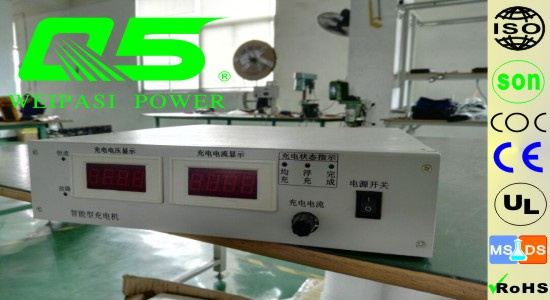

| WPSCH24-100A | 24V100A | 100A | 85~400V | 29.5V | 50~60Hz | 27.1V | 350*100*400 | 15kg |
ZhongShan Weipasi Power Co., Ltd. is a professional and leading manufacture of battery company. We manufacture the battery from raw material to finished products, Have our own plates factory, and a sister lighting company Special Owl lighting technology Co., Ltd.
We are very confident that we can satisfy you with good quality and best price. Our products include Maintenance-Free car battery for JIS/DIN/BCI series, Dry-Chargd car battery for JIS/DIN/BCI/CN series, UPS (Uninterruptible power supplies) battery, emergency lighting facility battery, electric toy battery, backup power battery, Solar Power Systems battery, Power tools battery, elevator battery, lawn mower battery, vacuum cleaners battery, telecommunication equipments battery, electric golf car battery, electric scooter battery, electric wheel chair battery, electrically-operated-gate/power-door/auto-door battery, medical equipments battery, remote Switching battery, control equipments battery, marine equipment battery, alarm and security devices battery, electric charger power systems battery, navigation systems battery, electronic instruments, monitor/Control Systems battery and battery for transformer substation, microwave relay station, power plant, remote sensing device, energy storage of solar/wind power generator.
Sister lighting company Special Owl lighting technology Co., Ltd. Products include LED rechargeable flashlight, head lamp, desk lamp, searchlight, emergency light, mosquito swatter, bulb, barn lantern, portable solar lighting, solar power system...
We has already gained many well-known certificates like ISO 9001: 2000, CE, UL, COC/VOC, SONCAP, MSDS, IEC test report and RoHS, and its batteries are highly recognized all over the world and widely applied in automobiles, marine boats, electronic bicycles, vacuum cleaners, air pumps and all types of UPS and toys. Meanwhile, they are also used in lots of systems as telecommunication, emergency lighting, security and burglar alarm, power station, solar, nation defense etc. Furthermore, we are able to provide customers newly-developed products per their requirements.
We are looking for agents or cooperators in your country. We sincerely invite you to be. Please contact to tell me your opinion about this idea. However, whatever information you want to know about us, please contact us.
