24V1kw LCD High Frequency Pure Sine Wave Solar Inverter with Battery Cabinet

Name: 24V1kw LCD High Frequency Pure Sine Wave Solar Inverter with Battery Cabinet
Brand: all-electronics-online.com
SKU: 830456155
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	US $ 1-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	24V1KW
Weight:	30kg

Product Description

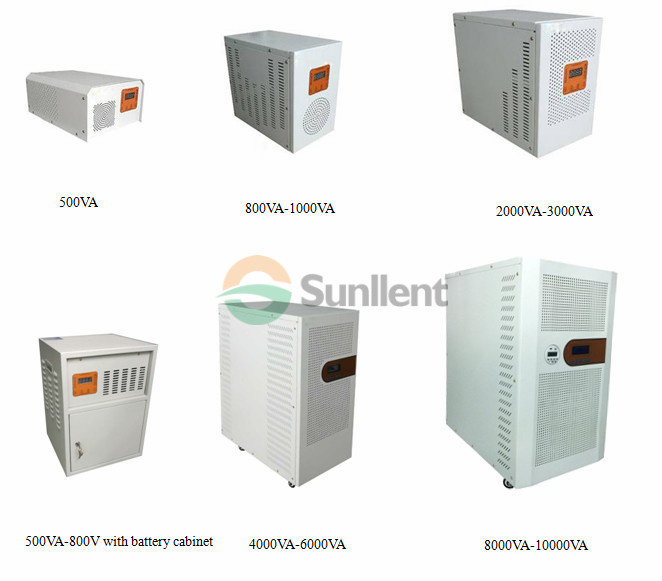

24V1KW LCD high frequency pure sine wave solar inverter with battery cabinet

High Frequency Inverters (HF)
The large majority of inverters available in the retail market are high frequency. They are typically less expensive, have smaller footprints, and have a lower tolerance for industrial loads. High frequency inverters have over twice the number of components and use multiple, smaller transformers. Their application is appropriate for a wide variety of uses like tool battery chargers, small appliances, A/V and computers, but have a decreased capacity for long term exposure to high surge loads like pumps, motors, and some high-torque tools.

Model	SNS0.3K	SNS0.5K	SNS1K
Rated voltage(W)	240	400	800
The maximum input current of the pv array(A)	15	20	20
Battery voltage(V)	12/24	12/24/48	24
Size(LWH)mm	290260150	330260160 290260150 460430570	460250200 540460590
Net weight(kg)	5	7/6/26/5.5	8.5/30

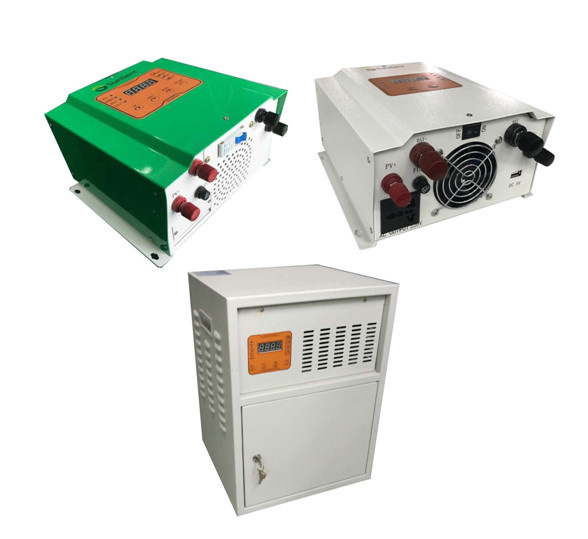

We also have power frequency series photovoltaic controller & Inverter integrated machine for your choice.

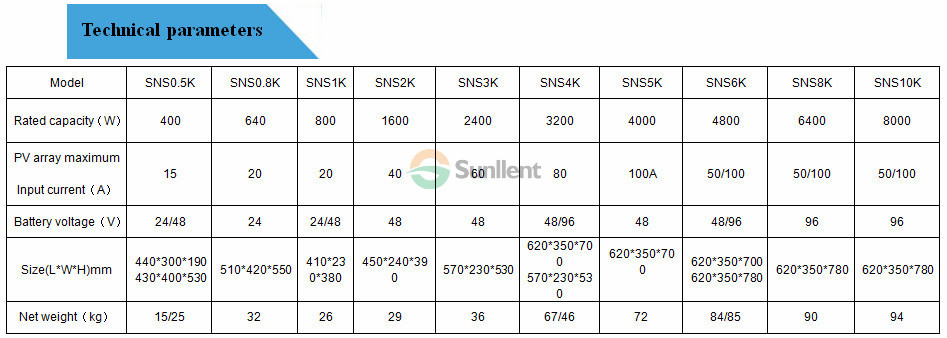

Technical parameters

Common parameters

AC input	Input voltage allowrance range(VAC)	170~255(±3%)
	Frequency range(HZ)	50/60(±3%)
	Switching mode (optional)	Power grid as priority/inverter as priority
	Switching time(ms)	≤10
Inverter parameter	Output waveform	Sine wave(liner load)
	Output voltage	220±5%(VAC)
	Output frequency	50/60(±2%)
	Voltage(THD)	≤5%( liner load )
	Rate of total harmonic distortion	≤3%
	100%~120% over-load	Shut off in 1min
	Over 120% over-load	Shut off in 1s
	Dynamic response (1-100%)	5%
	Current peak coefficient	3:1
	Peak efficiency	≥80%
Protection function		Low-voltage, over-voltage, over-load, short-circuit, overheating, false connection and etc
Display mode		Digital display/LCD
Communication function		RS485(optional)
Heat-dissipating method		Forced-air colling

Company information
Jiangsu Sunllent Electrical equipment Co.,Ltd is one of the most professional solar power system and solar home system manufacturer in China , with the center of photovoltaic and wind power products,solar inverter, off grid photovoltaic system. industry covers "energy, electric power, environmental protection, energy saving" four major areas, integrated with "research and development, design, production, sales and system engineering services". Based on independent innovation, has developed a series of products with independent intellectual property rights and leading level.

Certificates

Packaging & Shipping

Customers& Exhibitions

FAQ
1.Q: Where is your factory located?
A: Our factory is located in Yangzhou City, Jiangsu Province, China, near Shanghai.

2.Q: How can I go to your factory?
A: You can fly to Shanghai Pudong or Hongqiao International airport directly, and then take a train or bus to our factory. If you are in China now, you can fly to Yangzhou, or take a train or bus to our city directly.
You are sincerely welcome to visit our factory at any time!

3.Q: Are you a factory, trading company or a third party?
A: We are a solar inverter and solar system factory.

4.Q: What is your minimum quantity, can you send me sample?
A: We are honored to offer you samples. Our minimum ordered quantity is 1 set.

5.Q:How does your factory do regarding quality control?
A: Sunllent always put the quality in first place. We control the quality from the start to the end. We have gained ISO, CE, Rohs authentication so far.
