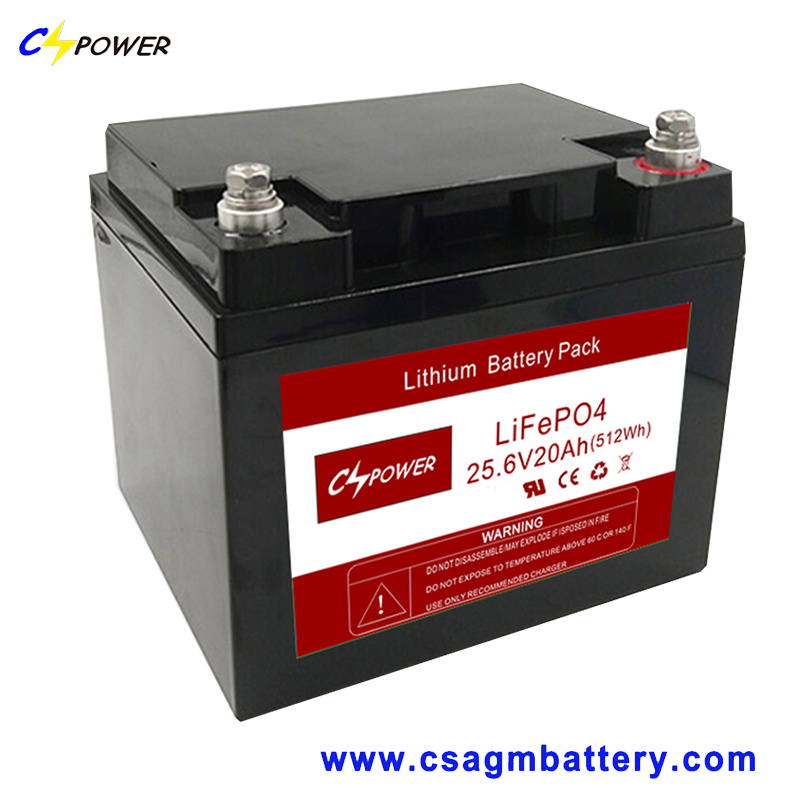

24V20ah Lithium Battery LiFePO4 with Longest Life 20years
| Price: |
US $ 190/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
BT-B2420E-6-A |
| Model: |
LiFePO4 Lithium Battery 24V20ah |
| Dimension: |
197*165*169mm |
| Weight: |
5.8kgs |
| Color: |
Black and Dark Grey |
| Design Life: |
20 Years |
| Warranty: |
3 Years |
| Delivery Time: |
15-20days |
| Certificate: |
Ce, Un38, Un38.3 |
| 100% Dod: |
Over 2000cycle Times |
| Internal Impedance: |
<5.0mΩ |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
LiFePO4 Lithium Battery 12V |
| Rated Capacity: |
24V |
| Usage: |
Power Storage |
| Electrolyte: |
Organic Solvent + Lithium Salt + Additives |
Product Description
24v20AH Lithium battery LiFePO4 with longest life 20years
Characteristics of lithium battery
1. Safe - Will not explode even in Fire.
2. Long cycle life - 100% DOD cycle for 2000 times
3. Excellent high temperature performance - can work well under 60 ° C operating environment
4. High energy density - lighter and smaller
5. 10C Magnification Discharge
6. Maintenance-free
7. No contamination Characteristics
Lithium Iron Phosphate (LiFePO4)Battery, the longest life among battery field.
Voltage: 12V, 24V.
Capaicty: upto 12V150Ah, 24V50Ah.
Designed floating service life: over 20years @25ºC
Cyclic usage: 100%DOD, >2000 cycles
80%DOD, >3000 cycles
Features for CSPOWER LiFePO4 Battery
CSPOWER LiFePO4 battery is newest lithium iron battery adopts advanced technology, Own Longest Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Advantages for CSPOWER Lithium Iron Battery
Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.
Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
Cycle durability for a single cell is 2000 cycles, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.
Higher discharge rate, faster charging and dischargingWhen there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc
BMS Specification
Overcharge detection function
Over discharge detection function
Over current detection function
Short detection function
Balance function
Temperature protection
Application
Electric Vehicles,electric mobility
Solar/wind energy storage system

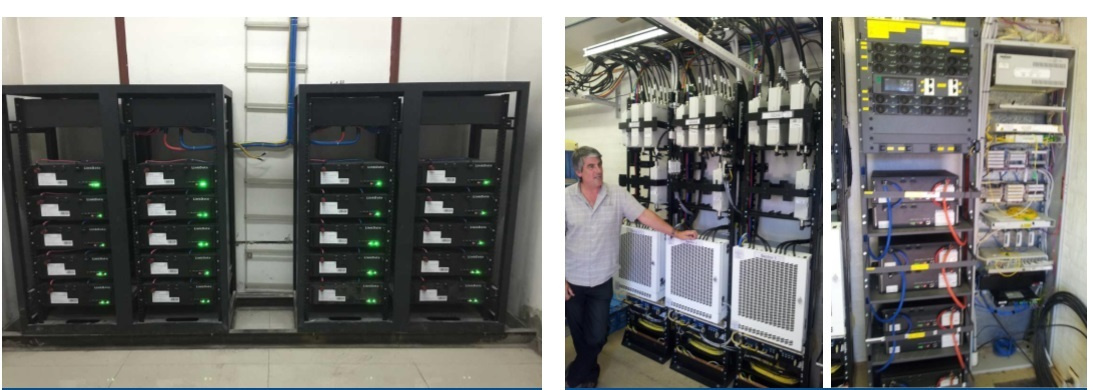

UPS,backup power
Telecommunication
Medical equipment
Lighting and so on
Process of production
| MODEL | Voltage | Capacity | Dimension (mm) | Weight (kg) |
| (V) | (Ah) | Length | Width | Height | (±3%) |
| BT-B1207F-6-A | 12 | 7 | 151 | 65 | 95 | 1.2 |
| BT-B1212F-6-A | 12 | 12 | 151 | 98.5 | 98.5 | 1.76 |
| BT-B1220F-6-A | 12 | 20 | 181 | 76 | 167 | 3.7 |
| BT-B1240F-6-A | 12 | 40 | 197 | 165 | 169 | 5.8 |
| BT-B1250F-6-A | 12 | 50 | 197 | 165 | 169 | 9 |
| BT-B12100F-6-A | 12 | 100 | 330 | 171 | 215 | 16 |
| BT-B12150F-6-A | 12 | 150 | 532 | 207 | 220 | 19 |
| BT-B2410E-6-A | 24 | 10 | 151 | 98.5 | 98.5 | 3.7 |
| BT-B2420E-6-A | 24 | 20 | 197 | 165 | 169 | 5.8 |
| BT-B2450E-6-A | 24 | 50 | 330 | 171 | 215 | 16 |
More detailed information, welcome to our website for visiting: www.csagmbattery.com CSPOWER BATTERY TAGS:- lithium-ion battery, LiFePO4 Battery;rechargeable battery pack,19inch battery pack for telecom,energy sotrage battery,sealed lead acid battery,rechargeable lead acid battery
- 2V battery,long life span battery,battery pack ,12V battery, battery for 48v system,6V solar ups battery
- deep cycle deep acid battery, backup energy battery, deep cycle solar battery,solar panel battery,solar power storage battery,solar battery,home use storage battery
- marine battery,telecom battery, UPS battery,industrial battery,automotive battery, starting lead acid battery, forklift battery,emergency lighting battery,Electric Vehicle batteries,Electric Wheel Chair battery, Power Tools battery
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
