24VDC 1.43n. M 312W High Torque High Quality DC Gaer Motor

Name: 24VDC 1.43n. M 312W High Torque High Quality DC Gaer Motor
Brand: all-electronics-online.com
SKU: 787612745
Availability: InStock
Rating: 4.4 (91 reviews)

Price:	US $ 105.38-130/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	80ZYT158-2426-80PG7 REV5
Application:	Household Appliances
Operating Speed:	Adjust Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brush
Type:	Zyt
Certification:	SGS
Brand:	Sunrise Motor

Product Description

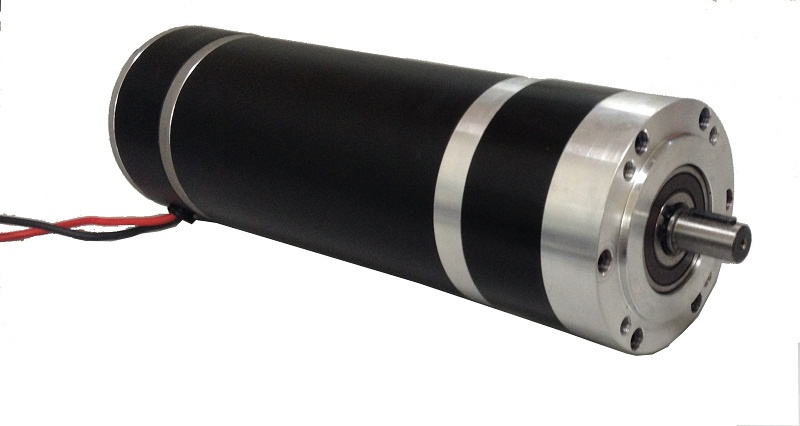

PMDC GEAR MOTOR

80ZYT158-2426-80PG7
Voltage: 24VDC
Speed: 2100rpm
Torque: 1.43N.m
Power: 312W
Encoder : 2PPR
Gear ratio: 1:7

Model	Voltage (V DC)	No Load		Rated Load			Length (mm)
Model	Voltage (V DC)	Current (A)	Speed (r/min)	Torque (N.m)	Current (A)	Speed (r/min)	Length (mm)
880ZYT158-2426-80PG7	24	0.3	2600	01.43	18.6	2100	125

We can produce motor according to customer's requirements.

Motor drawing:

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
