24VDC 0.11nm Brushless DC Servo Motor

Name: 24VDC 0.11nm Brushless DC Servo Motor
Brand: all-electronics-online.com
SKU: 751307285
Availability: InStock
Rating: 4.4 (144 reviews)

Price:	US $ 33.5-47.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	57BLYS02-1000Z
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	57blys02-1000z
Voltage:	24VDC
Rated Speed:	3000rpm
Rated Torque:	0.11nm
Power:	35W
Encoder:	1000CPR
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	Blys
Brand:	Sunrise Motor

Product Description

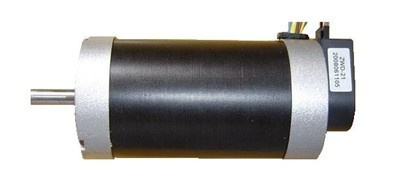

Brushless DC Servo Motor

Model: 57BLYS02-1000Z
Voltage: 24VDC
Rated speed: 3000rpm
Rated torque: 0.11NM
Power: 35W
Peak torque: 0.33NM
Back emf constant: 6.3V/KRPM
Torque constant: 0.66N.M/A
Insulation class: B
Encoder: 1000rpm

Remark:
Motor sample is available.
Motor can add gearbox.

We can also produce motor according to customer's requirements.

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
