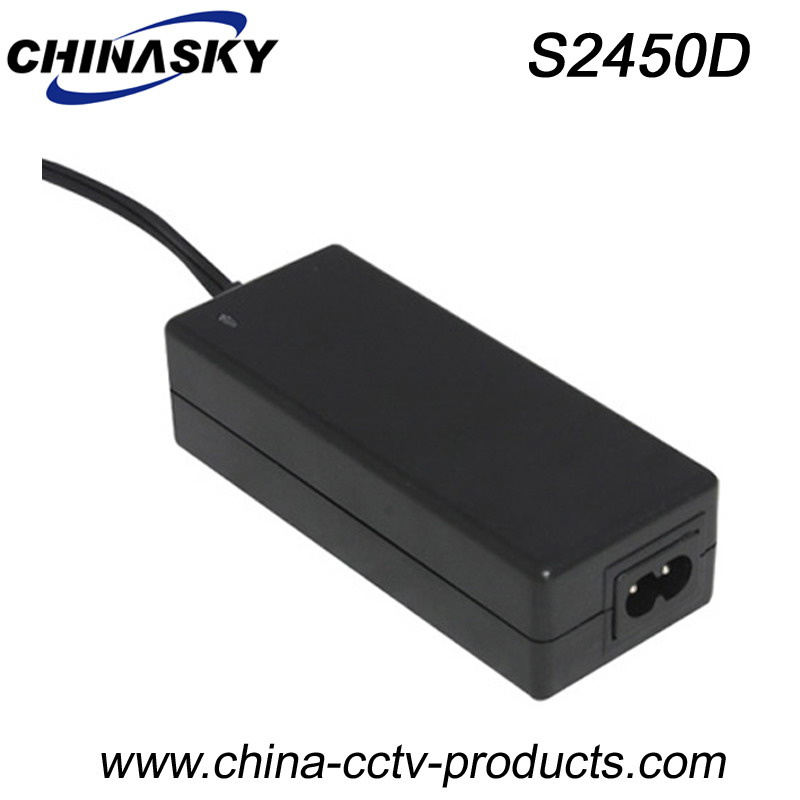

24VDC 5A Desktop Type CCTV Power Adapter with Ce (S2450D)

Name: 24VDC 5A Desktop Type CCTV Power Adapter with Ce (S2450D)
Brand: all-electronics-online.com
SKU: 787194255
Availability: InStock
Rating: 4.6 (73 reviews)

Price:	US $ 12.8-30/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S2450D
AC Plug:	EU, or Us, or UK, or South African Type
DC Plug:	5.52.112mm
Output Voltage:	24VDC±5%
Input Voltage Frequency:	50Hz-60Hz
Applications:	CCTV Surveillance System
Output Type:	DC
Connection:	Desktop
Usage:	CCTV
Certification:	IEC60950-1, Ce
Brand:	Chinasky

Product Description

24VDC 5A Desktop Type CCTV Power Adapter with CE (S2450D)

Description
The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It's also used for access, building/house control, intrude alarm and other light-current device.

24V 5A CCTV Surveillance Security Camera Power Adapter
With CE, IEC60950,RoHS, etc approval
Protection within Auto recovery: Overload/Overcurrent/short-circuit
No load standby power ≤0.5W
Efficiency: 88 % Min.
Warranty: 2 years

Individual DC Power Supply Features
1.      24V DC 5Amp Output
2.      100-240 VAC 50/60Hz Input
3.      Uses 2.1mm Plug - Universal Standard for CCTV and IP Cameras
4.      Works with Pre-Made Siamese CCTV Cables
5.      Works with spools of RG59 Siamese Cable with PT-4 power leads
6.      Switching Power Supply
7.      Fully Regulated

Technical specifications:

Model	S2450D
Power	120W
Type	Desktop
Input	Input Voltage	100-240VAC
	Input Voltage Frequency	50Hz-60Hz
	AC Cord	1.2m
	AC plug	EU, or US, or UK, or South African Type
Output	Output Voltage	24VDC±5%
	Output Current	5A
	DC cord	1.2m
	DC plug	5.52.112mm
	Regulated	Yes
Circumstances	Working Temperature	0ºC-+50ºC
	Storage Temperature	-20ºC-+80ºC
	RH	20%-90%

Place of Origin:	China
Brand Name:	Chinasky
Model Number:	S2450D
Certification:	CE(LVD,EMC), IEC60950

Minimum Order Quantity:	Negotiable
Packaging Details:	White Paper Box or Negotiable
Delivery Time:	6-15 working days
Payment Terms:	T/T, Western Union
