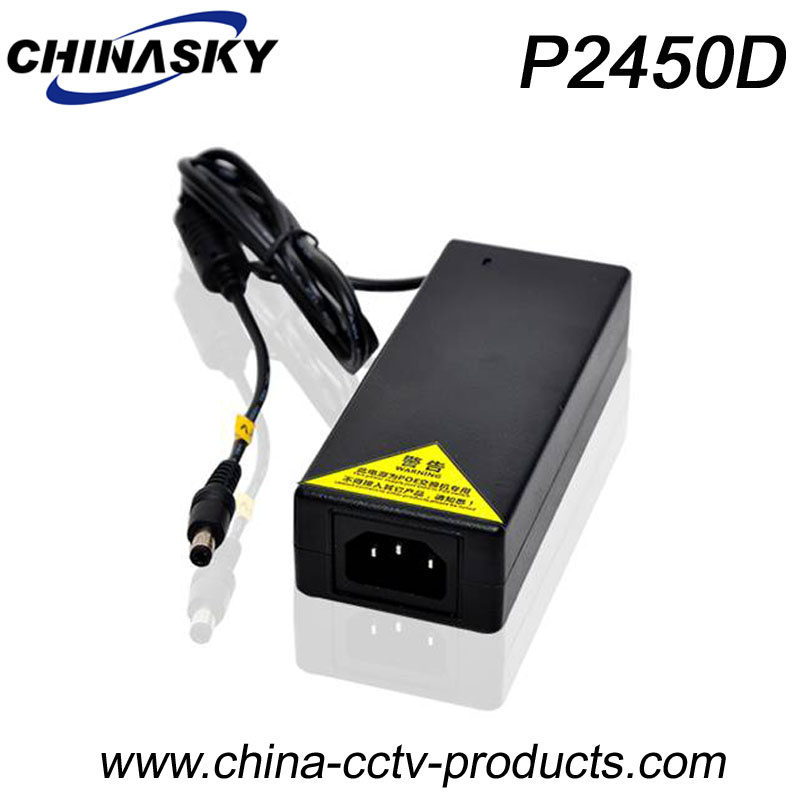

24VDC 5A Poe Switch Power Supply Adapter (P2450D)
| Price: |
US $ 7.5-8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
P2450D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
120W |
| Input Voltage Frequency: |
50Hz-60Hz |
| Output Voltage: |
DC24V |
| Dimension: |
134*61*35mm |
| Usage: |
Switching |
| Output Type: |
DC |
| Connection: |
Desktop |
| Bluetooth Standard: |
No |
| Brand: |
Chinasky |
Product Description
24VDC 5A POE Switch Power Supply Adapter (P2450D) This type POE Power Supply Adapter is designed by our R&D team, input voltage AC 110V-240V 50/60Hz, output voltage is DC24V, power is 120W,cooperated with POE switch, can be supply power to POE switch. | Product | POE Switch Application Power Supply Adapter |
| Model | Power Supply Adapter P2450D |
| Input Voltage | AC 110V-240V 50/60Hz |
| Output Voltage | DC24V |
| Output voltage accuracy | ≤±2% Vo |
| Output Current | 5000mA |
| Output Power | 120W |
| Short circuit protection | It will be a burp protection after short circuit, the automatic recovery appeared after the short circuit been removed |
| Over current protection | ≤110%-200%I0, it will be a burp protection after over current protection, over current protection under the condition of the state to reduce the load can automatically resume normal output |
| Over Voltage Protection | Null |
| Idle standby power consumption | ≤1.5W |
| Efficiency | ≥80% |
| Working frequency | 65KHz |
| Ripple and noise | ≤240mV |
| Surge current | <50A |
| AC leakage current | <10mA |
| High pressure | Input -output 1.5KV,input -housing 1.5KV |
| Insulation resistance | >=50MΩ |
| Lightning strike | Null |
| Standard | GB8898-2011 GB13837-2012 GB17625.1-2012 |
| Input | 3-PIN AC |
| Working environment | 0ºC~+40ºC |
| Weight | 0.3kg |
| Valum | 134*61*35mm |
Production Display
| Place of Origin: | China |
| Brand Name: | Chinasky |
| Model Number: | P2450D |
| Minimum Order Quantity: | Negotiable |
| Packaging Details: | Paper Box |
| Delivery Time: | 5-12 working days |
| Payment Terms: | T/T, Western Union |
| Nearest Port: | Ningbo or Shanghai |
