| Prod Model: |
Bright Star Series 1-3Kva |
| Markets: |
North America,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black & White |
| Output Power Factor: |
0.8 |
| Display: |
Digital LCD Display |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Load/Current/Voltage, Short Circuit etc |
| Brand: |
Upsen or OEM |
Product Description

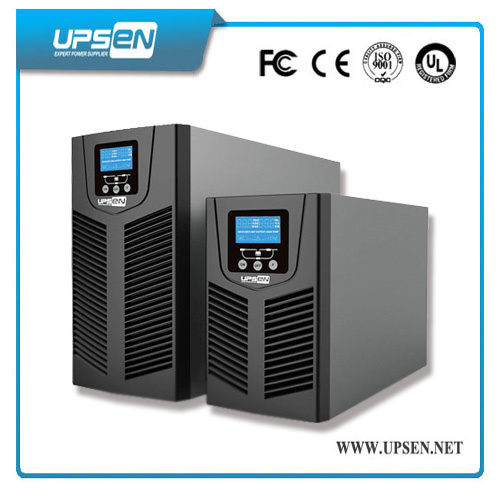

24Vdc to 220Vac Solar Online UPS Power with PV Input1:24V UPS, 220V UPS, Online UPS, Solar UPS, Solar UPS Power, PV UPS, Photovoltaic UPS, DC AC UPS
2:Solar UPS with PV Input 24-150Vdc
3:Solar UPS with 24/48Vdc and Mppt Charger 50A
4:Solar UPS with Single Phase Input and output
5:Solar UPS with mpppt charger up to 50Amp
Working Principle
1: Optional battery inspection module can test specification of every battery, and show on display. If battery faulty, will alarm immediately and inform administrators.
2: If AC loose, stop AC-DC booster, switch on batter SCR Q1, make battery and PV works together to power for the load.
3: If PV power is bigger than load power, MPPT charger autoatically charges the battery. MPPT charger works in fload voltage mode, MPPT mode if battery voltage and DC CAP Voltage are high.
4: Excellent load characters can fulfill with suddenly change load from 0 to 100%, and no need to invert to bypass, ensure output stable and reliable.
Technical Specification
Model | B1K | B2K | B3K |
Rating | 1KVA/800W | 2KVA/1600W | 3KVA/2400W |
Input | Rated Voltage | 220V/230V/240Vac |
Phase | Single Phase with ground |
Frequency | 50Hz(60Hz) |
Power Factor | 0.99 |
Generator | Support generator input |
Rated Current | 5A | 10A | 15A |
Input Thdi | ≤10% |
Protection | 10A AC fuse | 20A AC fuse | 30A AC fuse |
Output | Rated Voltage | 220/230/240Vac |
Voltage Range | 200VAC/208VA/220VAC/230VAC/240VAC |
Voltage Regulation | ±2% |
Frequency | 50HZ(60Hz) |
Overload | Overload Warning Only | 105%±5% |
50s, then transfer to Bypass and alarm | 105%±5% |
25s, then transfer to bypass and alarm | 125%±5%< Load ≤150%±5% |
300ms, then transfer to bypass and alarm | Load > 150%±5%, |
Battery | Rated Voltage | 24VDC | 48VDC | 72VDC |
PV Charger | Charging Method | 2 staged: fast carge (MPPT), floating charge |
Input Working Voltage Range | 30V-150V | 60V-150V | 90V-150V |
Max Input DC Voltage | 160V |
Max PV Power | 50S, then return to rated power (105%±5% |
25S, then return to rated power (125%±5% |
1S, then return to rated power (PV Power >150%) |
Rated charging current | 50A | 50A | 33A |
Rated charging power | 1600W | 2400W | 2400W |
Overcharge protection | 30V±1V | 60V±2V | 90V±2V |
Conversion Efficiency | >90% |
PV Modules Utilization Rate | >98% |
Floating voltage charging | 27.5V | 55V | 82.5V |
Thermal method | Intelligent forced air cooling |
Over temperature protection | 85ºC |
Automatic Retransfer | Yes |
Transfer Time | 0ms |
Short Protection | Cut off output within 4 cycles |
Communication | RS232 Interface |
Monitor Software | Appending with UPS |
Environment | Working temperatures | 0ºC~40ºC |
Altitude | <1000m |
Audible noise | ≤45db |
Storage temperature | 15ºC ~ 45ºC |
Working humidity | 20%~95% |
Dimension (mm) | 335x186x325 | 425x186x325 |
Weight (Kg) | 10 | 11 | 12 |
Standard |
Ems | ESD | IEC61000-4-2 Level IV |
RS | IEC 61000-4-3 Level III |
EFT | IEC61000-4-4 Level IV |
Surge | IEC61000-4-5 Level IV |
Emi | Conducted | EN55022 Class A |
Radiated | EN55022 Class A |
Safety | GB4943-2001/IEC62040-1 |
Transportation | Drop test | GB-T4857-18 |
Vibration test | B-WR1-129(GB-T14715-93) |
