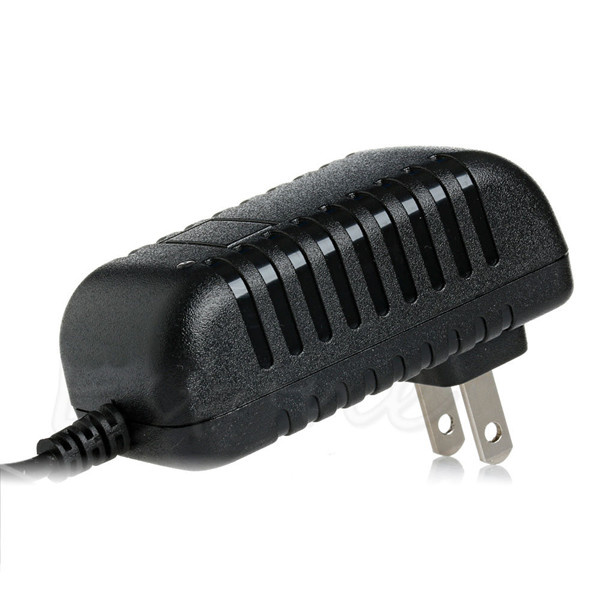

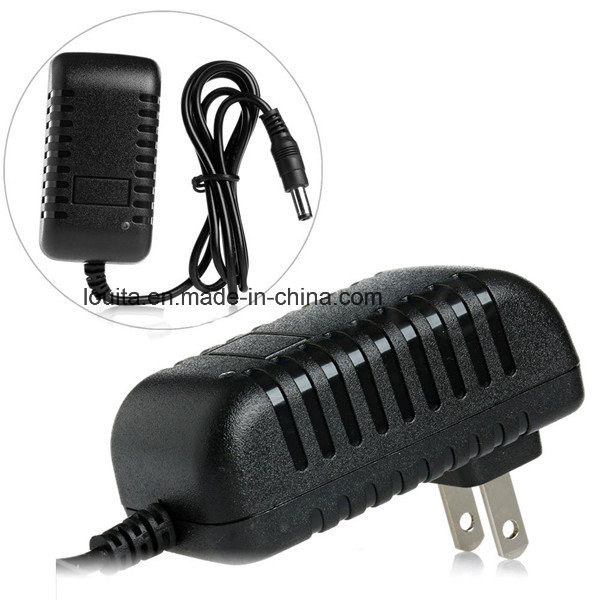

24W Switching Power Supply for Us Plug

Name: 24W Switching Power Supply for Us Plug
Brand: all-electronics-online.com
SKU: 793586285
Availability: InStock
Rating: 4.7 (51 reviews)

Price:	US $ 1.9-2/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-2A
Rated Current:	300mA
Rated Power:	3.6W
Operating Temprature:	-10~50degree
Storage Temperature:	-40-80
Relative Humidity:	20%-90%Rh
Usage:	Phone,Display,Laptop,Game Player
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Output Type:	AC or DC
Power Supply Voltage:	100-240VAC

Product Description

Basic Info

Place of Origin:	Shenzhen, China (Mainland)	Brand Name:	louita	Model Number:	LYD-2A
Output Power:	1 - 50W	Output Type:	Single	Input Voltage:	100-240Vac
Output Voltage:	12V	Output Frequency:	50-60Hz	Output Current:	2A
Color:	black/white	Connection:	wall plug	Output current:	2A
Output voltage:	12V	Input frequency:	50~60Hz	Output power:	24W
Input voltage:	100-240Vac	MOQ:	500	Delivery time:	7-10days
Samples delivery time:	3-4days

Product Description

Rated input: 100-240VAC 50/60Hz  Max: 90-264VAC 47/63Hz
Rated output: 12VDC±5%
Rated current: 300mA
Rated power: 3.6W
Ripple and the noise: <120mVp-p
Short circuit protection:: removed type disconnected, quick recovery.
Over current protection: 130%-150%
Over voltage protection: 115%--135%
Operation temperature: -10~50°C
Relative humidity: 20%-90%RH
Storage temperature: -40~80°C
Hi-pot: 5mA 3KVA 1min
Insulation resistance: 100M ohms
DC  specification: 2.1*5.5(According to the guest requirements)

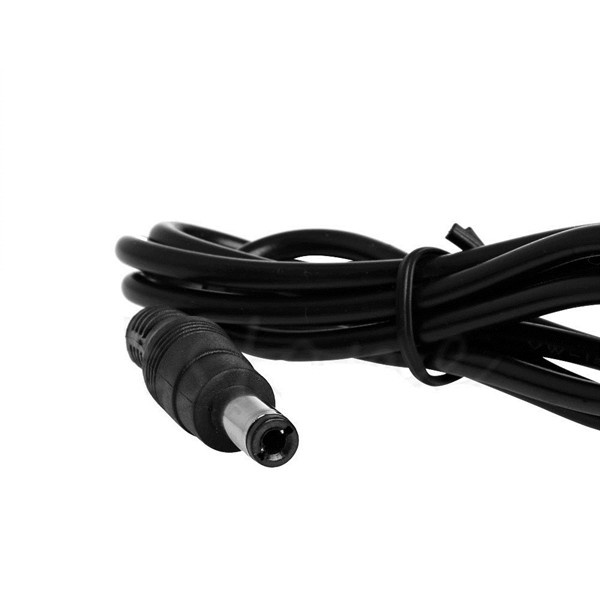

DC  line:1.5M (According to the guest requirements)

Power specifications:
China, USA, UL, Australia, Europe, Korea, Japan and other rules (according to the customer demand customization)

Use field:

Products applicable humidifier, air purifier, electronic refrigerator, LCD monitors, LED lamps and lanterns, communication equipment, audio-visual products, security, computer case, digital products and equipment, charger (lithium battery, etc) products Ni-mh charging, the guarantee period 1 year, according to customer, voltage current parameters requirements.

Application:

With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.

Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
