25-100V Dimming Hf Microwave Sensor

Name: 25-100V Dimming Hf Microwave Sensor
Brand: all-electronics-online.com
SKU: 820166975
Availability: InStock
Rating: 4.6 (40 reviews)

Price:	US $ 4.5-9.9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-DP22
Warranty:	2 Years
Sample Lead Time:	Within 2 Days
Bulk Order Lead Time:	Within 8 Days
Package:	Customized Color Box or White Box
Type:	Microwave Sensor Switch
Wires:	PNP (',Three-Wires)
Standard:	Standard
Certification:	CE
Principle:	Microwave Sensor
Application:	Corridor,Basement,Toilet etc.
Size:	Square

Product Description

KA-DP22 Dimming Microwave Sensor Specifications:

1) Power Source: 25-100V
2) Power Frequecy: 50/60Hz
3) HF system: 5.8GHz CW radar,ISM band
4) Transmitting Power: <0.5mW
5) Power Consumption: <0.5W(standby); <1W(operation)
6) Detection Zone: 16m x 6m (Diameter x Height)
7) Detection Sensitivity: 10%,25%,50%,75%,100%
8) Delaying Time: 10s,30s,90s,3min,20min,30min ( adjustable)
9) Daylight Sensor: 10lux, 50lux, Disable
10) Stand-by Dimming Level: 10%, 20%, 30%, 40%, 50%
11) Stand-by Time: 5s, 5min, 10min, 30min, 1h, Disable
12) Installation Height: 6 meters max.
13) Motion speed:0.3-3m/s
14) Detection Angle: 360 degree
15) Working Temperature: -40~+75°C
16) Rated Load: 150W max. LED light

KA-DP22 Introduction:

When used in combination with common constant current LED drivers, the sensors can achieve 3-step dimming
function, 100%---> low light--->off. It is perfect for use in some areas that requires a light change notice before
totally switch off.

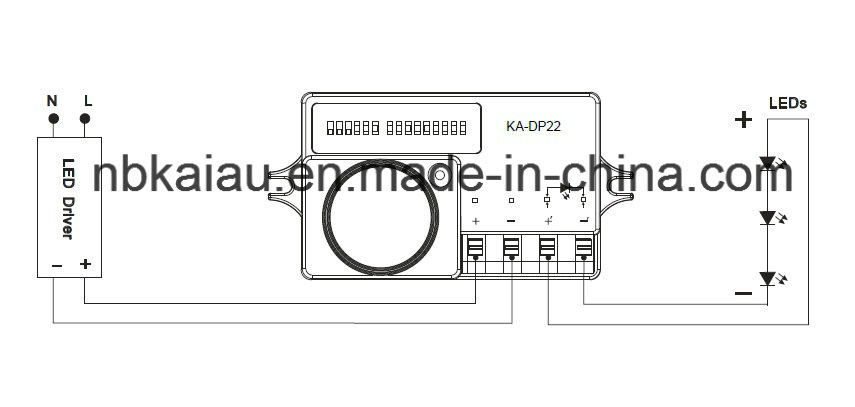

KA-DP22 Wiring Diagram:

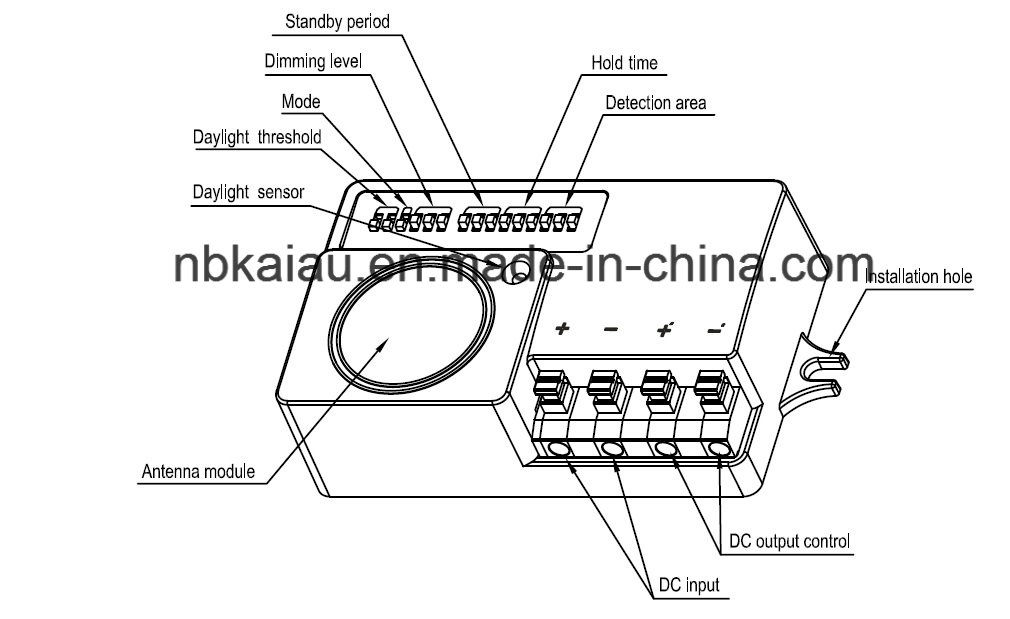

KA-DP22 Components Description:

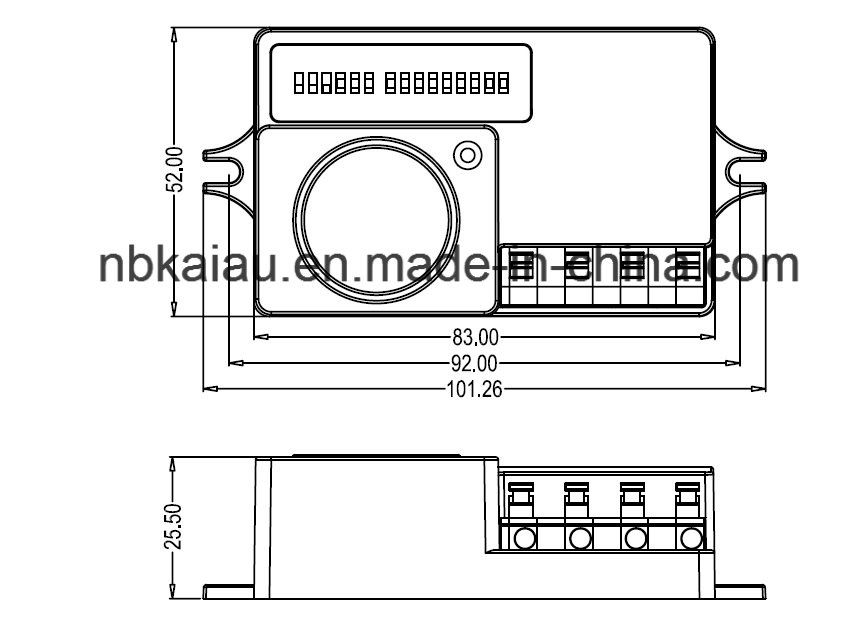

KA-DP22 Dimension:
