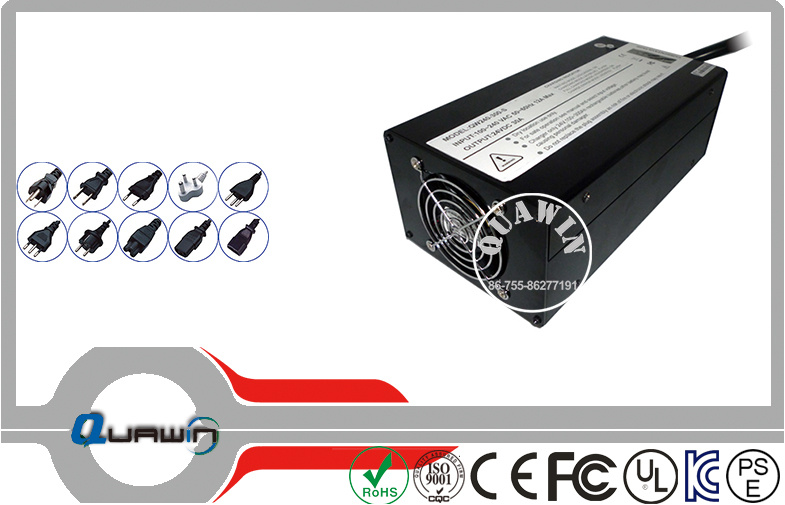

25.2V 2A Li-ion Lithium Polymer Battery Charger

Name: 25.2V 2A Li-ion Lithium Polymer Battery Charger
Brand: all-electronics-online.com
SKU: 729630935
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW222-020-L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of Battery:	22.2V Li-ion or Li-Polymer Battery Pack
Warranty:	One Year
Packae:	White Box and Standard Export Cart
Delivery Date:	20days
Type:	Li-Polymer Battery
Charger Type:	Electric Charger
Nominal Voltage:	25.2V
Socket Type:	as Per Request

Product Description

22.2V Li-ion Lithium Polymer battery Charger(25.2V 2A)

Quick Detail:
Brand Name: QUAWIN
Model Number: QW222-020-L
Use: 22.2V Li-ion or Li-polymer battery pack
Type: Electric
Place of Origin: Guangdong China (Mainland)
Battery charger: Automatic battery charger 25.2V
Certificate: CE FCC UL SAA PSE KC RoHS
Color: Black
Input voltage: 100-240VAC 50/60Hz
Output voltage: 25.2V
Output current: 2A
Output power: 50.4W
Charge mode: CC- CV(Constant Current- Constant Voltage)
Output Connector: DC Jack, Small crocodile clip, Cigar lighter, XRL, Ring terminal

Packaging & Delivery:
Inner package: White box/polybags/at your request outer package: Carton
Delivery Detail: Sample within 5 work days, 7~25 days for bulk order

Specifications:
22.2V Li-ion or Lithium Polymer battery PACK

Features:
Charging mode: CC- CV(Constant Current- Constant Voltage)
High efficiency and low power consumption
Stabilized output and low noice
Efficiency(at 100% load): >=80%
Operating temperature: -10C ~ 45C
Storage temperature: -20C ~ 70C
Operating humidity: 5%~90%RH

Specification:
Input: AC 100-240V 50-60Hz 3.0A
Output: DC 25.2V
Charging current: 2A
Weight: 400g(only body)
Dimension: L120*W60*H38mm
Safety protections:
Over Voltage protection
Short Circuit protection
Polarity error protection
Over power protection

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
Charging: Red LED
Battery Full: Green LED

ITEM	QW037-080-L	QW037-090-L	QW037-100-L	QW074-040-L	QW074-050-L	QW074-060-L
Output voltage:	4.2V	4.2V	4.2V	8.4V	8.4V	8.4V
Rated output current:	8A	9A	10A	4A	5A	6A
Output power:	33.6W	37.8W	42W	33.6W	42W	50.4W
ITEM	QW074-070-L	QW111-030-L	QW111-040-L	QW111-045-L	QW148-020-L	QW148-030-L
Output voltage:	8.4V	12.6V	12.6V	12.6V	16.8V	16.8V
Rated output current:	7A	3A	4A	4.5A	2A	3A
Output power:	58.8W	37.8W	50.4W	56.7W	33.6W	50.4W
ITEM	QW148-035-L	QW185-020-L	QW185-025-L	QW222-020-L	QW259-020-L	QW259-010-L
Output voltage:	16.8V	21.0V	21.0V	25.2V	29.4V	29.4V
Rated output current:	3.5A	2A	2.5A	2A	2A	1A
Output power:	58.8W	42W	52.5W	50.4W	58.8W	29.4W
ITEM	QW296-010-L	QW296-015-L	QW333-010-L	QW333-015-L	QW370-010-L
Output voltage:	33.6V	33.6V	37.8V	37.8V	42V
Rated output current:	1A	1.5A	1A	1.5A	1A
Output power:	33.6W	50.4W	37.8W	56.7W	42W
