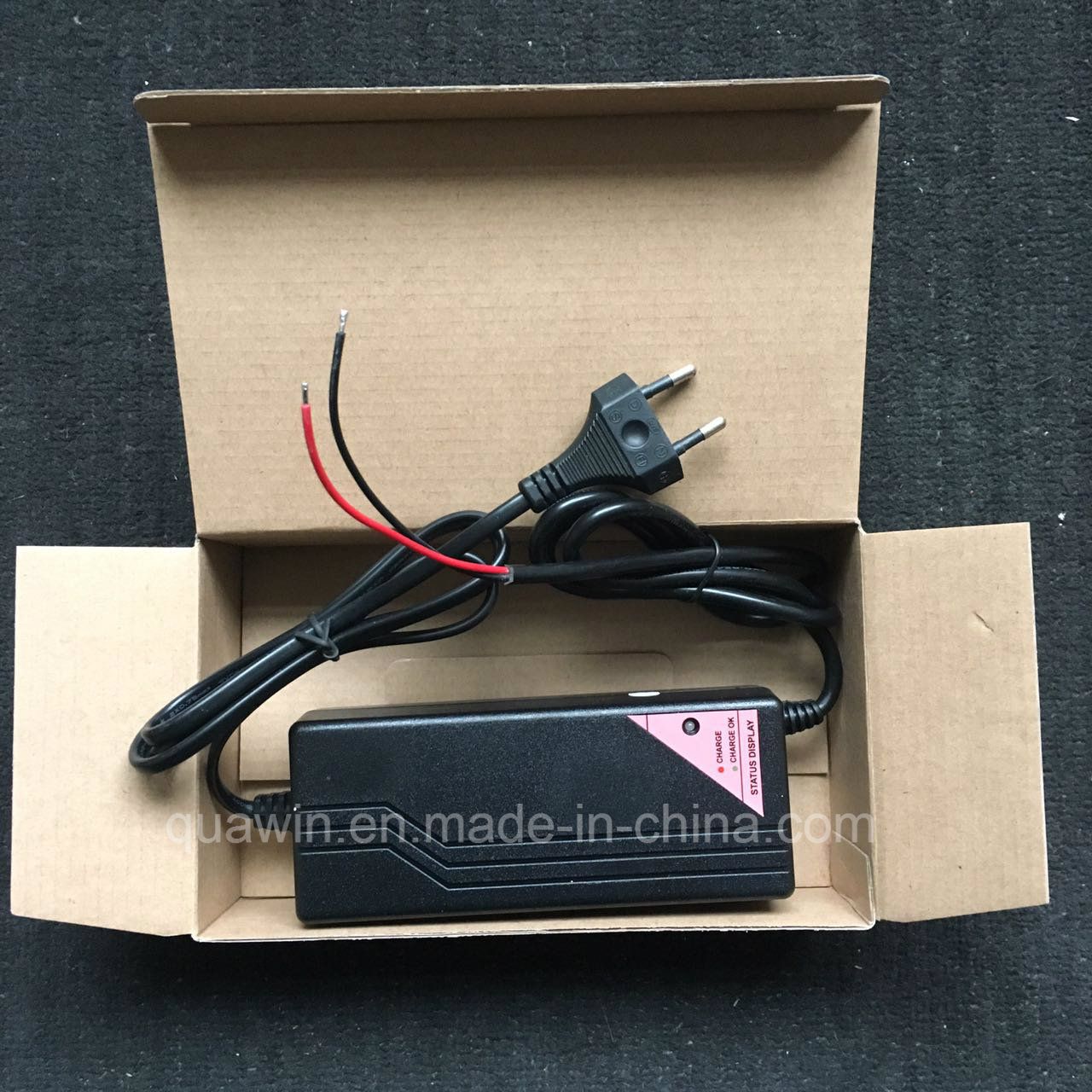

25.2V 5A Automatic Li-ion Battery Charger

Name: 25.2V 5A Automatic Li-ion Battery Charger
Brand: all-electronics-online.com
SKU: 810536805
Availability: InStock
Rating: 5 (73 reviews)

Price:	US $ 14.80/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW222-050-L
Input Voltage:	AC100-240V 50/60Hz
Desktop Type:	Yes
Warranty:	One Year
Delivery Date:	20days
Type:	Lithium Battery
Charger Type:	Electric Charger
Nominal Voltage:	25.2V
Socket Type:	as Per Request

Product Description

25.2V 5A Automatic Li-ion Battery Charger

Model	QW222-050-L
Input	100V~240V 50/60HZ
Output	25.2V
Output current	5.0A
Max power	126W
Charge mode	Continuous
Working environment	-5°C~45°C
Storage temperature	-40°C~70°C
Cooling mode	Natural cooling
Ripple and Noise	1%
Isolation voltage	3.0KVAC
Insulation resistance	>100mohm
LED indicator light	Avaiable
Suitable battery	6S 22.2V Li-ion battery

A.product descriptions

Application
♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper

♦ Solar Systems, Home Application,UPS
♦ LED Torch, headlight, Portable power bank,etc.

Electrical Specification
♦ Universal Input: 100 - 240V AC, 50/60Hz
♦ Input Plug: EU US UK AU Korea Power cords

♦ Output Voltage Range of main products: 4.2~60V DC (Optional)
♦ Output Current Range of main products: 0.5-100A (Optional)

♦ Output: 12v10a 12.6v10a 24v5a 25.2v5a 29.4v5a 42v3a 48v2.5-3a 54.6v2.5-3a
♦ Charge mode: CC--CV Mode(Li-ion battery charger charger)
♦ Led display: Red--in charging; Green--full charge
♦ Cut-off Current: 10-15% of Charge current
♦ DC Jack: 5.5/2.1 5.5/2.5 3.5/1.35 4.0/1.7 2.5/0.7

Protection Function
♦ Over voltage protection
♦ Over current protection
♦ Over-load protection

♦ Short circuit protection

Environmental Protection
♦ RoHS , REACH , CPSIA or PAHs Compliant On Request

Operation And Storage Condition
♦ Operation Temperature: -20°C to 40°C
♦ Operation Humidity: 20% to 90% R.H
♦ Storage Temperature: -20°C to 75°C
♦ Storage Humidity: 1% to 90% R.H.
♦ MBFT: > 50,000Hours
