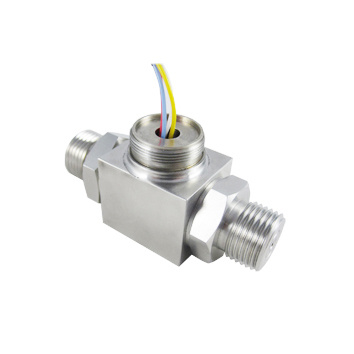

Name: 0.25% High Accuracy Piezoresistive Silicon Differential Pressure Sensor (PC11D)
Brand: all-electronics-online.com
SKU: 732820302
Availability: InStock
Rating: 4.9 (72 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC11D
Pressure Range:	0~35kpa...2.5MPa
Zero Output:	±2mv
Span Output:	100mv(Typical) 60mv(<100kpa)
Excitation:	1.5mA (Typical) 5VDC 10VDC
Compensated Temp.:	0-60ºC(Typical)
Operating Temp.:	-40-125ºC
Static Pressure:	10MPa (Max.)
Oil Filling:	Silicon Oil (Typical)
Housing Material:	316L
Diaphragm Material:	316L
Accuracy Grade:	±0.25%F.S.

Product Description

Piezoresistive silicon chip employed
Perfect long term stability
MEMS Technology

Pressure range
Pressure range		35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa
Overpressure		Range		Positive Overpressure		Negative Overpressure
		35kpa		70kpa		35kpa
		70kpa		150kpa		70kpa
		100kpa		200kpa		100kpa
		250kpa		500kpa		250kpa
		400kpa		800kpa		400kpa
		600kpa		1200kpa		600kpa
		1Mpa		2Mpa		1Mpa
		1.6Mpa		3.2Mpa		1Mpa
		2.5Mpa		5Mpa		1Mpa
Output signal
Zero output		±2mV
Span output		100mV(typical) \| 60mV(<100kPa)
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.25%F.S. (Typical)
Excitation	1.5mA (Typical) \| 5VDC \| 10VDC
Compensated temp.	0-60ºC(typical)
Operating temp.	-40-125ºC
Storage temp.	-40-125ºC
Insulation resistance	≥200Mohm/250VDC
Zero temp. coefficient	0.02%F.S. /ºC(≥100kPa) \| 0.04%F.S. /ºC(<100kPa)
Span temp. coefficient	0.02%F.S. /ºC(≥100kPa) \| 0.04%F.S. /ºC(<100kPa)
Bridge resistance	Min.		Max.		Unit
	2600		5500		ohm
Long term stability	0.3%F.S./year
Static pressure	10MPa (Max.)
Vibration	20g (20-5000HZ)
Shock	100g, 10ms
Response time	≤1ms(10% to 90%F.S.)
Lifetime	10*10⁶ (cycles)
Oil filling	Silicon oil (Typical)
O-ring	NBR, Viton
Housing and diaphragm	Stainless steel 316L
Wire	4 wire (typical) \| 5 wire (available) 39×φ0.015, Silicon shielded, 200ºC bearing
Weight	405g(approx)

Drawing

How to order
