| Prod Model: |
SZ-M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
25 Mva High Voltage Oil-Immersed Power Transformer |
| Product Type: |
25 Mva Transformer |
| Rated Power: |
25 Mva |
| Frequency: |
50/60Hz |
| Coil Structure: |
Isolation |
| Coil Material: |
Copper |
| Bolts And Nuts: |
Stainless Steel |
| Brand Name: |
Farady |
| Corporatiion: |
Kpll,Rea,Pec, |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Certification: |
Ctqc |
| Brand: |
Farady |
Product Description

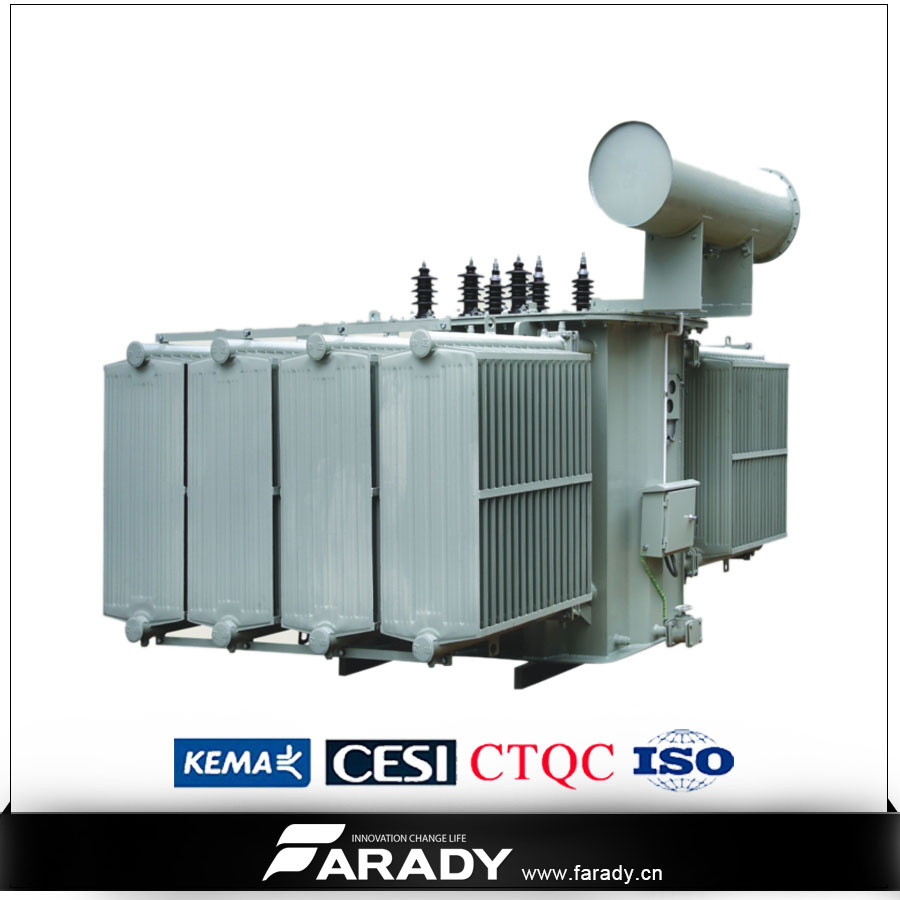

25 mva high voltage oil-immersed power transformer Introduction To Products

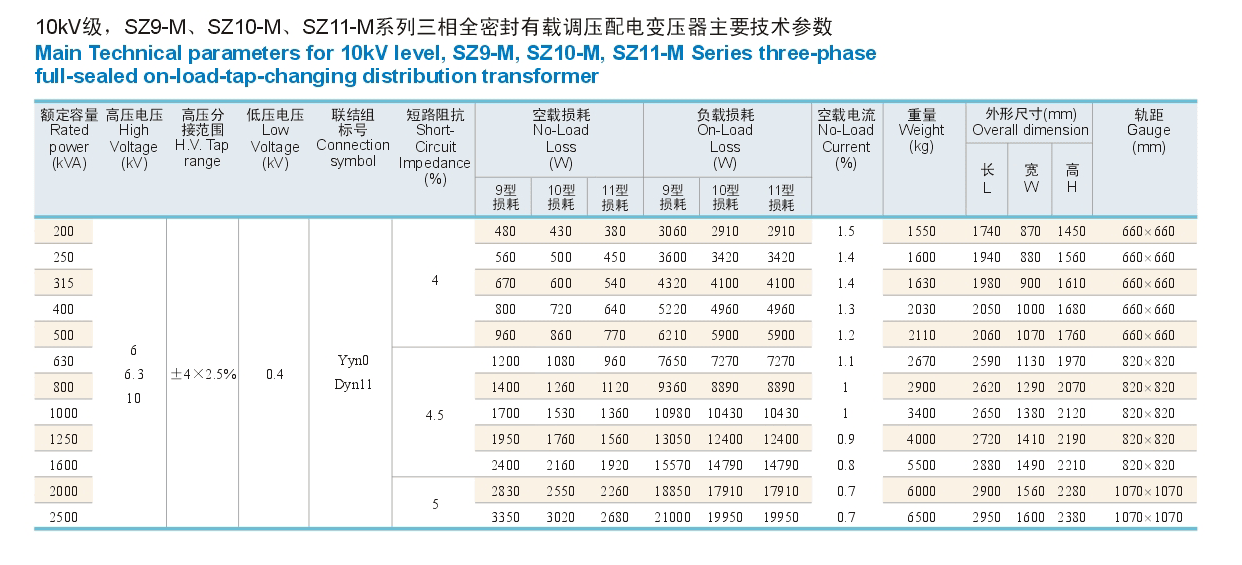

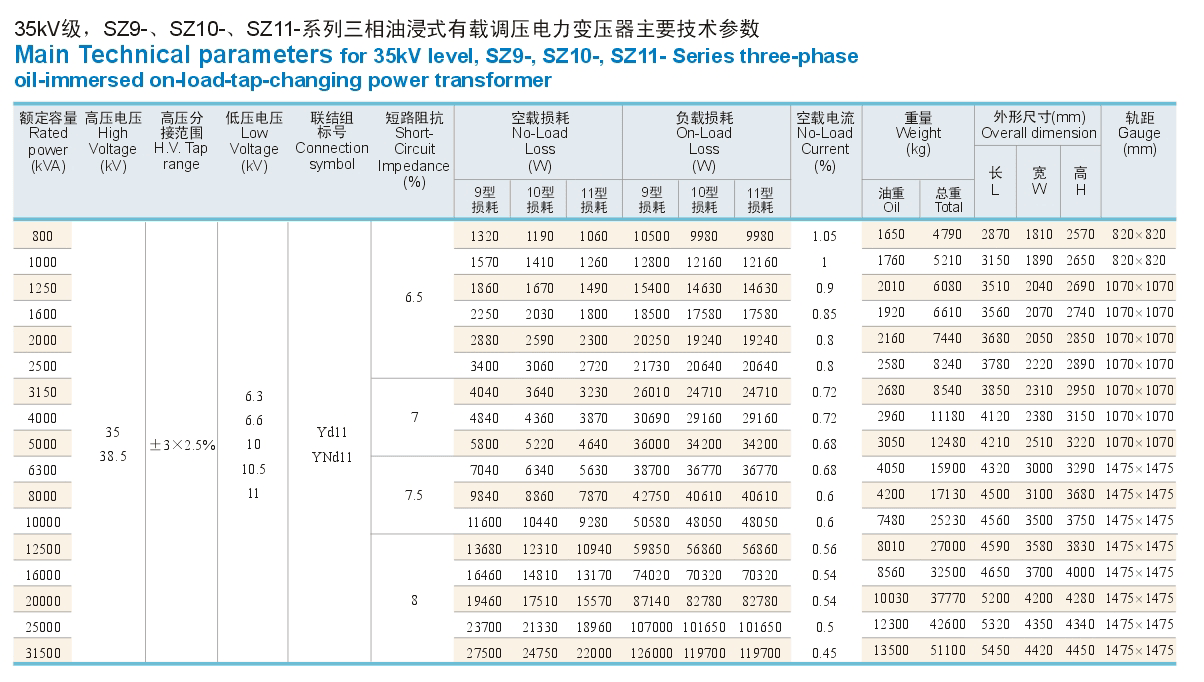

The performances of our SZ-M series, SZ series 10kV and 35kV load-ratio voltage transformer conform to the standard of GB1094 "Power Transformer" and GB/T6451-2008 "Technical Parameters and Requirements of Three-phase Oil-immersed Power Transformer. The iron core is made of quality cold-rolled silicon steel sheet, and in full-miter non-puncture. The coil is made of quality oxygen-free copper, featuring good outlook and safe running. The products are widely used in power transmission and distribution of industrial and agricultural power networks.
Main Functions And Features1, Load-ratio voltage regulation, high reliability, advanced level of performances, reasonable economical indicators.
2, The core joints are of stepped shape with 3 steps, and the surface of the core is coated with cured paint to lower losses and noise
3, The winding has novel structure and its oil passage is reasonable designed. Its newly designed insulation structure helps enhance its mechanical strength and the short circuit withstanding ability
4, The oil tank is in two types-fully enclosed type and the type fitted with an oil conservator
Company Information
We are professional manufacturer of power transformer,electrical transformer,step voltage regulator,oil immersed and cast resin dry type transformer ISO9001&14001 approval company Each series transformer we manufacutured was type tested Professional technical team ensure our product was always advanced amony your competitorFounded in 2006, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 10 years experience in distribution transformer manufacture.Our services1,Quick response in before sales period help you got order
2,Excellent service in production time let you know each step we made
3,Reliable quality solve you aftersale headache
4,Long quality waranty ensure you can buy without hesitate
FAQ
1,Why I buy Farady transformer
After compare quality,delivery and price you will find out answer
2,How is your farady electrical transformer waranty
12+12month after manufacture date,you total got 2 year waranty
3,Is that possible to be one of distributor of Farady Electric in my country
Yes,once you action is fast enough
4,More question......
Feel free to contact you you will get immediately reply
Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.
We are National Hi-tech enterprise, National Spark plan Program, State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.
Farady is located in Liushi of Yueqing, Zhejiang, China, main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid
With ISO9001/14001/18001, we are strike for create value for our partner and customer
There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from China, and contributes its share to the transformation from the Made in China into the Invented in China.
WE COMMITTED TO PROVIDE A BETTER POWER
