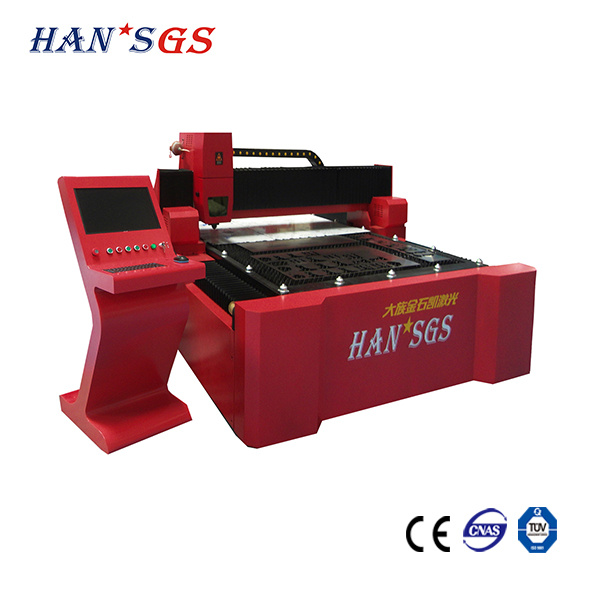

2500X1300mm Fiber Laser Cutting Machine
| Price: |
US $ 50000-1000000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
GS-LFD3015 GS-LFD2513 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3000X1500 |
| Drive Model: |
Imported Servo Motor |
| Power Requirement: |
380V,50/60Hz |
| Working Temperature: |
5ºC-45ºC |
| Continuous Working Time: |
Continuous Working Time |
Product Description

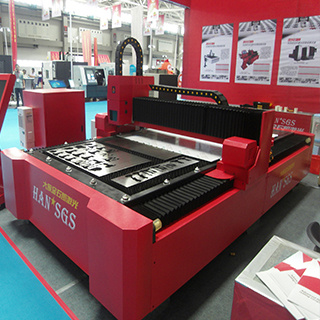

2500X1300mm Fiber Laser Cutting machine
Description:GS - LFS3015 fiber laser cutting machine is adopted with international advanced technology of high power fiber laser source, combined with the company's independent design gantry CNC machine tool system. High strength whole welding cutting bed, have been handled with high temperature annealing and large CNC gantry milling machine precision processing,thus the cutting bed has very good rigidity and stability. Driven by Precision ball screw and linear guide. It's mainly aimed at the rapid precision cutting of sheet metal under 4 mm. Widely used in metal crafts, metal products, precision machinery, auto parts, electronics, toys, glasses, jewelry, nameplates, advertising and other industries
1.Adopting world's top imported fiber laser source with stable performance
2.Optic-electricity conversion rate of fiber laser is 3 times than CO2 laser, which is more energy conservation and environmental friendly
3.Power consumption of fiber laser is only 20%-30% of similar CO2 laser cutting machine, very low running cost.
4.Driven by gantry structure, dynamic performance is good. The overall layout is compact, rational, only cover a small area.
5.Equipped with special laser cnc system, which can guarantee efficiency and accuracy during high speed running process.
6.X, Y axis adopt imported ball screw and guide line, equipped with central lubrication devices at the same time to guarantee the long-term stability and reliable running.
7.Vertical and horizontal driving have adopted imported high precision helical gear and rack driving, and equipped with high-precision planetary gear reducer and AC servo system to achieve high precision transmission.
8. There is collection device below cutting bed, small cutting material and metal powder will be collected in it.
Specifications: | Model | GS-LFS3015 |
| Medium of Laser | Fiber |
| Processing surface (L × W) | 3000mm×1500mm |
| Maximum cutting speed | 15m/min |
| Cooling method | Water cooling |
| Laser Wavelength | 1070nm |
| Output Power | 500W |
| Min line width | ≤0.1nm |
| Material cutting thickness | 0.2-6mm |
| Driven method | Imported servo motor |
| Transmission method | Imported ball screw and guild line |
| Power supply | 380V/50Hz/16A |
| Continuous Operating Hours | 24 hours |
| Machine weight | About 3000kg |
| External dimension(length×width×height) | 4270mm×2280mm×1750mm |
Advanced Control Function: 1. Height sensor automatic calibration function:
Manual height sensor calibration is inconvenient and cumbersome, and requires high level operators. With the PA8000 laser cutting system using automatic calibration method, no cumbersome operations are needed, and the CNC laser cutter can rapidly calibrate the height sensor automatically.
2. Change to pulsing at corner cutting control function:
When the sharp corner of a thin to medium carbon steel sheet is cut, melting loss will occur easily, so the quality of the cutting section of the sharp corner can't be guaranteed. With the PA8000 laser cutting system using the change to pulsing at corner cutting control function, the laser power, pulse frequency and pulse duty factor are changed for sharp corner cutting, and the CNC laser cutter restores the previous control mode after passing the sharp corner, thus guarantees the section quality of outline cutting of sharp corners and the efficiency of cutting.
3. Pause and deceleration at corner function:
In the fusion cutting of high temperature alloy sheets such as stainless steel and aluminum alloy sheets, etc., the sharp corners are hard to cut, with back splattering and contamination of focus lens occurring easily. With the PA8000 laser cutting system using the pause and deceleration at corner function, dross back splattering seldom occurs, thus significantly improves the stability of sharp corner cutting of such alloy sheets, reduces the contamination of focus lens, and prolongs the useful life of focus lens.

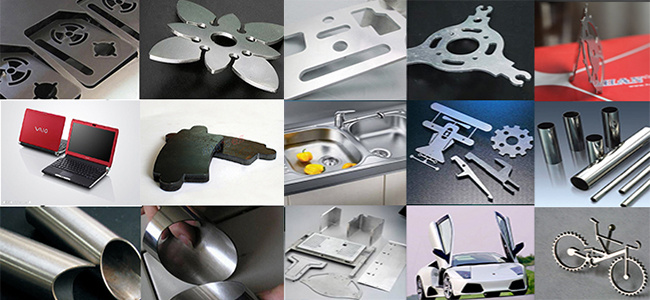

Cutting Materials It is used to cut the metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanize plate, pickled plate, copper plate, aluminum plate, etc.
HANS GS FAQ: 1.Q: Are you a factory or trading company? A:We are a manufacturer with $13 million registered capital & 20000 square meters Han's Goldensky Science and technology park. 2.Q: What is the payment terms? A:The payment terms we accept include: Western Union, Cash, L/C, T/T (30% advance payment as deposit, 70% balance payment should be paid before shipment.) 3.Q: How long is the delivery date?(After getting the deposit) A: It is different from 25-45 workdays according to the models, OEM is also available, delivery time need to be final confirmed on both sides. 4.Q: What is the cost of machine installation,debugging and training? A:Welcome foreign customers come to our Company, we provide all the place and equipment in your training time;as your requirement, we can also arrange technical engineer to the customer location to installation and training, all expenses of engineer will be borne by the Customer party.5.Q: What is the guarantee policy? Quality guarantee time? A: The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially ,we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
