250A Electrical DIN Rail Terminal Block 14-1AWG

250A Electrical DIN Rail Terminal Block 14-1AWG
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JUT11-250
IEC: 60947-7-1
Voltage: 600V
Current: 250A
Certificate: UL
Application: Transmission of Electrical Signals
Type: DIN Rail Screw Terminal Blocks
Material: Red Copper
Certification: TUV Ce CQC
Brand: Utl

Product Description

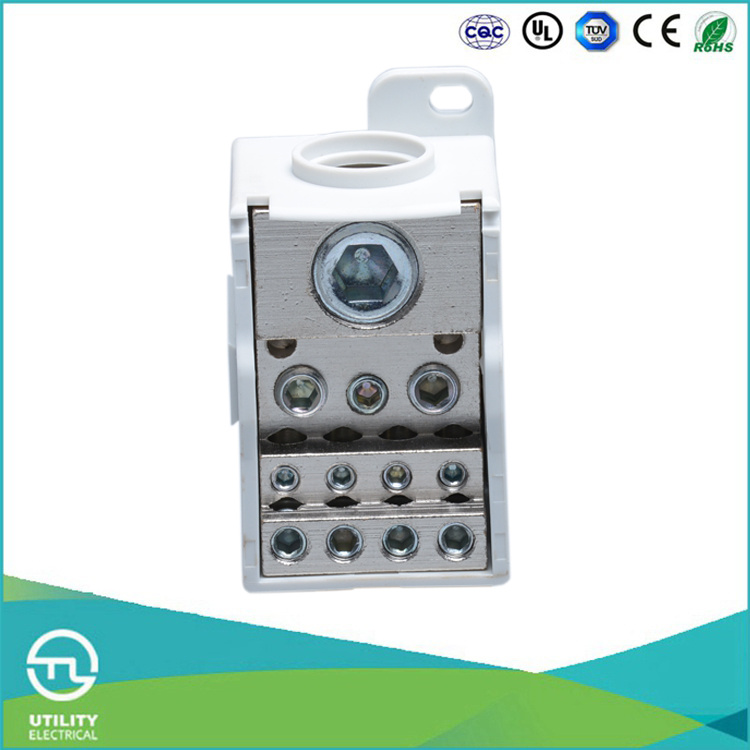

UTL JUT11-250 Power Distribution 250A Electrical Din Rail Terminal Block 14-1AWG

Model No.JUT11-250
Item name Universal Power Distribution Terminal Block
ColorBlue or OEM
Current (Amp) 250A
Voltage(V)600V IEC
Dimensions (LxWxH)29x46x77(mm)
Insulation resistanceDC 1000V 1000MΩ min
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL/VDE/RoHS/SGS/CCC/CQC  approved standard
Logo      Customized logo are available as request
Design ability        We can supply sample,OEM&ODM is welcome

Features:

Material:
Cover: PC UL94-V0                 Body: PA66 UL94-V0                     Block: Copper(Ni Plated)
Screw: Steel(Zinc Plated)        Fixed Part: Steel(Zinc Plated)         Standard: IEC 60947-7-1 IP20
Electrical:
(1) Voltage rating/Current rating: 690V/30A~500A;
(2) Insulation resistance: DC 1000V 1000MΩ min;
(3) Contact resistance: 20MΩ max;

UTL specialized in producing all kind of terminal block.Through persistent research and development, we have grown into a leading manufacturer of this line.We produce several series products for you choose,if you are interesting in any of our product Please feel free to contact us or E-mail us we are happy to give you more details
