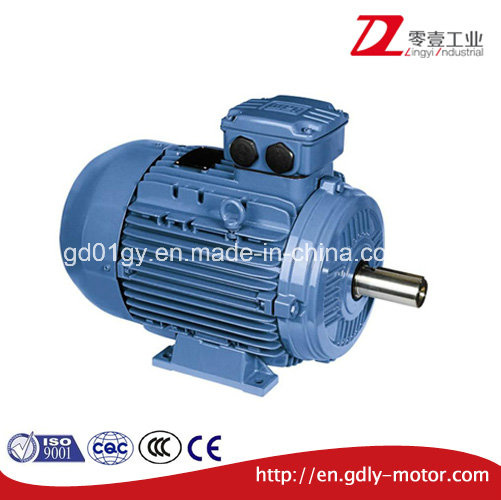

250HP Aluminum Induction Motor for Pump

Name: 250HP Aluminum Induction Motor for Pump
Brand: all-electronics-online.com
SKU: 781268305
Availability: InStock
Rating: 4.7 (84 reviews)

Price:	US $ 80-6000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	W21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size:	80-355
Efficiency Class:	Ie2 (IEC 60034-30)
Material:	Cast Iron
Color:	Stone Grey (as Customers Required)
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Protection Type
Starting Mode:	Direct on-line Starting
Species:	1le0001
Certification:	CE
Brand:	Ly

Product Description

WEG Induction Motor

Motor Summary

Frame size	80- 355
Pole	2-8
Rated voltage	220/380V, 380/660V
Frequency	50Hz/60Hz
Power	0.55kw-315Kw
Protection degree	IP55
Cooling method	IC411
Insulation class	F
Ambient Temperature	-20°C~40°C
Altitude	not exceed 1000 Meter
Working Duty	S1(Continuous)

Overview

Aluminum housing, Totally Enclosed Fan Cooled (TEFC)
with IP55 environmental protection,
and applicable for general purpose use.

These motors are designed and manufactured in accordance with ISO, IEC standards, GB standards.

Features

Available in 2, 4, 6 pole motor (0.75kW and up) with efficiency grade 3. according to GB18613-2012 and efficiency class IE2.
Optimized compact style construction.
Standard mounting construction according to IEC 60034-7: IM B3, IM B5, IM B35 and etc.
All motors are designed to IP55 degree of protection (IEC 60034-5).
Regreasing devices for FS280~355 as standard,and for FS100~250 as option.
Reinforced bearings for increased cantilever forces for FS100 ~ 355 as option.
Winding protections with PTC, PT100 and KTY84-130 as option.
Insulation system is designed for temperature class 155 (F). At rated output with line-fed operation, the motors can be used in temperature class 130 (B).

Environmental

Degrees of motor protection IP55 (IEC 60034-5).
Altitude shall not exceed 1000m above sea-level (IEC 60034-1).
Allowed air temperature between -20 ºC and 40 ºC (IEC 60034-1).
Permitted relative humidity:
-20 ºC ≤ T ≤ 20 ºC:100 %
20 ºC < T ≤ 30 ºC:95 %
30 ºC < T ≤ 40 ºC:55 %

FAQ

Q: What is your MOQ of this item?
A: 5PCS.
For the first time cooperation, we accept trial sample order.

Q: What's your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.

Q: What's the delivery time?
A: 30-45 days after receiving your L/C or T/T deposit.

Q: How long is your warranty?
A: 12 months after receiving B/L.

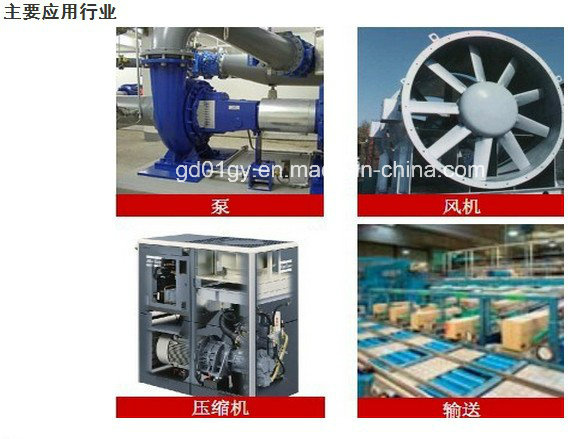

Application Industry

Guangdong Lingyi Industrial Technology Co., Ltd set up since 1997, with 20 years development, we become one of the best companies in the industry for mechanical and electrical products system integration, logistics service and investment. The company has set up 21 subsidiaries located in southern, central, eastern and northern China, .

The products categories include:

1, Transmission Products: High and low voltage electric motors, geared motors, gear boxes, bearings, inverter and complete electrical cabinets

2, Automation Products: Automation systems, motion control, low voltage control products and systems, sensor and communication products,

3, Power distribution Products: Low-voltage power distribution products, medium voltage circuit breaker, intelligent building system and equipment.

4, Machinery components.

Count on our 20 years industry experiences. Guangdong Lingyi Industrial Technology Co., Ltd give you one-stop industrial products sourcing, procurement, system integration and services, satisfy your different needs in the industry.

We are looking forward to cooperating with you.
