| Prod Model: |
WH932 |
| Plastic Body: |
Brass Inside |
| Material: |
PC Material |
| MOQ: |
1000PCS/Item for Switch Socket, 1000PCS/Item for T |
| Service: |
OEM ODM Is Accepted |
| Principle: |
Infrared |
| Wires: |
Two-Wires |
| Standard: |
Standard |
| Rated Power (Pn): |
3500W |
| Rated Frequency (Fn): |
50Hz/60Hz |
| Mechanical And Electrical Life: |
6000 Times |
| Grounding: |
Standard Grounding |
| Application: |
Residential/General-Purpose |
| Type: |
Microwave Sensor Switch |
| Function: |
Leakage Protection Socket |
| Certification: |
Ce, ISO |
Product Description

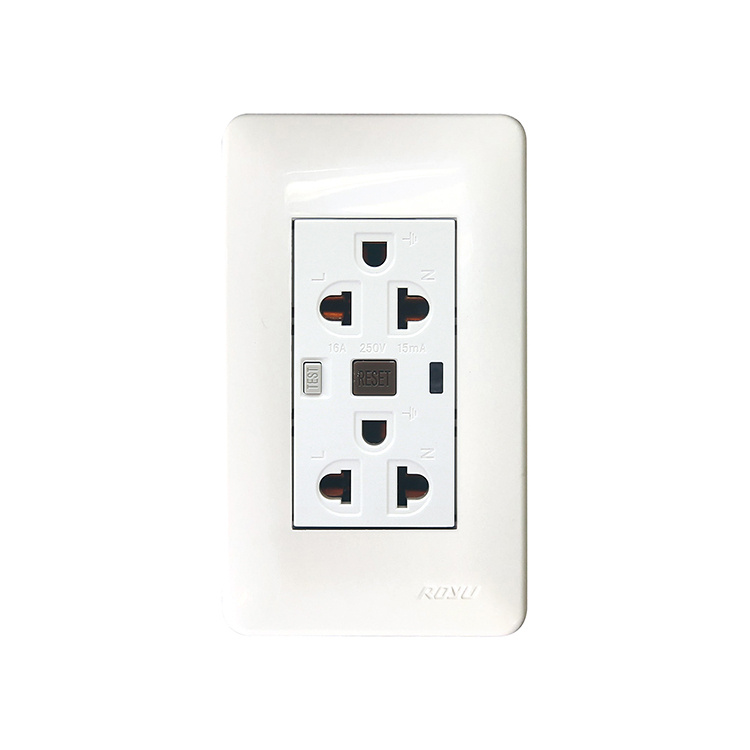

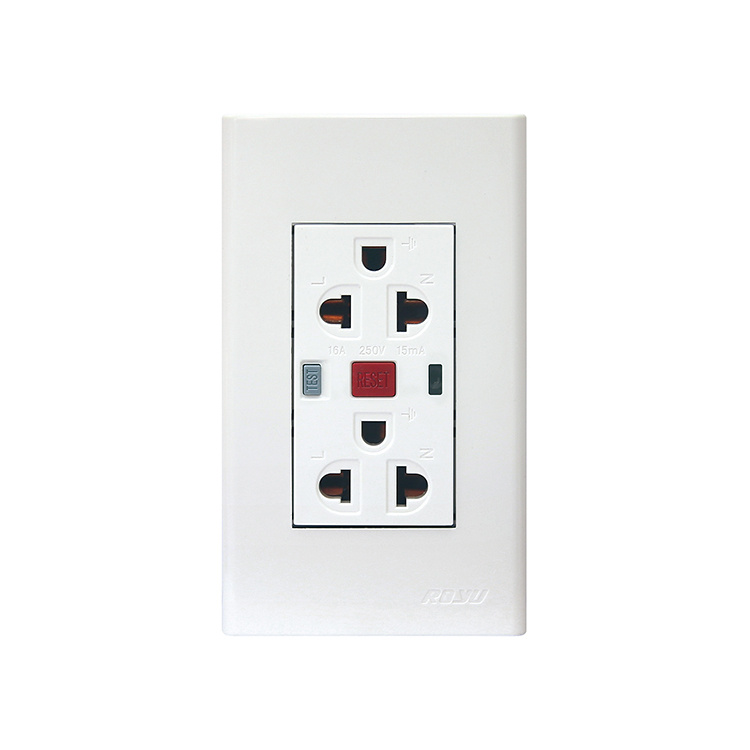

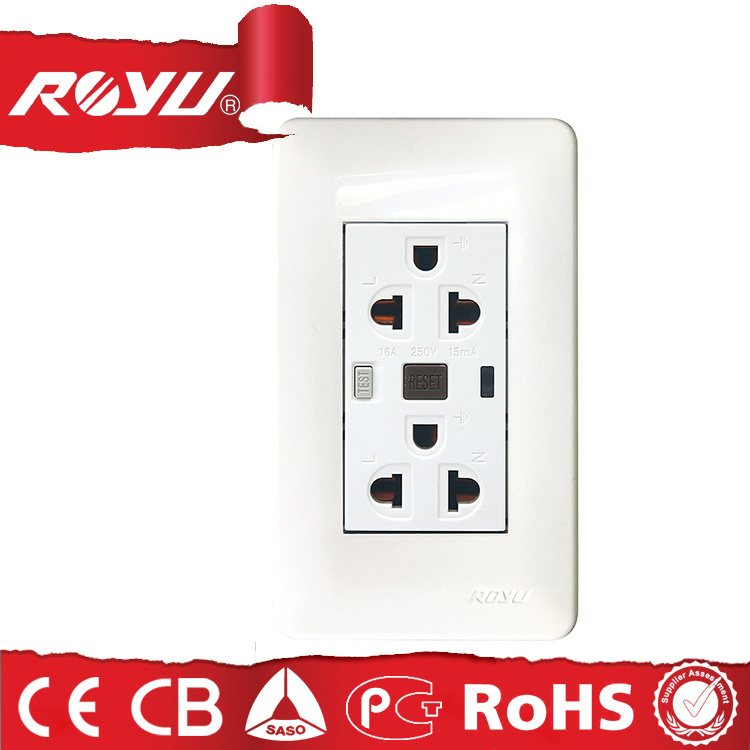

250V Fixed leakage protection wall multi socket with indicator lamp
Product CharacteristicThe switch contacts are made of high quality silver alloy material,which have a good performance against electric arc and melt weld.The on-off operations exceed 40000 times.
The socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.
| Outline size: | 80x80, 86x86mm |
| Installation size: | 60 |
| Material: | PC POM PA66 |
| Copper: | QSn5.6-0.1 H62 Hpb59 |
Switch Specification| Lifetime | ≥40000 |
| Heat-resistant | 100 C / 1h |
| Insulation Resistance | ≥5M Ω |
| Damp Resistance | 48h > 5M Ω |
| Temperature Raise | ≤ 45K |
| Earthing Provision | ≤0.05M Ω |
Socket Specification| Lifetime | ≥5000 |
| Heat-resistant | 100 C / 1h |
| Insulation Resistance | ≥5M Ω |
| Damp Resistance | 48h > 5M Ω |
| Temperature Raise | ≤ 45K |
| Earthing Provision | ≤0.05M Ω |
| Electric Strength | 2000 V ~1 min |
Installation Manual
For your personal safety, please read the instructions carefully when installing and using this product, to bring convenience for your life!
1.Product Features
This product is electrical leakage protection , installed on a single-phase power supply 250V / 50Hz line to prevent electric shock, it can automatically disconnect power sources within 0.1 seconds to prevent fatal causing bodily harm protected contacts, when the electrical load to ground is more than 10 mA leakage current,(The harm caused by touching the poles at the same time can not be protected); Meanwhile the product also has anti-lightning and anti-surge interference function, to ensure the normal operation of electrical appliances and equipment, this product is used insulated flame retardant PC material, with superior fire-retardant features.
Apply to electric water heaters, refrigerators, washing machines, kettles, hair dryer and other household appliances and hand-held power tools, it is the safety power for household, commercial and other similar place.
2.The main technical parameters
(1). Basic parameters
Rated voltage (Un):250VAC
Rated current (In):16A
Rated power (Pn):3500W
Rated frequency (Fn):50Hz/60Hz
Mechanical and electrical life: 6000 times
(2). Leakage protection operation characteristics:
Rated operation (leakage) currents:10-15mA
Rated leakage current breaking time:≤0.1s
3.Product Installation
(1) Before installing the wire, make sure the power is off, after the installation to ensure proper installation, it would be tested for continuity.
(2) 2 to 3 mm diameter copper wire, 1.6cm joint with striping the insulation sheathing, inserted at the terminals with a tool reliable fastened;
(3) power supply line L can be connected to the product's power cord terminals;
(4) Neutral line N can be connected to product's neutral terminal;
(5) Ground line can be connected to product's ground terminal
(6) Load terminals can be connected directly to the load, or be connected to the other common socket, the connected socket at the same time with leakage protection function.
Note: If the Live line and the neutral line reversed, power indicator light can not be extinguished after the leakage protection.
4.Test
The product can be tested after confirming wiring and installation are correct. Test procedures are as follows:
(1) Sockets access voltmeter or lamps and other loading.
(2) Turn off the power switch, the power indicator light is on;
(3) Press the RESET button, connect to the load, Voltmeter displayed correctly or light is on;
(4) Press the TEST button, disconnected to the load, Voltmeter doesn't display or lights is off and meanwhile the power indicator light is off;
(5) Monthly, press the TEST button to test the product works properly or not and then press the RESET to restart.
