250VAC 12A Mini Relay DIN Rail 1no 1nc Timer Relay

Prod Model:	CAHC15A

Product Description

CAHC15A Timer relay

1. Application

24 Hours timer relay is suit for water heater, Water dispensers, Street lamp, Staircase lamp, Advertising lamp boxes, Breed aquatics, Irrigate, Office power auto control, in anywhere need time control in civilian, home or industrial, etc.
The timer relay can setting 8 programs to control ON and OFF of electric appliance in 24 hours or setting 48 programs in one week. timer relay can be programmed to avoid the peak of power, and the timer relay can distribute power in time limit to saving energy. This timer is a kinds of module for DIN guide rail, the timer relay is easy to installation in distribute box, and its so compact size with pretty form. Its time base component is adopt synch pulse motor and the timer relay is strong anti-jamming with performance stabilization.

2. Specification


Classification		Timer
Model		CAHC15A
Contact Capacity		AC250V 12A
Full Timing Range		Per week or per day cycle
Contact Resistance		≤50mΩ
Insulation Resistance		≥100mΩ
Coil Voltage		220V AC 85%~110%
Life	Electrical	10 5 times
	Mechanical	10 7 times
Operating Temperature		-40°C~+55°C

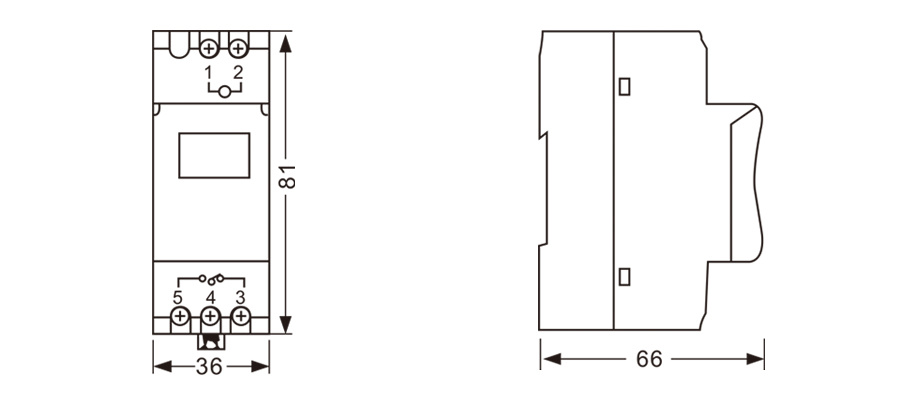

3. Dimension(mm)



4. About Us

Established in 1987, CHANGAN is a large national enterprise, located in China Electric Appliance Capital- Liushi. Taking the industrial electric appliance as the leading sector, Integrating the R&D, information, trade, services, manufacture and sale of high and low voltage electrical apparatus, Instrument and Meter, Power Supply Equipment, Power Distribution Cabinet and Electric product for building and construction.

As core company, CHANGAN GROUP CO., LTD. is mainly engaged in
MCB, RCCB, RCBO, MCCB, CONTACTOR, THERMAL RELAY, SPD, MPS, STARTER,
STABLIZER, PUSH BUTTON SWITCH, INDICATOR, TERMINAL, CABLE ACCESSORIES etc. Company own over 2000 employees, 116000 square meter construction area, registered capital totalizing to 0.10518 billion RMB, it has established over 500 sales branches throughout the whole country.

Certificate:ISO9001,ISO14001,OHSAS18001,CCC,SEMKO,CE,CB,TUV,EAC,TSE.Products are sold to UK, France, Russia, Turkey, German, Brazil, Argentina, South Africa, Egypt, Iran and other 60 countries and areas.

5. FAQ

Q 1.What's the payment term?
A.We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2.How's the delivery time ?
A.Usually it will take about 25 days for production

Q 3.Tell me the standard of package?
A.Normally are cartons, but also we can pack it according to your requirement.

Q 4.Could you offer form a or c/o ?
A.It's totally not a problem.
We can prepare relative documents to forgin affairs office or other office  to apply for this certificate.

Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do oem
