250W 24V Switching Power Supply for LED Signage

Name: 250W 24V Switching Power Supply for LED Signage
Brand: all-electronics-online.com
SKU: 714867782
Availability: InStock
Rating: 4.4 (118 reviews)

Price:	US $ 14.05/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHDV-24E250
Model No.:	Lhdv-24e250
Input Voltage:	180-250 VAC 50/60 Hz
Output Current:	10.4A Max
Output Voltage:	12VDC ± 5%
IP Rating:	IP23
Installation:	Outdoor Rainproof
Weight(Kg):	0.9600
Packing Information:	20 PCS/ Carton, G.W 20.5kg
Cooling:	Built-in Electric Fan
Dimensions(LWH):	185.5112.556.5 mm
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Certification:	Bis
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

250W 24V Rainproof Aluminum LED Power Suppy with CE

1. Feature of LED power supply
- Designed for outdoor signage, decoration or lighting applications.
- Constant voltage output.
- Rainproof.
- Excessive heat dissipation aluminium housing and hot start ventilation fan.
- Safety design with separated AC input power cord and DC output terminals, preventing electric leakage or short circuit by water.
- Output voltage adjustable.
- Cost effective model for outdoor applications.

2. Specification of LED power supply

Model no.	LHDV-24E250
Model series	LHDV
Input voltage	180-250 VAC 50/60 Hz
Power	200 W max
Output type	Constant voltage
Power factor	Low
Efficiency	83%
Output voltage	24VDC ± 5%
Output current	10.4A max
Operating temperature	-25~40ºC
Installation	Outdoor rainproof
IP rating	IP 23
Cooling	Built-in electric fan
Dimensions(LWH)	185.5112.556.5 mm
Weight(kg)	0.7500
Packing information	20 Pcs/ Carton, G.W 15 KG

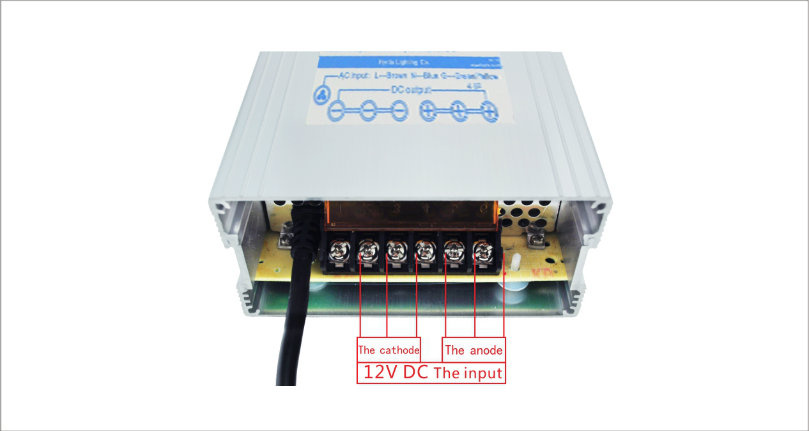

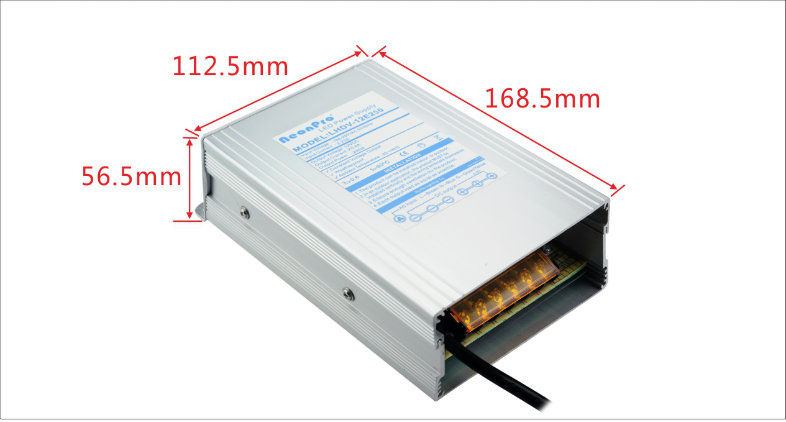

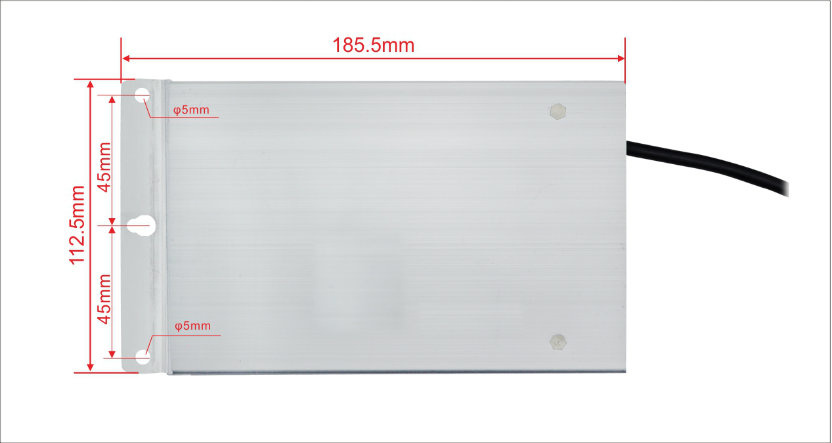

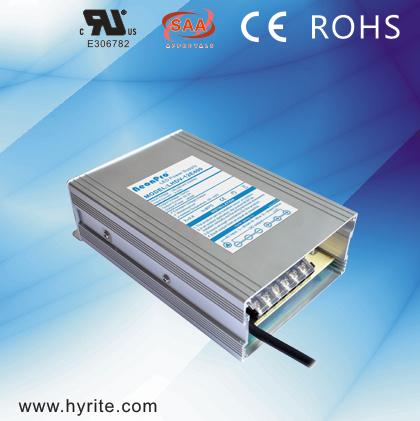

3.Detail pictures of LED power supply

4. Applications of LED Power Supply:
*LED module & LED strip
*LED neon light
*LED light box
*Channel letter
*Other sign lighting

5. Important Parameter of LED Power Supply:
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP23

6.Company Profiles:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
