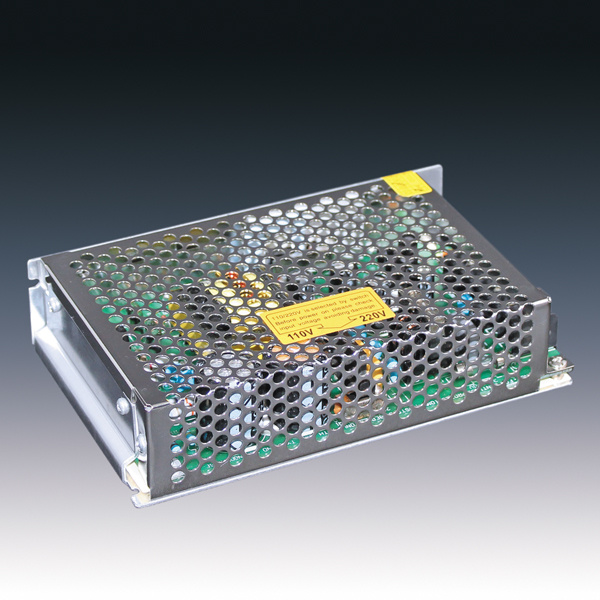

250W 5V 12V 24V IP20 Indoor Switching Mode LED Driver

Name: 250W 5V 12V 24V IP20 Indoor Switching Mode LED Driver
Brand: all-electronics-online.com
SKU: 785727345
Availability: InStock
Rating: 4.3 (46 reviews)

Price:	US $ 14.9-17.38/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLA-5V/12V/24V-250W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	19911050mm
Color:	White
Material:	Aluminum
Voltage:	Adjustable
Usage:	LED Strip LED Module
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Hiline

Product Description

250W 5V 12V24V Switching Mode LED driver Features:

1. Constant Voltage design
2. Protections: Short circuit/Over load/Over current
3. Cooling by free air convection
4. 100% full load burn-in test
5. High Reliability

250W 5V 12V24V Switching Mode LED driver Specifications:

MODEL		HLA-12V-250W		HLA-24V-250W
DC voltage	12V		24V
Rated current	20.83A		10.41A
Current range	0~20.83A		0~10.41A
Rated Power	250W
Voltage tolerance Ripple & Noise	12±0.5V 24±0.5V 120mV 240mV
Load regulation	±5%
Rise time	≤40mS
Hold up time	1-3S at full load
Voltage range	180-240VAC;
Frequency range	50/60Hz
Efficiency (Typ.)	80%		83%
Over Current Short circuit	110%~120%
	Short circuit protection
Working TEMP.	0ºC~40ºC
Storage TEMP.	-40ºC-70ºC
Working Humidity	20~90% RH non condensing
Vibration	10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
TEMP. coefficient	±0.03%/ºC(0~50ºC)
Safety Standards	Design refer to EN61000-3-2,-3
Withstand Voltage	I/P-O/P:1.5KVAC, I/P-GRUND: 1.5KVAC , O/P-GRUND:500VAC
Contact current	<3.5mA @ 240Vac/60Hz
EMC	Design refer to EN55022
MTBF	150KHours (25ºC)
Dimension	19911050mm(LWH)
Master Carton	20pcs/CTN

Zhuhai Hi-Line Electronics is located in the beautiful coastal city-Zhuhai, China. It is a high-tech R&D enterprise dedicated to developing, producing various innovative LED RGB lighting products, LED power supply and intelligent controllers.

Our main products include LED RGB digital boarder tube, LED digital video tube, LED strip light, LED digital DMX tube, LED power supply and RGB intelligent controllers for LED lights. These products are widely applied in municipal projects, casinos, stage lighting, home decoration etc which have been receiving good reputation among many parts of the foreign markets, such as American and European areas, Middle East and Southeast Asia etc.

We have been in LED field since 2007; We continuously focus on our tenet "Quality, Honest, Innovative and Efficient". With experienced R&D team and advanced equipments, we can offer our customers with the most-innovative, cost-effective and advanced decorative LED lighting products used for events, parties, home decorations, weddings, exhibitions, business, indoor and outdoor applications. There is no doubt that your satisfaction is our priority concert.

We are warmly welcome you to establish win-win commercial partnership with us to exchange valuable information and explore splendid future in the field of LED lighting.
