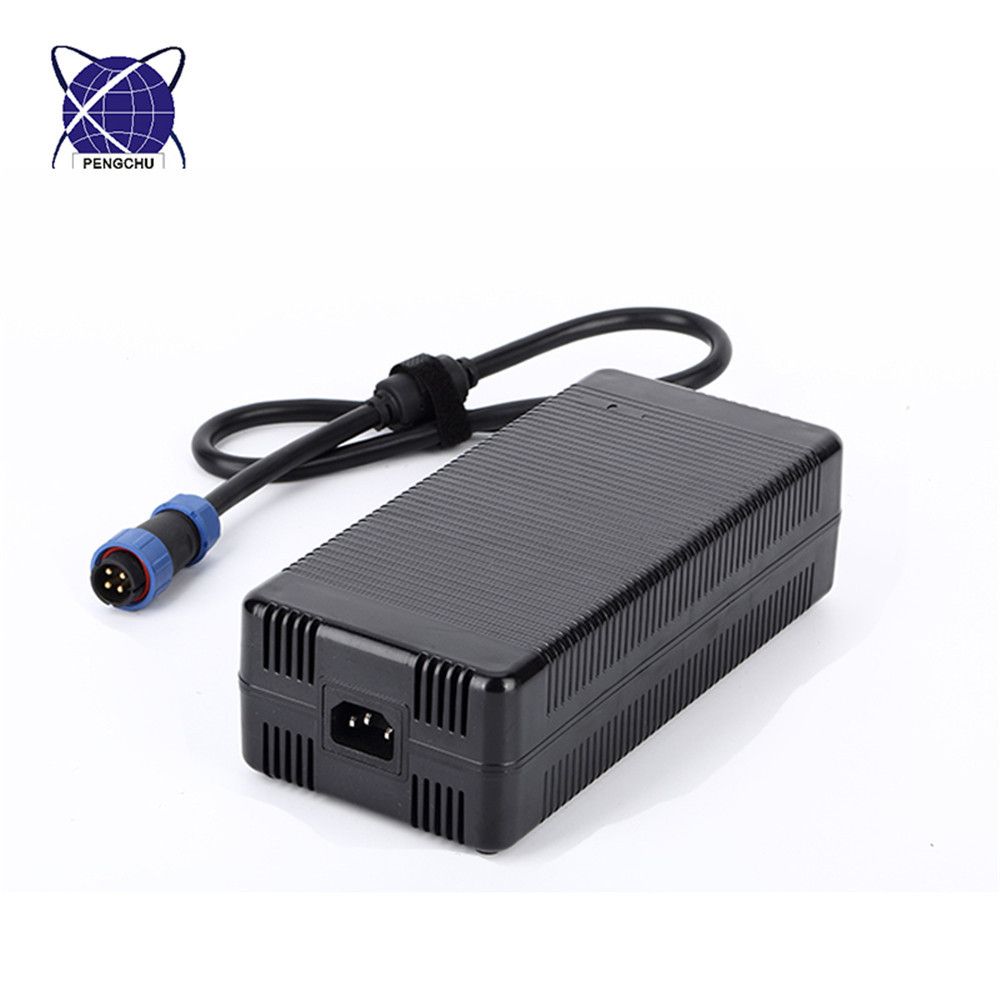

250W 5V 45A Single Outpur Switching Power Supply for LED

Name: 250W 5V 45A Single Outpur Switching Power Supply for LED
Brand: all-electronics-online.com
SKU: 839264505
Availability: InStock
Rating: 4.9 (94 reviews)

Price:	US $ 71.5-73.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC-050450
Output Voltage:	5V
Output Current:	45A
Power:	225W
Ripple & Noise:	<120mv
Working Efficiency:	>85%
Voltage Tolerance:	±5%
Load Regulation:	±5%
Color:	Black
Pfc:	>0.99
Protection:	SCP Ovp Ocp Otp
Output Type:	Single
Certification:	FCC
Brand:	Pengchu

Product Description

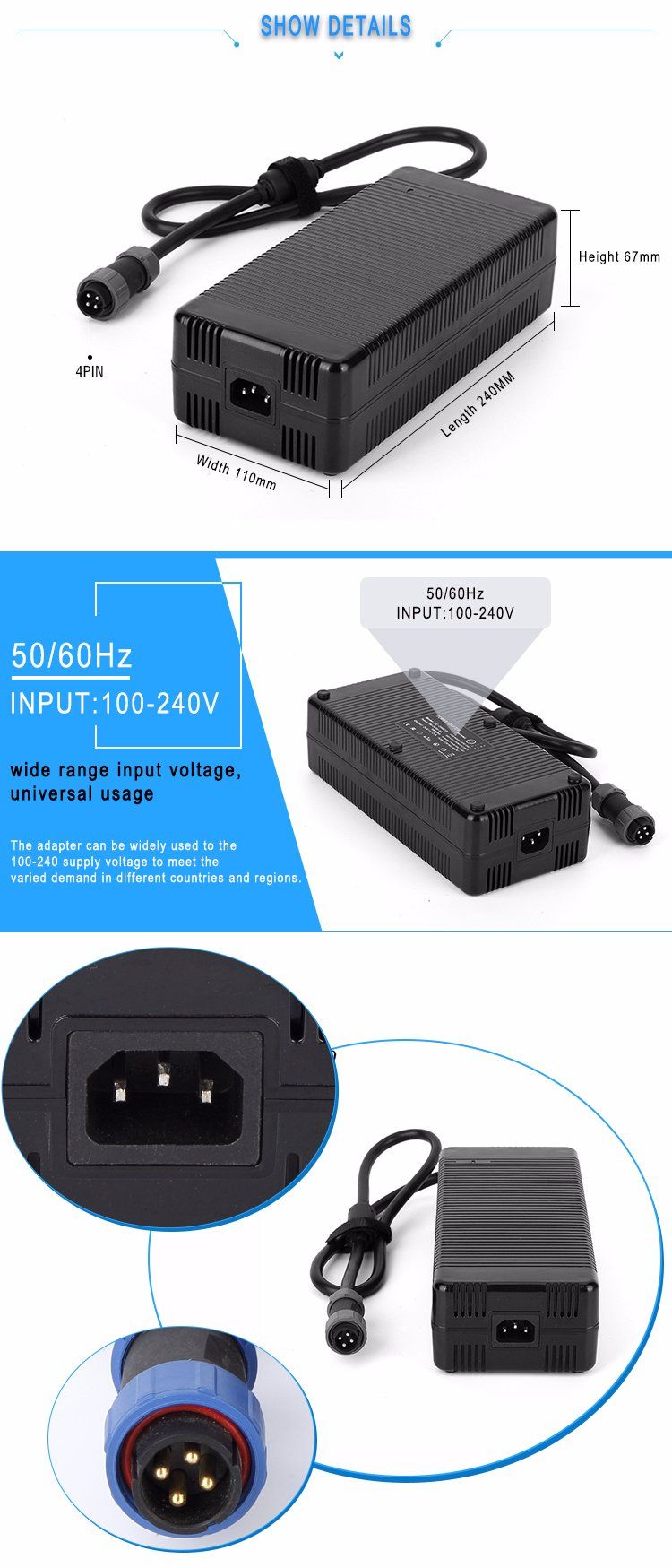

250w 5v 45a single outpur switching power supply for led

Features:

Universal AC input/Full range(up to 264Vac)
Protection: Short circuit/Overload/Over temperature
High efficiency, long life and hign reliaility
100% full load burn-in test
PFC>0.99
One year warranty
Class 1 design

Product Description

250w 5v 45a single outpur switching power supply for led
Part NO.	PC-050450
DC Voltage	5V
Rate Current	45A
Current range	0~45A
Rate power	225W
Voltage tolerance	±5%
Line Regulation	±1%
Load Regulation	±5%
AC Input	100~240Vac 50/60Hz max: 90~264Vac 47/63Hz
Efficiency	>85%
Short Circuit Protection	Shall be protected when any output operation in circuit shortcondition,and shall be auto restart when the fault condition is removed.
Over Current Protection	130%-150%
Over Voltage Protection	115%-135%
Operating Temperature	-10-50ºC (±10ºC)
Relative Humidity	20%-90% RH
Storage Temperature	-40-80ºC (±10ºC)
DC Connector	4 PIN connector (Customized Available)
DC Cable	0.5m/0.6m/0.7m/0.8m/0.9m(Customized Available)

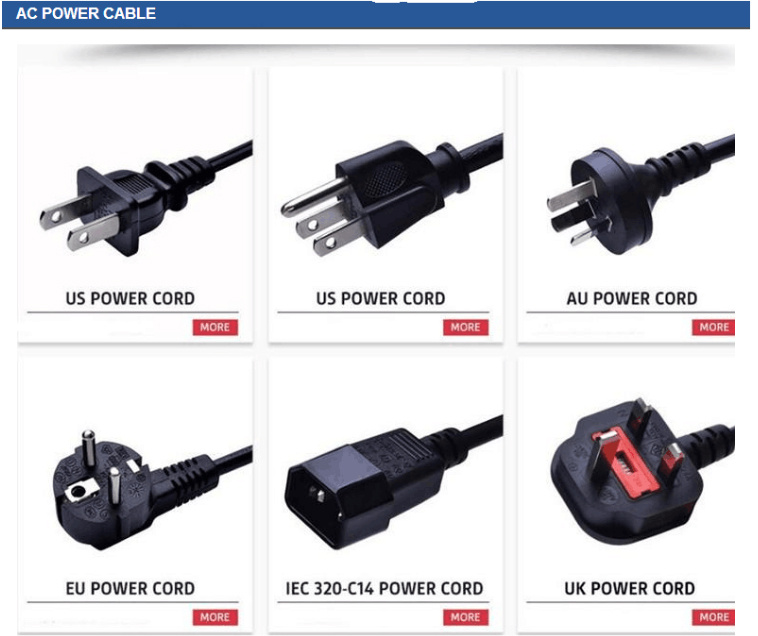

AC Cable	1.2m ac power cord with USA/UK/EU/AU/India plugs

Certification:

Why Choose US:

Professional team for after-sale service 7*24
11 years Alibaba Gold supplier
Experienced R & D team and profesional sales team
OEM & ODM service, we will evaluate, design and produce your customized products
Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.

Trade Term:

Payment term: PayPal, Western Union, T/T
Leading time:7-9 working days
Sample: 3-5 working days after payment confirmed
Freight cost: Customers's shipping agent or our forwarder

FAQ:

Q1: WAHT'S YOUR MOQ:

A1: Usually MOQ is 100pcs, we also can accept trail order to support new customers, 1000pcs for customized units

Q2: WHAT'S YOUR WARRANTY?

A2: One year warranty.

Q3: HOW ABOUT THE LEADING TIME?

A3: For samples, leading time is 3-5 working days.

For mass cargo, leading time will be 7-9 working days
