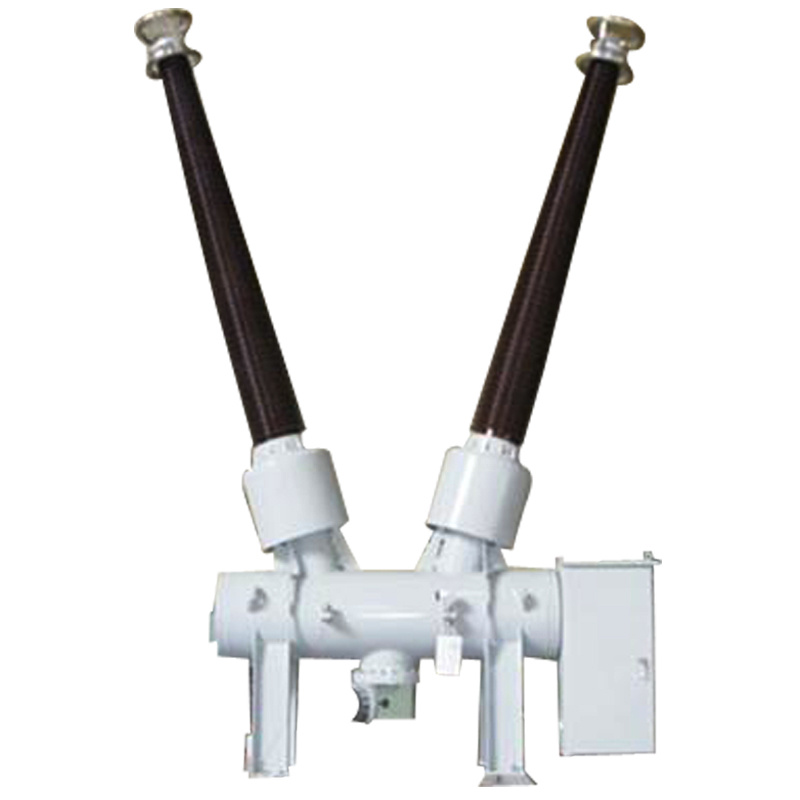

252kv Sf6 Circuit Breaker

Name: 252kv Sf6 Circuit Breaker
Brand: all-electronics-online.com
SKU: 818395365
Availability: InStock
Rating: 4.4 (97 reviews)

Price:	US $ 23000-40000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LW10B-252
Breaking Capacity:	High Voltage Circuit Breakers
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	SF6
Installation:	Fixed
Structure:	ELCB
Poles Number:	1
Certification:	CCC
Operation:	Hydraulic Energy Storage

Product Description

LW10B column type SF6 circuit breaker is independently developed by our company, including 252kV,
363kV and 550kV products, which are used for making and breaking normal current, fault current and
changing over of circuit, so as to realize the control and protection of power system.
Each pole of LW10B-252 circuit breaker has one break; LW10B-363 and LW10B-550 consists of two breaks,whether including closing resistance or not is up to requirement. For all of these three kinds of products, each pole is equipped with a hydraulic operating mechanism, which can make single pole operation and/or three pole electrically gang operation.

Main Technical Parameters:

Item	Technical Data
Type	LW10B-252
Rated voltage	252kv
Rated frequency	50Hz
Rated current	3150,4000A
Rated short circuit breaking current	40/50 kA
Rated short line fault breaking current	36/45 kA
Rated out of phase breaking current	10/12.5 kA
Rated peak withstand current	100/125 kA
Rated short circuit making current (peak)	100/125 kA
Rated short time withstand current	40/50 kA
Rated duration of short circuit	3 s
Rated line charging breaking current (r.m.s)	160 A
Breaking time of rated short circuit current	20 times
Mechanical endurance	5000/10000 times
Rated SF6 gas pressure at 20ºC	0.4/0.6 Mpa
SF6 gas moisture content (Ex-work)	≤150 PPM
SF6 gas leakage rate (per year)	≤1 %
SF6 gas weight (per pole)	6kg (without closing resistance)/10kg(with closing resistance)
Circuit Breaker weight (per pole)	1600kg (without closing resistance)/1800kg(with closing resistance)
Operating force for opening/closing	76/38 kN
Longitudinal terminal load	2250 N
Horizontal terminal load	1768 N
Vertical terminal load	1250 N

Our company
SHANGHAI POWERY INDUSTRIES CO., LTD. ( SPI ) corporate group has been dealing with the interfaces in the flow of electricity ever since it was founded back in 2011. SPI's three groups - Pole Line Hardware( Tsingtao, China ),High Voltage Line Protection(Lishui, China ), Distribution Transformers( Shinseong, Korea ) - offer a unique set of brands and products. As a specialist in energy transmission and distribution, we offer our customers and business partners a range of sophisticated, future-ready products: For all voltage ranges and wherever reliable, long-lasting systems are needed for powerful energy grids. We are already well-established in all key global markets and are continuing to strengthen our brand on a worldwide scale.SPI has identified key factors that will be instrumental to its sustainabilit.

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
