25A Contact Switching Capability Power Relay

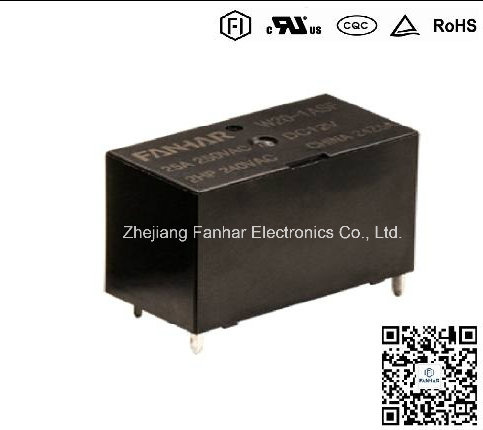

Name: 25A Contact Switching Capability Power Relay
Brand: all-electronics-online.com
SKU: 821131995
Availability: InStock
Rating: 4.8 (122 reviews)

Price:	US $ 0.45-0.55/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	W20-1AT
Certification:	UL TUV CQC
Contact Material:	Agsno2
Weight:	23G
UL Insulation Class:	F
Operate Time:	Max.20ms
Release Time:	Max.10ms

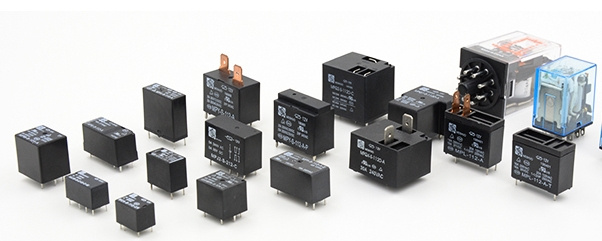

Product Description

Basic Info

Model NO.: W20
Contact Form: 1A = 1 OPEN
Product protective: S=Sealed Nil= Soldered
Contact material: T=AgSnO2 Nil:= AgCdO2
Dimension: 30.5*16*23.5 MM
Weight: Approx 23g
Trademark: FANHAR
Origin: China

Product Description
1. 25A contact switching capability
2.Suitable for switching motor load
3.Applicable to 80A high flow compressor load
4. UL insulation class: F grade

Contact Data:

Contact Form	1A
Rated load	20A 250VAC 25A 250VAC
Max Switching Voltage	277VAC
Max Switching Current	25A
Max Switching Capacity	6250VA/150W
Min Allowing load	5VDC 100mA
Contact Resistance	100mΩ (at 6VDC 1A)
Insulation Resistance	1000MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	1000VAC 1min
Between coil and contacts	4500VAC 1min
Withstand impact voltage	Between coil and contacts 10kv(1.2X50us)
Operate Time	Max.20ms
Release Time	Max.10ms
Mechanical life	10,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	20A 250VAC 100,000 ops ON/OFF=1s/9s 25A 250VAC 50,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	100m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC
Humidity	5% to 90%
Installation type	PCB Mounting
Certification	TUV UL CQC ISO

Coil Data:
Standard:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 5V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	180mA	27.8Ω	900mW	90-130 % Rated voltage
DC 6V			150mA	40Ω
DC 9V			100mA	90Ω
DC 12V			75mA	160Ω
DC 15V			60mA	250Ω
DC 18V			50mA	360Ω
DC 24V			37.5mA	640Ω
