25A DC/AC Single Phase AC SSR Solid State Relay

25A DC/AC Single Phase AC SSR Solid State Relay
Price: US $ 8.5-10/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: NM-1-DA48 10-120(SSR-DA)

Product Description

solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.
Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.

Specification


Product model XSSR-DA48W2XSSR-AA48W2
Control voltage3-32VDC80-250VAC
Control current6-25mA5-25mA
Reverse Voltage32VDC/
Guarantee close voltage1VDC30VAC
Guarantee open voltage 3VDC80VAC
Load voltage75-480VAC
Load max current10A-125A
Load mini current0.08A
Breakover voltage ≤1.8VAC
Output leakage current≤8mA
Medium withstand voltage≥2500VAC
Insulating resistance≥100MΩ
Switching time≤10mS
Frequency range50-60HZ
Operating temperature-20-70ºC
Load current safety factor(resistive load)50-60%
(inductive load)30-40%

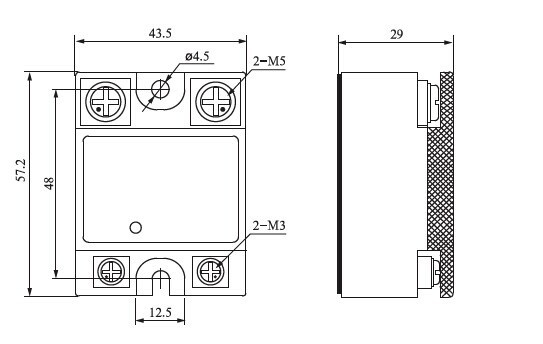

Outline Dimension




Notes for Inquiry

Please specify the control voltage, load voltage, and load current so that we can quote for you soon.
