25A DC/AC Single Phase SSR Solid State Relay (SSR-D25)

25A DC/AC Single Phase SSR Solid State Relay (SSR-D25)
Price: US $ 2.75/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: SYDH2548ZD3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Load Current: 25A
Load Voltage: 24-480VAC
Control Voltage: 3-32VDC

Product Description

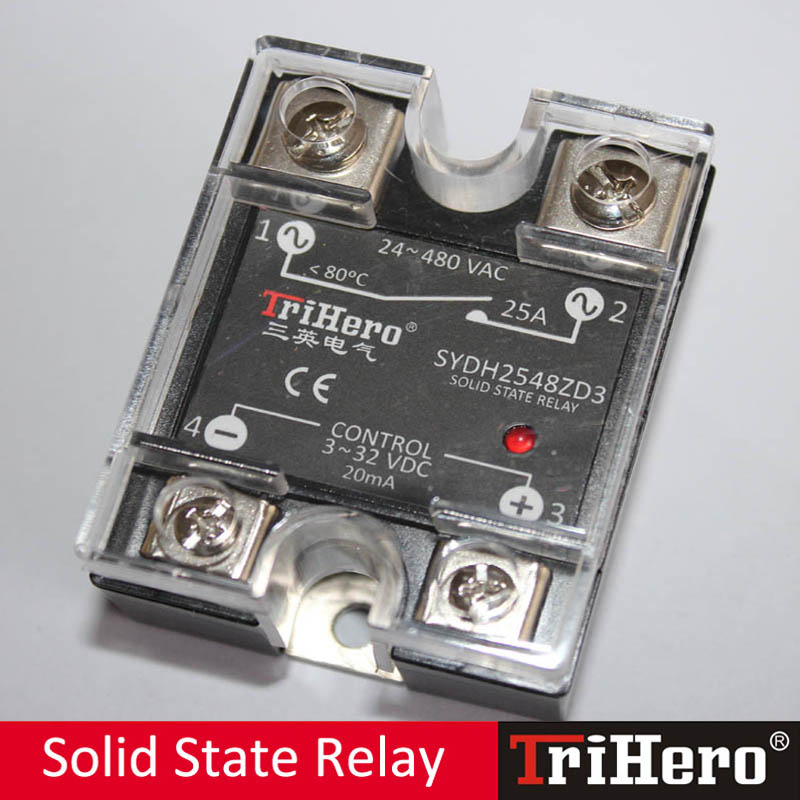

Single phase DC/AC Solid state relay,SSR relay

1) Datasheet:
ModelSYDH2548ZD3
Load current25A
Load voltage24-480VAC
Control voltage3-32VDC
Control currentDC3-25mA
On state voltage drop≤1.5V
On state leakage current≤2mA
Off state time≤10mS
Dielectric strength2500VAC
Insulation resistance1000MΩ500VDC
Ambient temperature-30°c ~ +75°c
Mounting methodbolting
IndicatorLED
Weight100g

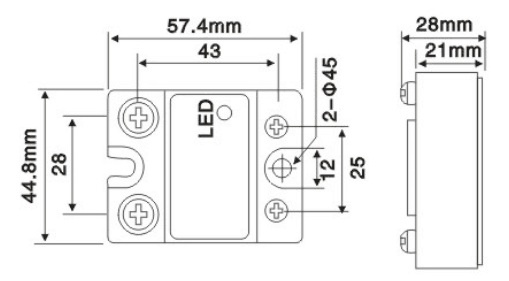

2) Dimension:

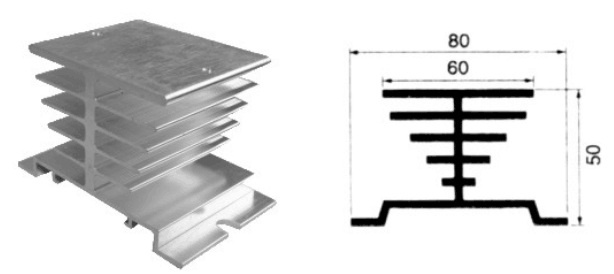

3) Matched heatsink:
I-50
