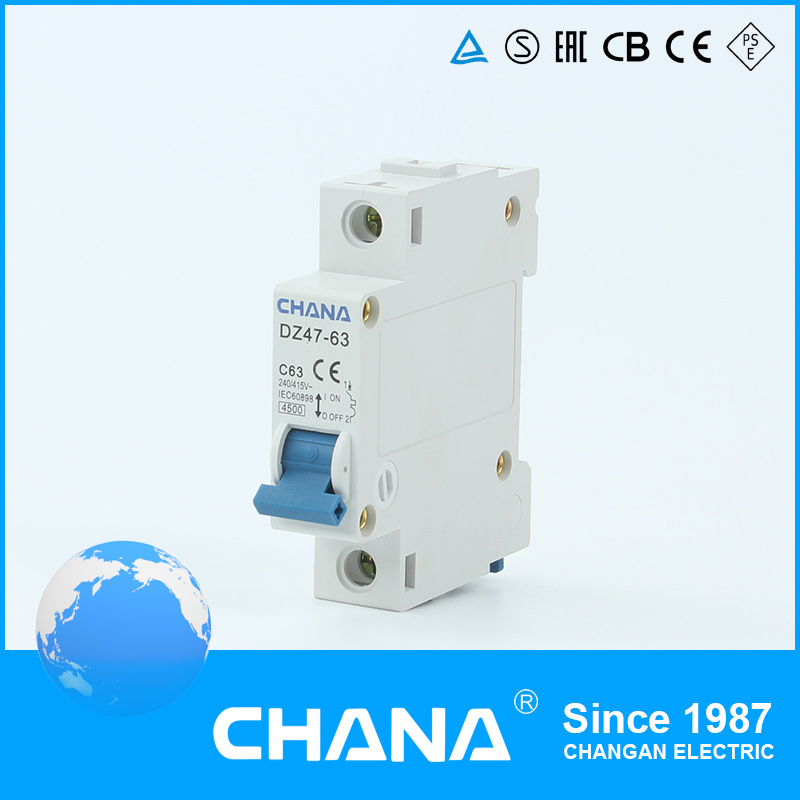

25A Economic Mini Circuit Breaker with CB Ce TUV Certifications

Name: 25A Economic Mini Circuit Breaker with CB Ce TUV Certifications
Brand: all-electronics-online.com
SKU: 816904735
Availability: InStock
Rating: 5 (91 reviews)

Price:	US $ 0.62-0.7/Piece
Min Order:	180/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47-63 25A 1P
Thermo-Magnetic Release Characteristic:	C Type
Contact Position Indicator:	No
Brand Type:	Chana or OEM
Sample Charge:	Free
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	TUV

Product Description

1. Electrical Features

Rated current In	1,2,3,4,6,10,16,20,25,32,40,50,63A
Poles	1P,1P+N,2P,3P.3P+N,4P
Rated voltage Ue	240/415V
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	4500A
Energy limiting class	3
Rated impulse withstand voltage(1.2/50) Uimp	4000V
Dielectric test voltage at ind.Freq.for 1 min	2KV
Pollution degree	2
Thermo-magnetic release characteristic	B,C.D

2. Mechanical Features

Electrical life	4000
Mechanical life	10,000
Protection degree	IP20
Reference temperature for setting of thermal element	30ºC
Ambient temperature (with daily average≤35ºC)	-5ºC...+40ºC
Storage temperation	-25ºC...+70ºC

3. Installation

1) Terminal connection type: Cable/Pin-type busbar
2) Terminal size top/bottom for cable:25mm²
3) Terminal size top/bottom for busbar: 25mm²
4) Tighting torque 2.0 N*m
5) Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
6) Connection: From top and bottom

4. Combination with accessories

1) Auxiliary contact: Yes
2) Shunt release: Yes
3) Under voltage release: Yes
4) Alarm contact: Yes

5. Dimensions (mm)

6. Company profiles

7. Shipping:

1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

8. Payment:

1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable

9. Warranty:

1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of good

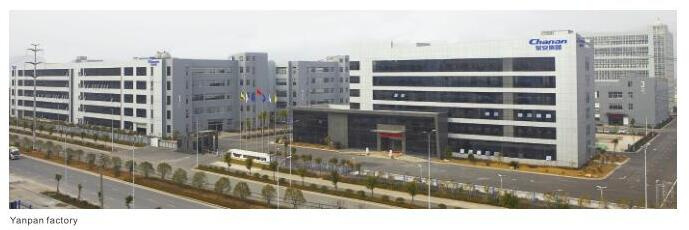

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

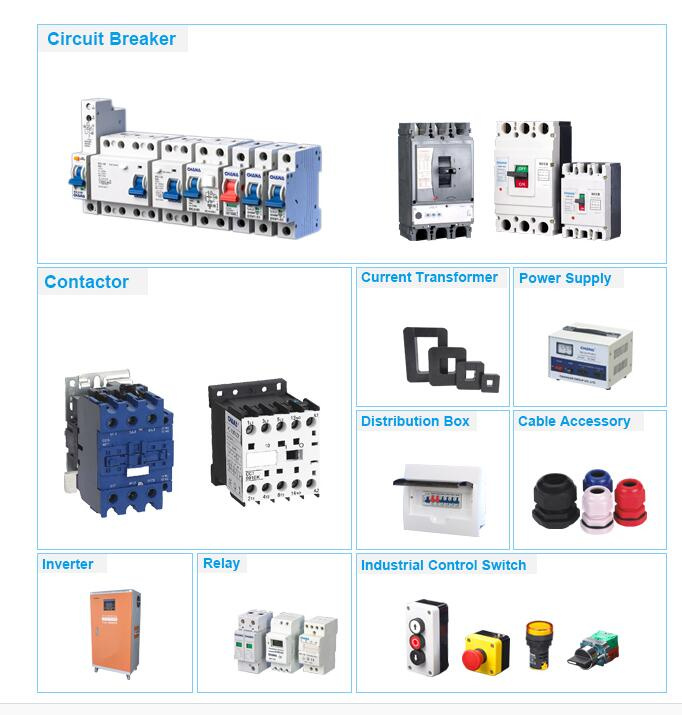

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
