0-25dB Fixed Type Sc Upc APC Metal Housing Fiber Optic Attenuator

Name: 0-25dB Fixed Type Sc Upc APC Metal Housing Fiber Optic Attenuator
Brand: all-electronics-online.com
SKU: 712891462
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	US $ 1.5-10/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC attenuators
Item:	Fiber Optic Attenuators
Fiber Connector Type:	Fiber Optic Attenuators
Wavelength:	1310/1550 Nm
Product Statues:	New Fixed Fiber Optical Attenuators
Attenuation Value:	1~30 dB
Operating Temperature:	-40~75 ºC
MOQ:	50 PCS
Leading Time:	Depends on Quantity
Delivery Ways:	by Air,Sea and Courier
Payment:	T/T,Western Union,Paypal
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

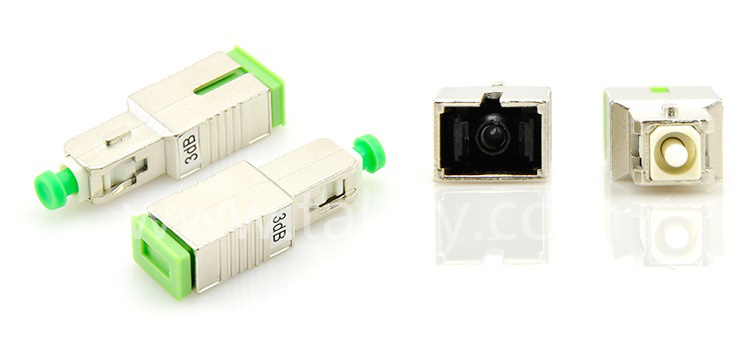

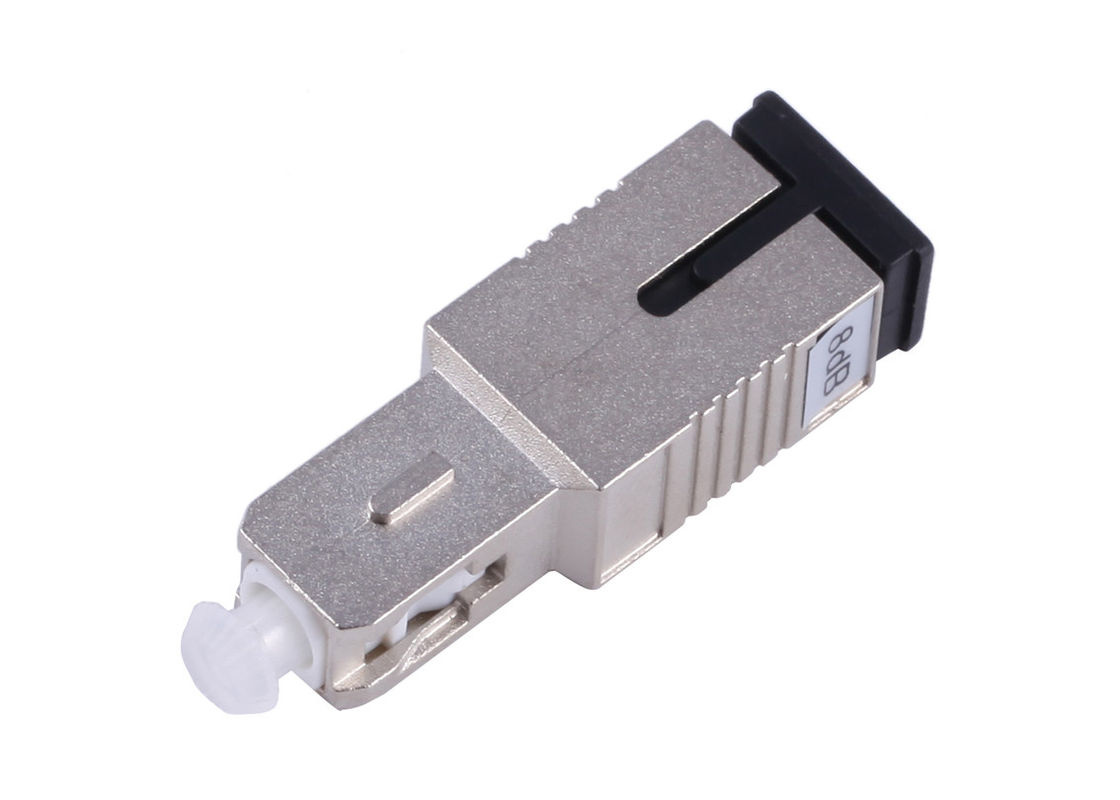

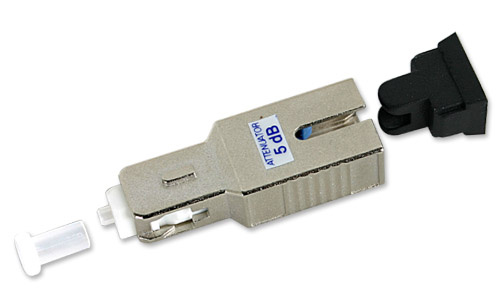

0-25dB Fixed type Sc Upc APC Metal Housing Fiber Optic Attenuator

SC Fiber optic Attenuator is generated by attenuating fiber and provides a controlled attenuation over a very broadband width.The low return loss and high temperature range ensure excellent performance in the nist demanding applications.Fixed type and variable type also available.

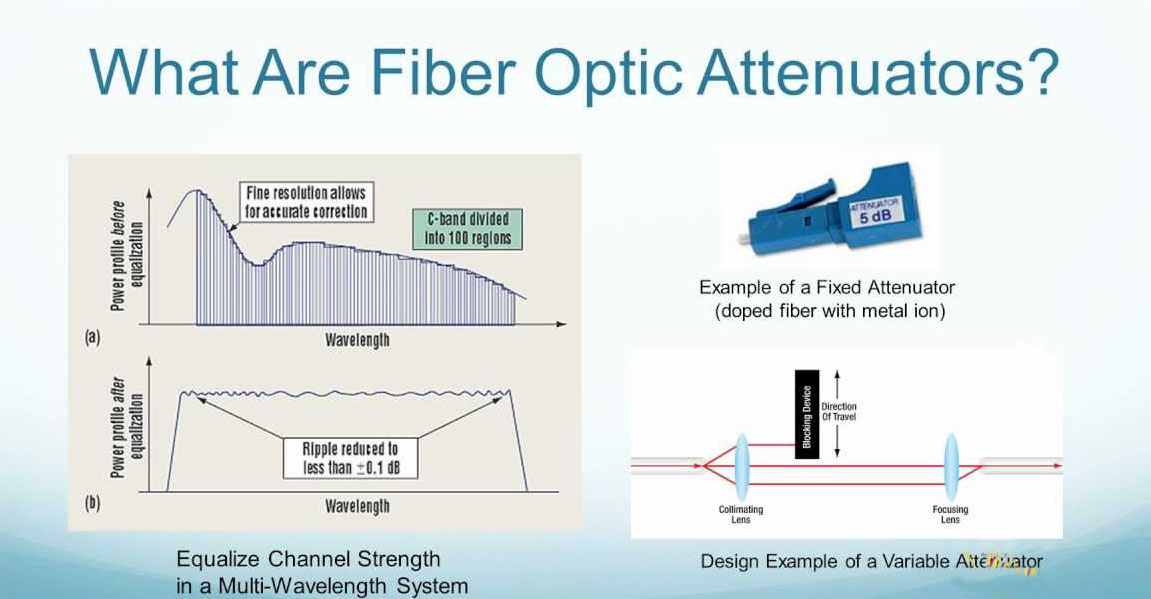

Plug-in fixed attenuator are mainly used for adjusting the optical power to a desired level.By using metal-ion doped optical fibers,the plug-in fixed attenuators convert optical power into heat and the power is then attenuated inside the devices.The structures of the plug-in fixed attenuators are simple and the power-proof and performance stability is superior when compared to our competitor's products that utilize a metal membrane.We offermutilple options including SC,LC,ST,FC,and MU connector types and definable attenuator values from 1dB to 20dB.They are available in single mode ad mutil mode.

Application

Optical line distributing frame
Fiber-optical network system
Hi-speed fiber-optical transmission system
CATV system
Dense Wavelength Division Multiplex (DWDM) system
Optical add-drop multiplexers (OADM)

Specification

Characteristics	Conditions	Value
Characteristics	Conditions	Min	Typical	Max
Attenuation			1~10
Attenuation			10~25
Return Loss	SPC	≥40	≥40
	UPC	≥50	≥55
	APC	≥60	≥65
Attenuation Accuracy	1~10dB		+/-0.5
Attenuation Accuracy	10~25dB		+/-1.0
Operating Wavelength(nm)	1310 and 1550(1600)
Temperature Cycling	-40°C~+75°C

Package and shipping
About package: Carton case and common exporting packages
About Shipping: A. Shipping time is depends on quantity and factory schedule
B. About Shipping ways:By air,sea and courier(DHL,Fedex,Ups,TnT or EMS)
About Payment:Usually paypal for sample,T/T,Western Union is available

Any question about fiber optic attenuator,pls leave me an inquiry or contact me directly.

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
