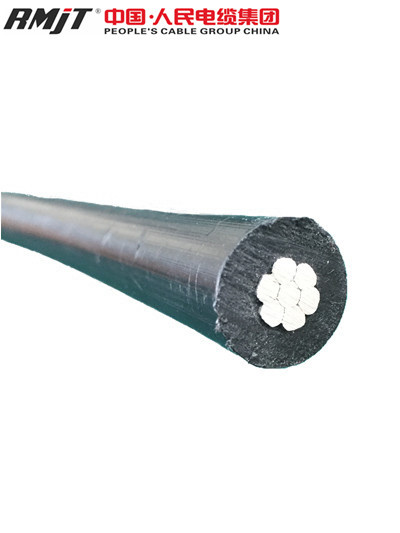

25kv Overhead Cable Covered Aluminium Cable for Electrical Transmission Line
| Price: |
US $ 1-1000/Meter |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
35mm2, 50mm2, 70mm2, 95mm2, 120mm2. |
| Voltage: |
Middle Voltage |
| Structure: |
150mm2,185mm2,240mm2,300mm2 |
| Customized: |
Yes |
| Usage: |
Electrical Transimision |
| Product Name: |
Covered Line Wire-25kv |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
BV |
| Sheath Material: |
XLPE/PVC/LDPE |
| Material Shape: |
Circuler Compact |
| Range Of Application: |
Overhead |
| Brand: |
Rmjt |
Product Description

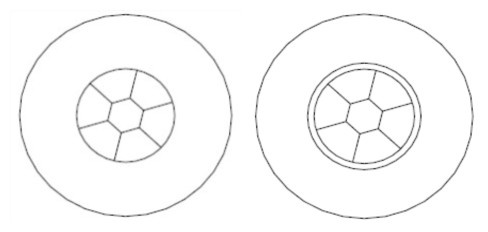

25kv Voltage Covered Aluminium Cables for Overhead Aluminum CableThe XLPE covered aluminum cable- 25kV Voltage Class is constituted by a compact round conductor, composed by aluminum strands, blocked or not, and with a cross-linked polyethylene (XLPE) covered in black or gray color, with special characteristics to be resistant against electric tracking and UV-rays. As XLPE is a thermoses material, it enables operation up to 90°C continuously implying in higher capacity when compared to the thermoplastic materials. The main application for covered aluminum cables is on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. These cables are an excellent technical and economic option for companies all over the world, since they feature such advantages as low manufacturing cost and ease of installation
.| Cross section | No. of wires | Conductor dia. | Overall Diameter | Minimum breaking load | Approx. weight | Max. DC-resistance at 20°C | Ampacity 90°C |
| [mm²] | | [mm] | [mm] | [kgf] | [kg/km] | [Ohm/km] | [A] |
| 35 | 7 | 7.1 | 15.7 | 464 | 235 | 0.868 | 186 |
| 50 | 7 | 8.2 | 16.8 | 663 | 305 | 0.641 | 224 |
| 70 | 19 | 9.7 | 18.3 | 928 | 370 | 0.443 | 280 |
| 95 | 19 | 11.5 | 20.1 | 1259 | 460 | 0.32 | 343 |
| 120 | 19 | 12.9 | 21.5 | 1591 | 560 | 0.253 | 397 |
| 150 | 19 | 14.2 | 22.8 | 1988 | 650 | 0.206 | 450 |
| 185 | 37 | 16.2 | 24.8 | 2452 | 770 | 0.164 | 519 |
| 240 | 37 | 18.4 | 27 | 3182 | 960 | 0.125 | 617 |
| 300 | 37 | 20.7 | 29.3 | 3977 | 1155 | 0.1 | 712 |

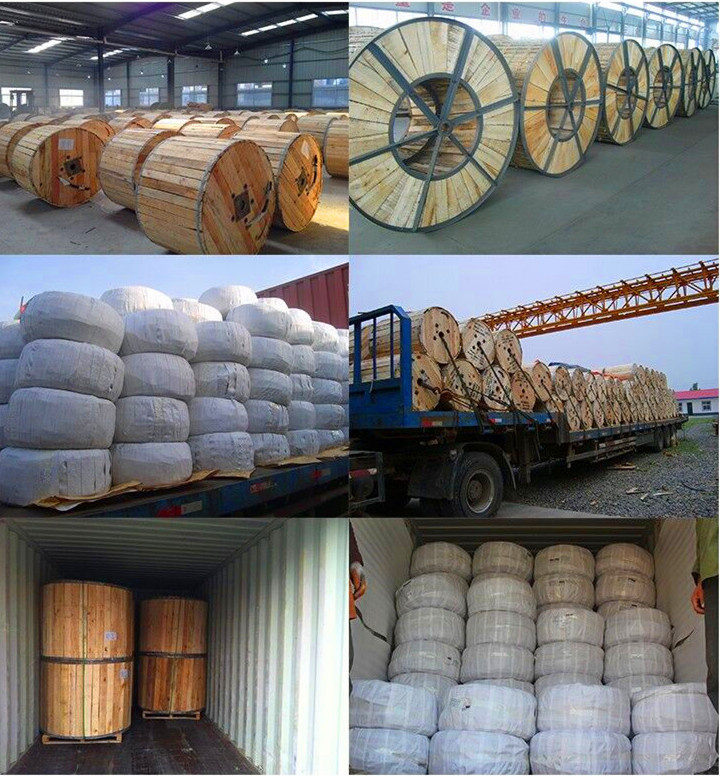

PackingPacking in wooden drums,steel wooden drums or as customer's requirement.
Customer Visit We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!

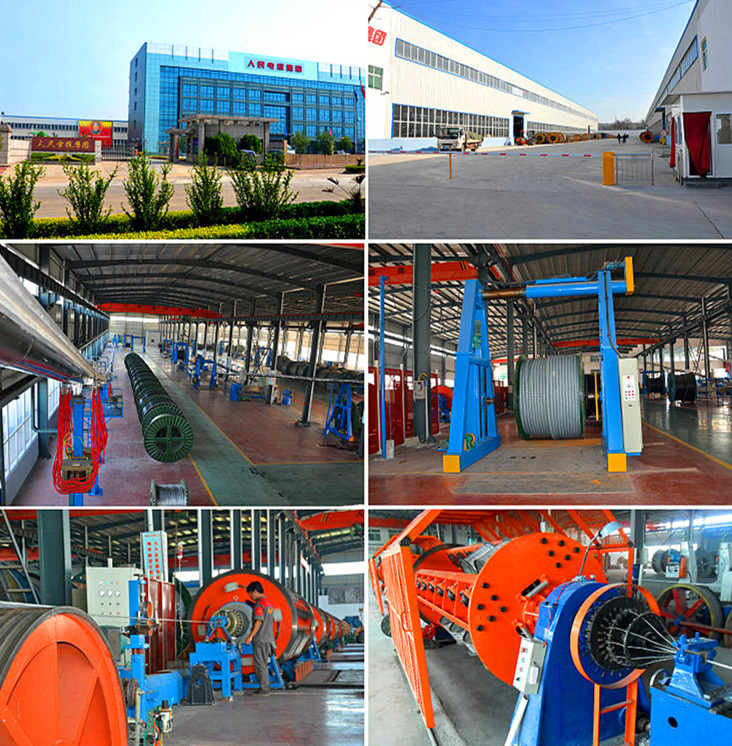

Production process:
CertificateAs first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
About us:People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
ContactsVivian Wong| Project Manager | People's Cable Group
Office Add:Room 1203 Building 4 East International Plaza No.85
Jinshui Road Zhengdong New Area Zhengzhou City Henan Province
Factory Add:No.13 Yongding Road Gongyi, Zhengzhou,China
EML:sales9-at-renmincable-com-cn
T: 86-371-55632835| M: 86-17719852022
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
