FUAN XINRUI MACHINERY CO., LTD. >> 0.25kw-4poles-220V-Ml71 Alumium Housing-Ml Series Single Phase Asynchronous Motor

0.25kw-4poles-220V-Ml71 Alumium Housing-Ml Series Single Phase Asynchronous Motor

0.25kw-4poles-220V-Ml71 Alumium Housing-Ml Series Single Phase Asynchronous Motor
Price: US $ 28.17-29.65/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P
Prod Model: ML 711-4 0.25KW
Working Type: S1
Protection: IP55
Application: Household Appliances
Operating Speed: Constant Speed
Number Of Stator: Single-Phase
Rotor Structure: Squirrel-Cage
Casing Protection: Protection Type
Starting Mode: Capacitor Start& Running
Brand: Xr Motor
Species: Ml Single Phase
Certification: Ce

Product Description

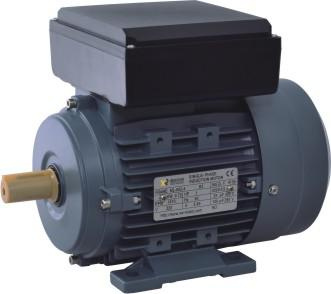

1.Product Presentation(pictures)& Specification:

*ML SERIES SINGLE PHASE ELECTRIC MOTOR
*FRAME:71
*Standard Number:ISO9001 I.E.C.&IEC STANDARD
*POWER:0.25KW
*IM:B3/B5/B14/B34/B35 available
*Voltage&Frequency:220v  50Hz
*PROTECTION CLAEE: IP55/54
*INSULATION CLASS: F
*CENTRIFUGAL SWITCH:
YES
*DUTY: S1
*OPERATING CONDITIONS:AMBIENT TEMP:- 15ºC~40ºC, ABOVE SEA LEVEL≤1000M

2.PACKING&SHIPPING:
*packing:packed in CARTONS then in pallets.(modified according to qty and model)
*lead time:30~60 days according to the qty
*shipping item: mainly by sea
*payment term: T/T, L/C in
currency USD/EUR/CNY

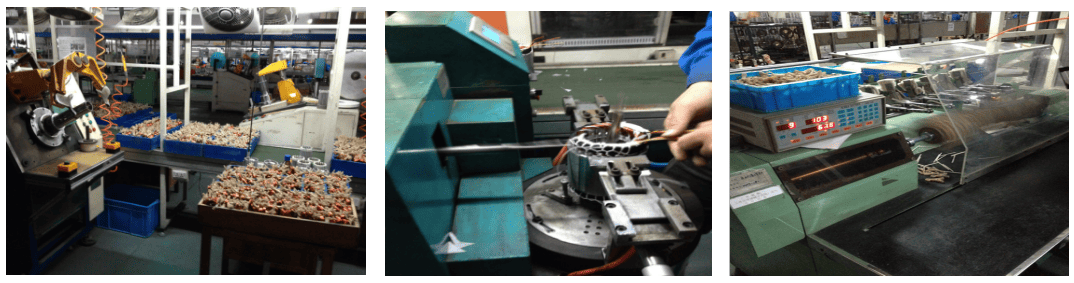

3.XR R&D PRESENTATION:

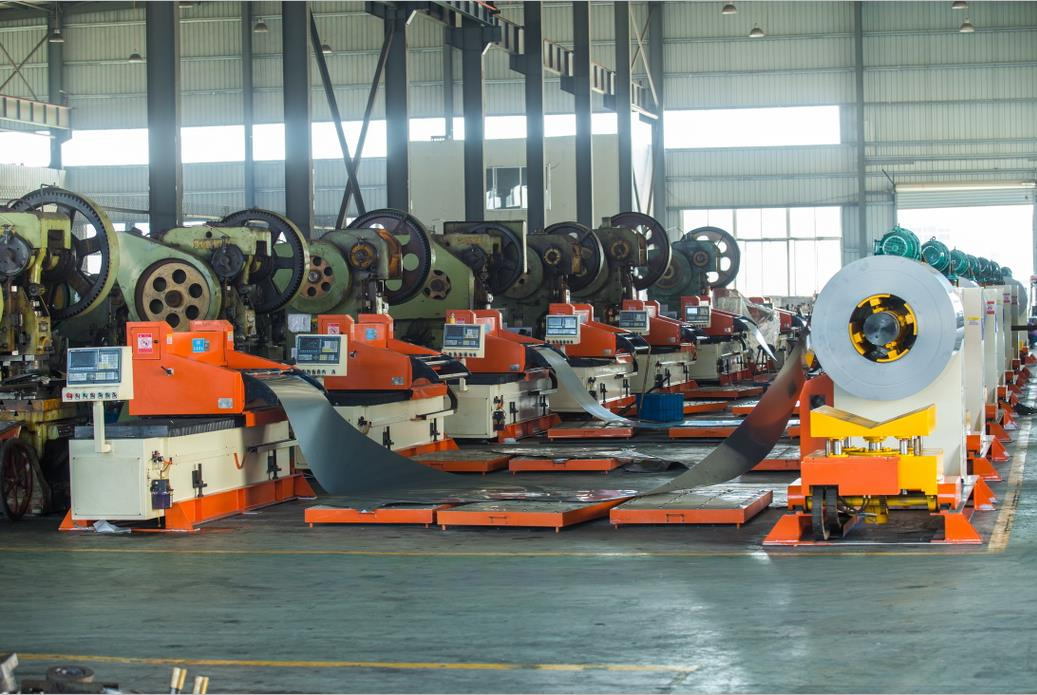

*automatic&semi-automatic progressive punching machine: we can punch lamination all by ourselves

*automatic stator embedding wire and shaping: we have perform automatic embedding and shaping



*advanced powder coating technique: which has stronger adhesiveness than painting.It makes motor appearance even, fine&smooth,also stand up to peeling off.

*Three labs:Frame 56-355 motor are available for type testing operation, which provides a matured technology support platform for high-quality electric motor.



4.Certificates:

more certificates are on requests.


PERFORMANCE DATA
ModeloutputVoltageSpeedCurrent
Eff.
Power factorTstar/TnTmax/TnStart current
KWHP(V)(r.p.m)(A)(%)(cosΦ)
ML711-20.370.522028002.73670.922.31.816
ML712-20.550.7522028003.88700.922.51.821
ML801-20.751.522028005.15720.922.51.830
ML802-21.11.522028007.02750.952.51.840
ML90S-21.5222028009.44760.952.51.855
ML90L-22.23220280013.67770.952.51.880
ML100L-234220280018.2790.952.51.8110
ML711-40.250.3722014001.99620.922.51.812
ML712-40.370.522014002.81650.922.51.816
ML801-40.550.7522014004680.922.51.821
ML802-40.75122014005.22710.922.51.830
ML90S-41.11.522014007.2730.952.51.840
ML90L-41.5222014009.57750.952.51.855
ML100L1-42.23220140013.9760.952.51.880
ML100L2-434220140018.6770.952.51.8110

5.Our Service:
*You inquiry related to our products or price will be replied no more than 48 Hours.
*Well-trained& experienced staff to answer your enquiries in fluent English.
*OEM& ODM, XR can help to design and produce motors according to your customized requirement.
*Protection of your sales area, ideas of design& all your private information.









FUAN XINRUI MACHINERY Co., Ltd., founded in 2010, is a high efficiency motor manufacturer which combines researching, producing and marketing. After 6 years of development, the total area has reached 80, 000 square meters; And the total number of staff reaches more than 400 persons. Company continues to explore innovation, takes variety of advantages, and seizes every opportunity to increase marketing for many countries and areas which including Italy, Germany, UK, Belgium, Russia, Egypt, Iran, Thailand, and Malaysia, and the yearly turnover has exceeded 30 million US dollars. At present, the company has obtained the certificates including ISO 9001: 2008, ISO 14001: 2004, CCC, CE, and so on. Among our products, the IE2, IE3 high efficiency motor has been widely recognized by our overseas customers. By the high-end customer driven the entire product brand and quality improvement, company forms a strong competitiveness in the same industry, and also plays a leading role for the entire industry upstream and downstream chain upgrading. Nowadays, with great enthusiasm and persistence efforts, we are working toward a stable quality and good service oriented enterprise for customer benefits. We are expecting your kind attention, thank you.
