Yueqing Langir Electric Co., Ltd. >> 25mm 2no2nc Latching Push Button Switch with Stainless Steel

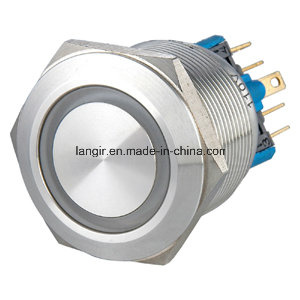

25mm 2no2nc Latching Push Button Switch with Stainless Steel

25mm 2no2nc Latching Push Button Switch with Stainless Steel
Price: US $ 8.69/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: L25-F-Z2-S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Stainless Steel
Function: Latching
Contact: 2no2nc
Usage: Reset Button

Product Description

2NO2NC Latching Push Button switch L25 (Dia.25mm) Stainless steel
Material                 Stainless steel
Function                Latching
Contact                  2NO2NC

TypeL25-FL25-F/RL25-F/D
IlluminationNon-IlluminationRingDot
TerminalPin(2.8*0.5)
Max.Switch RatingIth:5A Ui:250VAC
Contact Ressistance≤50mΩ
Insulation Resistance≥1000mΩ
Dieletric Strengh2000VAC
Operation Temp_20C-+55C
Mechanical Life1000000 Cycles
Electric Life>50000 Cycles
Contact MaterialSliver Alloy
Torque5-14Nm
Operation Pressure3-8N
ProtectionIK10
Material
ActuatorStainless Steel/*Anodized Aluminum
BodyStainless Steel/*Anodized Aluminum
BasePA
Type6V/12V/24V/36V/110V/230V
LifeApprox,40000 hours



Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
