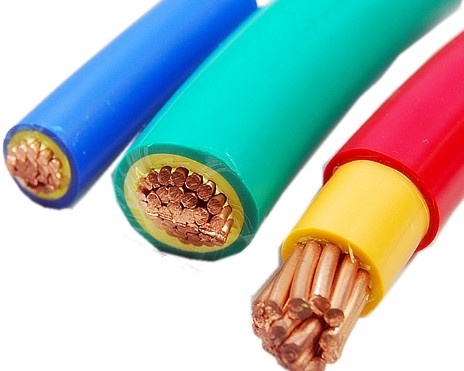

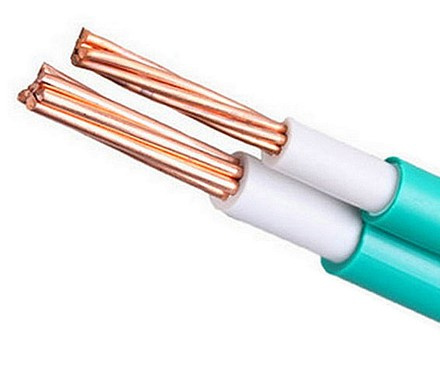

25mm 95mm2 PVC Cable Double Insulation Wire
| Price: |
US $ 0.2-0.4/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
double insulation wire |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Construction |
| Brand: |
Jinshui |
Product Description
Product Description
1. The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.
2. The long term working temperature should lower then 70oC. The working temperature of BV-90 should lower then 90oC. And the laying temperature should higher then 0oC.
3. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.
Type | Name | Laying place and requirement | Long term working Temperature 0C |
60227IEC01 05 BV BLV | Copper conductor PVC insulated wires Aluminum conductor PVC insulated wires | Fixed laid indoors Conduit etc. | 70 |
60227IEC07 (BV-90) | Heat resistant copper conductor PVC insulated wire at 90 0C | Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. | 90 |
BVR | Copper conductor PVC insulated flexible cable | Be for laying permanent place where flexible required. | 70 |
60227IEC10 (BVV) BVV | Copper conductor PVC insulated PVC sheathed round wires | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | 70 |
BLVV | Aluminum conductor PVC insulated PVC sheathed round wires |
BVVB | Copper conductor PVC insulated PVC sheathed flat wires |
BLVVB | Aluminum conductor PVC insulated PVC sheathed flat wires |
60227IEC02(RV) 60227IEC06(RV) | Copper conductor PVC insulated flexible connector wire | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 70 |
60227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector wire |
RVS | Copper conductor PVC insulated flexible twisting connector wire |
60227IEC52(RVV) 60227IEC53 | Copper conductor PVC insulated PVC sheathed round flexible connector wire |
60227IEC08 (RV-90) | Cu conductor heat resistant PVC insulated flexible connector wire at 90 0C | Mainly used at the places where heat resistance is required | 90 |
Sincerely looking forward to your attention, more specification details about this type or others please contact me freely; maybe I'll give you a big surprise.
HENAN JINSHUI WIRE&CABLE Co., Ltd., subordinated to the Jinshui Cable Group Co., Ltd., is an international trading company professional in the research and development, manufacturing and sales of wires and cables.
Jinshui Cable Group, founded in 1983 and formerly known as Zhengzhou 2ND Cable Plant, is the largest cables and wire and electrical products R&D and production base, sales and export base, and CNC logistics distribution base in central China, as well as Top-10 of China in comprehensive cables and wire strength.
The company covers an area of 360000 square meters and the fixed assets of RMB 680 million; Having main production equipment of more than 300 sets (units), measuring and testing equipment of more than 50 sets (units), and reaching the annual production capacity of RMB 5 billion. The company has the most advanced production equipment and a high-quality production management team. Its "Jinshui" brand wire, cable and electrical products are widely used all over the world in real estate, transportation, energy, and power transmission and other fields, and well received by customers.
The company has a full range of products, including various high, medium and low voltage cable wire products from 300V to 220kV and all kinds of electrical products, where the annual production capacity of cables and wire can reach up to 800, 000 km. The company has more than 500 varieties of products in more than 5, 000 kinds of specifications, including high conductive green cable, XLPE insulated cables and wire, PVC insulated cables and wire, rubber insulated cables and wire, aluminum alloy cable, special cable, flame retardant & fireproof cable, mineral insulated cable, PVC cable material, bare wire, oxygen-free copper rod, electrician round aluminum rod and aluminum alloy rod, as well as electrician and electrical supporting products. Those products implement IEC, DIN, BS, GB, ASTM, JIS, and CSA and other standards.
The company took the lead in the same industry to pass the ISO9001 international quality system certification, ISO14001 environmental management system certification and ISO18001 occupational health and safety management system certification, and holds the People's Republic of China import and export qualification certificate and railway material supplier access certificate. The company is a recommended supplier for the national urban and rural power grid transformation, recommended supplier for government procurement, supplier for military material procurement. Those products have passed or obtained China Compulsory Certification (CCC certification), production licenses, mining products safety certification and fire-retardant products permit for flame retardant products and so likes. At present the company's products have been exported to more than 30 countries and regions including Singapore, Malaysia, Bangladesh, Pakistan, Nigeria, Sudan, Somalia, Britain, Australia, the United States and Italy.
Build a century-old enterprise of China, and strive for a world-class brand. The company will continue adhering to the service principle of "quality first, customer oriented" to carry forward the enterprise spirit of pioneering and keeping improving and innovating to provide better products and better services for users and the community!
